High-pressure pump

CDLF + CDH

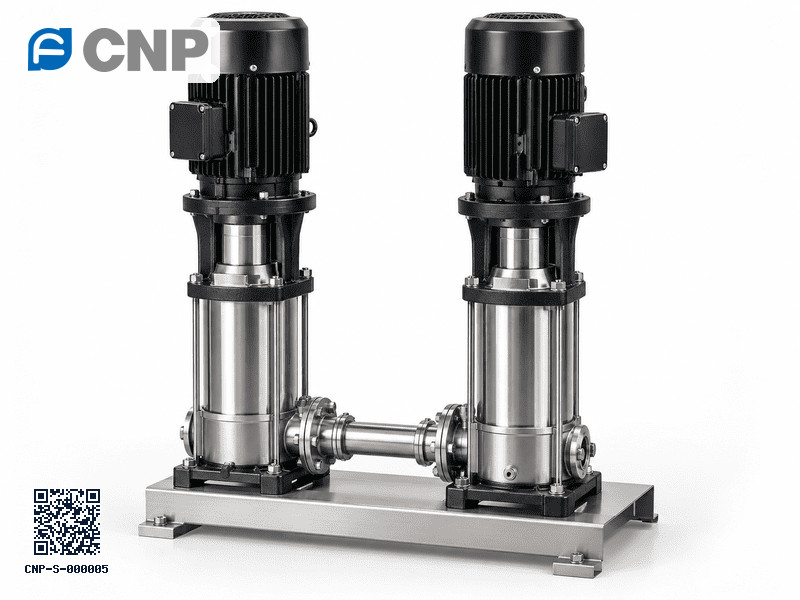

High-pressure vertical multistage pumps, CDLF + CDH

A two-pump arrangement for high pressure: the CDLF pump supplies water and the CDH pump produces the high pressure. Two pumps in series reach up to 48 bar. Typical for reverse-osmosis, ultra-filtration and high-pressure flushing systems.

  • CDLF feeds, CDH boosts: up to 48 bar in series
  • R/O and ultra-filter systems, high-pressure flushing
  • PJE coupling inlet and outlet
  • Standard TEFC IP55 motors
View 221 models Find a pump
CDLF + CDHCNP-S-000005
Flow
0.4–34 m³/h
Head
up to 480 m
Power
2.57–37 kW
Mains
50 Hz / 60 Hz
Models
221
Liquid temp.
-15 to +70 °C (normal type); hot-water type -15 to +120 °C

Sizes

SizeDescriptionRated flowFlow rangeMax pressureMotorConnectionModels
CDLF1 + CDH1-36 Vertical high-pressure set: CDLF water-supply pump + CDH high-pressure pump in series 1 m³/h 0.4–2 m³/h 42 bar 2.57–4.4 kW PJE coupling 40
CDLF2 + CDH2-26 Vertical high-pressure set: CDLF water-supply pump + CDH high-pressure pump in series 2 m³/h 1–3.5 m³/h 46 bar 3.37–6 kW PJE coupling 24
CDLF3 + CDH3-36 Vertical high-pressure set: CDLF water-supply pump + CDH high-pressure pump in series 3 m³/h 1.2–4 m³/h 44 bar 3.37–6 kW PJE coupling 41
CDLF4 + CDH4-22 Vertical high-pressure set: CDLF water-supply pump + CDH high-pressure pump in series 4 m³/h 1.5–7 m³/h 42 bar 4.37–8 kW PJE coupling 24
CDLF8 + CDH8-20 Vertical high-pressure set: CDLF water-supply pump + CDH high-pressure pump in series 8 m³/h 5–12 m³/h 42 bar 8.25–15 kW PJE coupling 23
CDLF12 + CDH12-18 Vertical high-pressure set: CDLF water-supply pump + CDH high-pressure pump in series 12 m³/h 7–16 m³/h 44 bar 12.5–22 kW PJE coupling 24
CDLF15 + CDH15-17 Vertical high-pressure set: CDLF water-supply pump + CDH high-pressure pump in series 15 m³/h 8–22 m³/h 44 bar 16.1–30 kW PJE coupling 24
CDLF20 + CDH20-17 Vertical high-pressure set: CDLF water-supply pump + CDH high-pressure pump in series 20 m³/h 10–28 m³/h 46 bar 19.6–37 kW PJE coupling 21

Models

Filter by duty point, mains frequency or size. Click a model for its performance curve and data.

Model table (PDF)
ModelSizeStagesHzMotor kWFlow m³/hHead mrpmkg
CDLF1-2+CDH1-36 CDLF1+CDH1250 2.57 0.4–2 136–221 290081 CurvePDF
CDLF1-3+CDH1-36 CDLF1+CDH1350 2.57 0.4–2 139–227 290081 CurvePDF
CDLF1-4+CDH1-36 CDLF1+CDH1450 2.57 0.4–2 143–232 290081 CurvePDF
CDLF1-5+CDH1-36 CDLF1+CDH1550 2.57 0.4–2 147–238 290081 CurvePDF
CDLF1-6+CDH1-36 CDLF1+CDH1650 2.57 0.4–2 150–244 290081 CurvePDF
CDLF1-7+CDH1-36 CDLF1+CDH1750 2.57 0.4–2 154–250 290081 CurvePDF
CDLF1-8+CDH1-36 CDLF1+CDH1850 2.75 0.4–2 157–256 290083 CurvePDF
CDLF1-9+CDH1-36 CDLF1+CDH1950 2.75 0.4–2 160–262 290083 CurvePDF
CDLF1-10+CDH1-36 CDLF1+CDH11050 2.75 0.4–2 163–268 290083 CurvePDF
CDLF1-11+CDH1-36 CDLF1+CDH11150 2.75 0.4–2 167–274 290083 CurvePDF
CDLF1-12+CDH1-36 CDLF1+CDH11250 2.95 0.4–2 171–280 290086 CurvePDF
CDLF1-13+CDH1-36 CDLF1+CDH11350 2.95 0.4–2 174–286 290086 CurvePDF
CDLF1-15+CDH1-36 CDLF1+CDH11550 2.95 0.4–2 182–297 290086 CurvePDF
CDLF1-17+CDH1-36 CDLF1+CDH11750 3.3 0.4–2 189–309 290089 CurvePDF
CDLF1-19+CDH1-36 CDLF1+CDH11950 3.3 0.4–2 196–321 290089 CurvePDF
CDLF1-21+CDH1-36 CDLF1+CDH12150 3.3 0.4–2 202–332 290091 CurvePDF
CDLF1-23+CDH1-36 CDLF1+CDH12350 3.3 0.4–2 209–345 290094 CurvePDF
CDLF1-25+CDH1-36 CDLF1+CDH12550 3.7 0.4–2 216–357 2900101 CurvePDF
CDLF1-27+CDH1-36 CDLF1+CDH12750 3.7 0.4–2 222–369 2900101 CurvePDF
CDLF1-30+CDH1-36 CDLF1+CDH13050 3.7 0.4–2 233–386 2900101 CurvePDF
CDLF1-33+CDH1-36 CDLF1+CDH13350 4.4 0.4–2 245–404 2900106 CurvePDF
CDLF1-36+CDH1-36 CDLF1+CDH13650 4.4 0.4–2 257–422 2900106 CurvePDF
CDLF2-2+CDH2-26 CDLF2+CDH2250 3.37 1–3.5 116–245 290086 CurvePDF
CDLF2-3+CDH2-26 CDLF2+CDH2350 3.37 1–3.5 120–254 290086 CurvePDF
CDLF2-4+CDH2-26 CDLF2+CDH2450 3.55 1–3.5 124–263 290086 CurvePDF
CDLF2-5+CDH2-26 CDLF2+CDH2550 3.55 1–3.5 128–272 290086 CurvePDF
CDLF2-6+CDH2-26 CDLF2+CDH2650 3.75 1–3.5 132–280 290091 CurvePDF
CDLF2-7+CDH2-26 CDLF2+CDH2750 3.75 1–3.5 136–290 290091 CurvePDF
CDLF2-9+CDH2-26 CDLF2+CDH2950 4.1 1–3.5 145–307 290096 CurvePDF
CDLF2-11+CDH2-26 CDLF2+CDH21150 4.1 1–3.5 152–325 290096 CurvePDF
CDLF2-13+CDH2-26 CDLF2+CDH21350 4.5 1–3.5 160–343 2900101 CurvePDF
CDLF2-15+CDH2-26 CDLF2+CDH21550 4.5 1–3.5 168–361 2900101 CurvePDF
CDLF2-18+CDH2-26 CDLF2+CDH21850 5.2 1–3.5 184–388 2900106 CurvePDF
CDLF2-22+CDH2-26 CDLF2+CDH22250 5.2 1–3.5 198–424 2900111 CurvePDF
CDLF2-26+CDH2-26 CDLF2+CDH22650 6 1–3.5 218–459 2900116 CurvePDF
CDLF3-2+CDH3-36 CDLF3+CDH3250 3.37 1.2–4 111–226.5 290086 CurvePDF
CDLF3-3+CDH3-36 CDLF3+CDH3350 3.37 1.2–4 114–233 290086 CurvePDF
CDLF3-4+CDH3-36 CDLF3+CDH3450 3.37 1.2–4 117–239 290086 CurvePDF
CDLF3-5+CDH3-36 CDLF3+CDH3550 3.37 1.2–4 121–245 290086 CurvePDF
CDLF3-6+CDH3-36 CDLF3+CDH3650 3.55 1.2–4 124–250 290088 CurvePDF
CDLF3-7+CDH3-36 CDLF3+CDH3750 3.55 1.2–4 127–257 290088 CurvePDF
CDLF3-8+CDH3-36 CDLF3+CDH3850 3.75 1.2–4 130–263 290088 CurvePDF
CDLF3-9+CDH3-36 CDLF3+CDH3950 3.75 1.2–4 133–269 290088 CurvePDF
CDLF3-10+CDH3-36 CDLF3+CDH31050 3.75 1.2–4 136–275 290088 CurvePDF
CDLF3-11+CDH3-36 CDLF3+CDH31150 4.1 1.2–4 139–281 290091 CurvePDF
CDLF3-12+CDH3-36 CDLF3+CDH31250 4.1 1.2–4 142–287 290091 CurvePDF
CDLF3-13+CDH3-36 CDLF3+CDH31350 4.1 1.2–4 145–292 290091 CurvePDF
CDLF3-15+CDH3-36 CDLF3+CDH31550 4.1 1.2–4 151–304 290091 CurvePDF
CDLF3-17+CDH3-36 CDLF3+CDH31750 4.5 1.2–4 157–317 290096 CurvePDF
CDLF3-19+CDH3-36 CDLF3+CDH31950 4.5 1.2–4 163–329 2900101 CurvePDF
CDLF3-21+CDH3-36 CDLF3+CDH32150 5.2 1.2–4 169–342 2900101 CurvePDF
CDLF3-23+CDH3-36 CDLF3+CDH32350 5.2 1.2–4 175–354 2900106 CurvePDF
CDLF3-25+CDH3-36 CDLF3+CDH32550 5.2 1.2–4 181–365 2900106 CurvePDF
CDLF3-27+CDH3-36 CDLF3+CDH32750 5.2 1.2–4 187–378 2900106 CurvePDF
CDLF3-29+CDH3-36 CDLF3+CDH32950 5.2 1.2–4 193–389 2900106 CurvePDF
CDLF3-31+CDH3-36 CDLF3+CDH33150 6 1.2–4 199–401 2900111 CurvePDF
CDLF3-33+CDH3-36 CDLF3+CDH33350 6 1.2–4 205–413 2900116 CurvePDF
CDLF3-36+CDH3-36 CDLF3+CDH33650 6 1.2–4 214–432 2900116 CurvePDF
CDLF4-2+CDH4-22 CDLF4+CDH4250 4.37 1.5–7 111–221 290086 CurvePDF
CDLF4-3+CDH4-22 CDLF4+CDH4350 4.55 1.5–7 116–230 290086 CurvePDF
CDLF4-4+CDH4-22 CDLF4+CDH4450 4.75 1.5–7 122–240 290086 CurvePDF
CDLF4-5+CDH4-22 CDLF4+CDH4550 5.1 1.5–7 126–249 290091 CurvePDF
CDLF4-6+CDH4-22 CDLF4+CDH4650 5.1 1.5–7 131–258 290091 CurvePDF
CDLF4-7+CDH4-22 CDLF4+CDH4750 5.5 1.5–7 136–268 290096 CurvePDF
CDLF4-8+CDH4-22 CDLF4+CDH4850 5.5 1.5–7 141–276 290096 CurvePDF
CDLF4-10+CDH4-22 CDLF4+CDH41050 6.2 1.5–7 151–298 290096 CurvePDF
CDLF4-12+CDH4-22 CDLF4+CDH41250 6.2 1.5–7 161–316 2900101 CurvePDF
CDLF4-14+CDH4-22 CDLF4+CDH41450 7 1.5–7 171–338 2900101 CurvePDF
CDLF4-16+CDH4-22 CDLF4+CDH41650 7 1.5–7 181–354 2900106 CurvePDF
CDLF4-19+CDH4-22 CDLF4+CDH41950 8 1.5–7 196–385 2900111 CurvePDF
CDLF4-22+CDH4-22 CDLF4+CDH42250 8 1.5–7 211–413 2900116 CurvePDF
CDLF8-2/1+CDH8-20 CDLF8+CDH8250 8.25 5–12 134–211 2900136 CurvePDF
CDLF8-2+CDH8-20 CDLF8+CDH8250 8.25 5–12 141–221 2900136 CurvePDF
CDLF8-3+CDH8-20 CDLF8+CDH8350 8.6 5–12 147–231 2900146 CurvePDF
CDLF8-4+CDH8-20 CDLF8+CDH8450 9 5–12 154–242 2900146 CurvePDF
CDLF8-5+CDH8-20 CDLF8+CDH8550 9.7 5–12 160–253 2900156 CurvePDF
CDLF8-6+CDH8-20 CDLF8+CDH8650 9.7 5–12 167–263 2900156 CurvePDF
CDLF8-8+CDH8-20 CDLF8+CDH8850 10.5 5–12 180–284 2900161 CurvePDF
CDLF8-10+CDH8-20 CDLF8+CDH81050 11.5 5–12 193–305 2900171 CurvePDF
CDLF8-12+CDH8-20 CDLF8+CDH81250 11.5 5–12 206–325 2900171 CurvePDF
CDLF8-14+CDH8-20 CDLF8+CDH81450 13 5–12 220–346 2900196 CurvePDF
CDLF8-16+CDH8-20 CDLF8+CDH81650 13 5–12 234–367 2900196 CurvePDF
CDLF8-18+CDH8-20 CDLF8+CDH81850 15 5–12 248–388 2900206 CurvePDF
CDLF8-20+CDH8-20 CDLF8+CDH82050 15 5–12 263–409 2900206 CurvePDF
CDLF12-2+CDH12-18 CDLF12+CDH12250 12.5 7–16 141–237.5 2900210 CurvePDF
CDLF12-3+CDH12-18 CDLF12+CDH12350 13.2 7–16 148–249.5 2900213 CurvePDF
CDLF12-4+CDH12-18 CDLF12+CDH12450 14 7–16 155–261 2900220 CurvePDF
CDLF12-5+CDH12-18 CDLF12+CDH12550 14 7–16 162–273.5 2900221 CurvePDF
CDLF12-6+CDH12-18 CDLF12+CDH12650 15 7–16 169–285.5 2900231 CurvePDF
CDLF12-7+CDH12-18 CDLF12+CDH12750 16.5 7–16 176–297.5 2900249 CurvePDF
CDLF12-8+CDH12-18 CDLF12+CDH12850 16.5 7–16 183–309.5 2900249 CurvePDF
CDLF12-9+CDH12-18 CDLF12+CDH12950 16.5 7–16 191–322 2900251 CurvePDF
CDLF12-10+CDH12-18 CDLF12+CDH121050 18.5 7–16 199–334 2900251 CurvePDF
CDLF12-12+CDH12-18 CDLF12+CDH121250 18.5 7–16 213–357.5 2900253 CurvePDF
CDLF12-14+CDH12-18 CDLF12+CDH121450 22 7–16 227–382 2900324 CurvePDF
CDLF12-16+CDH12-18 CDLF12+CDH121650 22 7–16 242–406.5 2900324 CurvePDF
CDLF12-18+CDH12-18 CDLF12+CDH121850 22 7–16 257–431 2900326 CurvePDF
CDLF15-1+CDH15-17 CDLF15+CDH15150 16.1 8–22 152.5–233 2900229 CurvePDF
CDLF15-2+CDH15-17 CDLF15+CDH15250 17.2 8–22 162–246 2900238 CurvePDF
CDLF15-3+CDH15-17 CDLF15+CDH15350 18 8–22 171–260 2900247 CurvePDF
CDLF15-4+CDH15-17 CDLF15+CDH15450 19 8–22 179–273 2900256 CurvePDF
CDLF15-5+CDH15-17 CDLF15+CDH15550 19 8–22 188–286 2900258 CurvePDF
CDLF15-6+CDH15-17 CDLF15+CDH15650 20.5 8–22 197–299 2900274 CurvePDF
CDLF15-7+CDH15-17 CDLF15+CDH15750 20.5 8–22 206–313 2900276 CurvePDF
CDLF15-8+CDH15-17 CDLF15+CDH15850 22.5 8–22 215–327 2900282 CurvePDF
CDLF15-9+CDH15-17 CDLF15+CDH15950 22.5 8–22 225–341 2900284 CurvePDF
CDLF15-10+CDH15-17 CDLF15+CDH151050 26 8–22 234–354 2900353 CurvePDF
CDLF15-12+CDH15-17 CDLF15+CDH151250 26 8–22 252–381 2900357 CurvePDF
CDLF15-14+CDH15-17 CDLF15+CDH151450 26 8–22 270–408 2900361 CurvePDF
CDLF15-17+CDH15-17 CDLF15+CDH151750 30 8–22 297–448 2900374 CurvePDF
CDLF20-1+CDH20-17 CDLF20+CDH20150 19.6 10–28 146–241.5 2900244 CurvePDF
CDLF20-2+CDH20-17 CDLF20+CDH20250 20.7 10–28 155–255 2900255 CurvePDF
CDLF20-3+CDH20-17 CDLF20+CDH20350 22.5 10–28 164–268 2900269 CurvePDF
CDLF20-4+CDH20-17 CDLF20+CDH20450 24 10–28 173–282 2900284 CurvePDF
CDLF20-5+CDH20-17 CDLF20+CDH20550 24 10–28 180–295 2900286 CurvePDF
CDLF20-6+CDH20-17 CDLF20+CDH20650 26 10–28 189–309 2900294 CurvePDF
CDLF20-7+CDH20-17 CDLF20+CDH20750 26 10–28 198–323 2900296 CurvePDF
CDLF20-8+CDH20-17 CDLF20+CDH20850 29.5 10–28 207–337 2900352 CurvePDF
CDLF20-10+CDH20-17 CDLF20+CDH201050 29.5 10–28 225–364 2900357 CurvePDF
CDLF20-12+CDH20-17 CDLF20+CDH201250 33.5 10–28 242–392 2900372 CurvePDF
CDLF20-14+CDH20-17 CDLF20+CDH201450 33.5 10–28 259–420 2900377 CurvePDF
CDLF20-17+CDH20-17 CDLF20+CDH201750 37 10–28 285–462 2900402 CurvePDF
CDLF1-2+CDH1-25 CDLF1+CDH1260 3.37 0.6–2 173–227.5 350081 CurvePDF
CDLF1-3+CDH1-25 CDLF1+CDH1360 3.37 0.6–2 180–236.5 350081 CurvePDF
CDLF1-4+CDH1-25 CDLF1+CDH1460 3.37 0.6–2 186–245 350081 CurvePDF
CDLF1-5+CDH1-25 CDLF1+CDH1560 3.55 0.6–2 193–253 350083 CurvePDF
CDLF1-6+CDH1-25 CDLF1+CDH1660 3.55 0.6–2 199–262 350083 CurvePDF
CDLF1-7+CDH1-25 CDLF1+CDH1760 3.75 0.6–2 206–270 350086 CurvePDF
CDLF1-8+CDH1-25 CDLF1+CDH1860 3.75 0.6–2 213–278 350086 CurvePDF
CDLF1-9+CDH1-25 CDLF1+CDH1960 3.75 0.6–2 220–286 350086 CurvePDF
CDLF1-10+CDH1-25 CDLF1+CDH11060 4.1 0.6–2 227–295 350089 CurvePDF
CDLF1-11+CDH1-25 CDLF1+CDH11160 4.1 0.6–2 233–305 350089 CurvePDF
CDLF1-12+CDH1-25 CDLF1+CDH11260 4.1 0.6–2 239–313 350089 CurvePDF
CDLF1-13+CDH1-25 CDLF1+CDH11360 4.1 0.6–2 246–322 350089 CurvePDF
CDLF1-15+CDH1-25 CDLF1+CDH11560 4.5 0.6–2 259–337 350091 CurvePDF
CDLF1-17+CDH1-25 CDLF1+CDH11760 4.5 0.6–2 272–354 350091 CurvePDF
CDLF1-19+CDH1-25 CDLF1+CDH11960 5.2 0.6–2 284–370 350096 CurvePDF
CDLF1-21+CDH1-25 CDLF1+CDH12160 5.2 0.6–2 298–387 350096 CurvePDF
CDLF1-23+CDH1-25 CDLF1+CDH12360 5.2 0.6–2 312–403 3500101 CurvePDF
CDLF1-25+CDH1-25 CDLF1+CDH12560 6 0.6–2 324–420 3500106 CurvePDF
CDLF2-2+CDH2-18 CDLF2+CDH2260 4.55 1–4.5 103–257 350086 CurvePDF
CDLF2-3+CDH2-18 CDLF2+CDH2360 4.75 1–4.5 109–270 350086 CurvePDF
CDLF2-4+CDH2-18 CDLF2+CDH2460 5.1 1–4.5 114–283 350091 CurvePDF
CDLF2-5+CDH2-18 CDLF2+CDH2560 5.1 1–4.5 119–296 350091 CurvePDF
CDLF2-6+CDH2-18 CDLF2+CDH2660 5.1 1–4.5 124–309 350091 CurvePDF
CDLF2-7+CDH2-18 CDLF2+CDH2760 5.5 1–4.5 129–322 350096 CurvePDF
CDLF2-9+CDH2-18 CDLF2+CDH2960 6.2 1–4.5 139–348 3500101 CurvePDF
CDLF2-11+CDH2-18 CDLF2+CDH21160 6.2 1–4.5 150–374 3500101 CurvePDF
CDLF2-13+CDH2-18 CDLF2+CDH21360 7 1–4.5 160–402 3500109 CurvePDF
CDLF2-15+CDH2-18 CDLF2+CDH21560 7 1–4.5 171–426 3500111 CurvePDF
CDLF2-18+CDH2-18 CDLF2+CDH21860 8 1–4.5 188–465 3500116 CurvePDF
CDLF3-2+CDH3-25 CDLF3+CDH3260 4.37 1.5–5 116–230.5 350086 CurvePDF
CDLF3-3+CDH3-25 CDLF3+CDH3360 4.55 1.5–5 120–239.5 350086 CurvePDF
CDLF3-4+CDH3-25 CDLF3+CDH3460 4.55 1.5–5 125–248 350086 CurvePDF
CDLF3-5+CDH3-25 CDLF3+CDH3560 4.75 1.5–5 131–257 350088 CurvePDF
CDLF3-6+CDH3-25 CDLF3+CDH3660 5.1 1.5–5 135–264 350091 CurvePDF
CDLF3-7+CDH3-25 CDLF3+CDH3760 5.1 1.5–5 139–274 350091 CurvePDF
CDLF3-8+CDH3-25 CDLF3+CDH3860 5.1 1.5–5 143–283 350091 CurvePDF
CDLF3-9+CDH3-25 CDLF3+CDH3960 5.5 1.5–5 148–291 350096 CurvePDF
CDLF3-10+CDH3-25 CDLF3+CDH31060 5.5 1.5–5 152–300 350096 CurvePDF
CDLF3-11+CDH3-25 CDLF3+CDH31160 5.5 1.5–5 156–309 350096 CurvePDF
CDLF3-12+CDH3-25 CDLF3+CDH31260 6.2 1.5–5 160–317 3500101 CurvePDF
CDLF3-13+CDH3-25 CDLF3+CDH31360 6.2 1.5–5 165–325 3500101 CurvePDF
CDLF3-15+CDH3-25 CDLF3+CDH31560 6.2 1.5–5 173–342 3500101 CurvePDF
CDLF3-17+CDH3-25 CDLF3+CDH31760 6.2 1.5–5 182–360 3500101 CurvePDF
CDLF3-19+CDH3-25 CDLF3+CDH31960 7 1.5–5 190–378 3500106 CurvePDF
CDLF3-21+CDH3-25 CDLF3+CDH32160 7 1.5–5 199–396 3500106 CurvePDF
CDLF3-23+CDH3-25 CDLF3+CDH32360 7 1.5–5 206–413 3500106 CurvePDF
CDLF3-25+CDH3-25 CDLF3+CDH32560 8 1.5–5 216–430 3500116 CurvePDF
CDLF4-2+CDH4-16 CDLF4+CDH4260 6.25 2.5–8 136–233 3500106 CurvePDF
CDLF4-3+CDH4-16 CDLF4+CDH4360 6.6 2.5–8 143–246 3500106 CurvePDF
CDLF4-4+CDH4-16 CDLF4+CDH4460 7 2.5–8 153–259 3500111 CurvePDF
CDLF4-5+CDH4-16 CDLF4+CDH4560 7.7 2.5–8 161–272 3500116 CurvePDF
CDLF4-6+CDH4-16 CDLF4+CDH4660 7.7 2.5–8 169–285 3500121 CurvePDF
CDLF4-7+CDH4-16 CDLF4+CDH4760 8.5 2.5–8 177–299 3500126 CurvePDF
CDLF4-8+CDH4-16 CDLF4+CDH4860 8.5 2.5–8 185–311 3500126 CurvePDF
CDLF4-10+CDH4-16 CDLF4+CDH41060 9.5 2.5–8 202–337 3500131 CurvePDF
CDLF4-12+CDH4-16 CDLF4+CDH41260 9.5 2.5–8 218–363 3500131 CurvePDF
CDLF4-14+CDH4-16 CDLF4+CDH41460 11 2.5–8 234–389 3500156 CurvePDF
CDLF4-16+CDH4-16 CDLF4+CDH41660 11 2.5–8 250–414 3500156 CurvePDF
CDLF8-2/1+CDH8-14 CDLF8+CDH8260 11.75 7–14 142–211 3500181 CurvePDF
CDLF8-2+CDH8-14 CDLF8+CDH8260 12.5 7–14 151–225 3500186 CurvePDF
CDLF8-3+CDH8-14 CDLF8+CDH8360 13.2 7–14 161–239 3500191 CurvePDF
CDLF8-4+CDH8-14 CDLF8+CDH8460 14 7–14 171–253 3500196 CurvePDF
CDLF8-5+CDH8-14 CDLF8+CDH8560 14 7–14 180–268 3500201 CurvePDF
CDLF8-6+CDH8-14 CDLF8+CDH8660 15 7–14 190–283 3500206 CurvePDF
CDLF8-8+CDH8-14 CDLF8+CDH8860 16.5 7–14 208–313 3500231 CurvePDF
CDLF8-10+CDH8-14 CDLF8+CDH81060 18.5 7–14 228–343 3500241 CurvePDF
CDLF8-12+CDH8-14 CDLF8+CDH81260 18.5 7–14 248–371 3500241 CurvePDF
CDLF8-14+CDH8-14 CDLF8+CDH81460 22 7–14 268–400 3500286 CurvePDF
CDLF12-1+CDH12-14 CDLF12+CDH12160 16.1 7–19 153.5–266 3500214 CurvePDF
CDLF12-2+CDH12-14 CDLF12+CDH12260 17.2 7–19 165.5–284 3500222 CurvePDF
CDLF12-3+CDH12-14 CDLF12+CDH12360 19 7–19 176–301.5 3500239 CurvePDF
CDLF12-4+CDH12-14 CDLF12+CDH12460 20.5 7–19 186–319 3500256 CurvePDF
CDLF12-5+CDH12-14 CDLF12+CDH12560 20.5 7–19 196–337 3500256 CurvePDF
CDLF12-6+CDH12-14 CDLF12+CDH12660 22.5 7–19 206–356 3500259 CurvePDF
CDLF12-7+CDH12-14 CDLF12+CDH12760 22.5 7–19 216–373 3500259 CurvePDF
CDLF12-8+CDH12-14 CDLF12+CDH12860 26 7–19 227–390 3500329 CurvePDF
CDLF12-10+CDH12-14 CDLF12+CDH121060 26 7–19 249–427 3500331 CurvePDF
CDLF12-12+CDH12-14 CDLF12+CDH121260 30 7–19 270–462 3500344 CurvePDF
CDLF12-13+CDH12-14 CDLF12+CDH121360 30 7–19 280–480 3500345 CurvePDF
CDLF15-1+CDH15-12 CDLF15+CDH15160 20 10–26 165.5–247.5 3500248 CurvePDF
CDLF15-2+CDH15-12 CDLF15+CDH15260 21.5 10–26 180–266.5 3500258 CurvePDF
CDLF15-3+CDH15-12 CDLF15+CDH15360 22.5 10–26 193–286 3500267 CurvePDF
CDLF15-4+CDH15-12 CDLF15+CDH15460 24 10–26 205–305 3500280 CurvePDF
CDLF15-5+CDH15-12 CDLF15+CDH15560 26 10–26 218–324 3500290 CurvePDF
CDLF15-6+CDH15-12 CDLF15+CDH15660 29.5 10–26 232–343 3500359 CurvePDF
CDLF15-7+CDH15-12 CDLF15+CDH15760 29.5 10–26 246–364 3500361 CurvePDF
CDLF15-8+CDH15-12 CDLF15+CDH15860 29.5 10–26 259–384 3500362 CurvePDF
CDLF15-9+CDH15-12 CDLF15+CDH15960 29.5 10–26 274–404 3500374 CurvePDF
CDLF15-10+CDH15-12 CDLF15+CDH151060 33.5 10–26 287–423 3500376 CurvePDF
CDLF15-12+CDH15-12 CDLF15+CDH151260 37 10–26 314–462 3500400 CurvePDF
CDLF20-1+CDH20-10 CDLF20+CDH20160 20.7 12–34 127.5–215 3500249 CurvePDF
CDLF20-2+CDH20-10 CDLF20+CDH20260 22.5 12–34 140–234 3500259 CurvePDF
CDLF20-3+CDH20-10 CDLF20+CDH20360 24 12–34 152–254 3500279 CurvePDF
CDLF20-4+CDH20-10 CDLF20+CDH20460 26 12–34 164–274 3500289 CurvePDF
CDLF20-5+CDH20-10 CDLF20+CDH20560 29.5 12–34 176–294 3500349 CurvePDF
CDLF20-6+CDH20-10 CDLF20+CDH20660 29.5 12–34 189–314 3500354 CurvePDF
CDLF20-7+CDH20-10 CDLF20+CDH20760 33.5 12–34 202–334 3500369 CurvePDF
CDLF20-8+CDH20-10 CDLF20+CDH20860 33.5 12–34 215–354 3500369 CurvePDF
CDLF20-10+CDH20-10 CDLF20+CDH201060 37 12–34 241–394 3500392 CurvePDF

Performance range

Every model of the CDLF + CDH range on one chart: each line is the performance curve of one model. Click a line or dot to open that model with its full data.

  • CDLF1+CDH1
  • CDLF2+CDH2
  • CDLF3+CDH3
  • CDLF4+CDH4
  • CDLF8+CDH8
  • CDLF12+CDH12
  • CDLF15+CDH15
  • CDLF20+CDH20
0.51251020200Flow (m³/h)Head (m)CDLF1-2+CDH1-36 · 50 HzCDLF1-3+CDH1-36 · 50 HzCDLF1-4+CDH1-36 · 50 HzCDLF1-5+CDH1-36 · 50 HzCDLF1-6+CDH1-36 · 50 HzCDLF1-7+CDH1-36 · 50 HzCDLF1-8+CDH1-36 · 50 HzCDLF1-9+CDH1-36 · 50 HzCDLF1-10+CDH1-36 · 50 HzCDLF1-11+CDH1-36 · 50 HzCDLF1-12+CDH1-36 · 50 HzCDLF1-13+CDH1-36 · 50 HzCDLF1-15+CDH1-36 · 50 HzCDLF1-17+CDH1-36 · 50 HzCDLF1-19+CDH1-36 · 50 HzCDLF1-21+CDH1-36 · 50 HzCDLF1-23+CDH1-36 · 50 HzCDLF1-25+CDH1-36 · 50 HzCDLF1-27+CDH1-36 · 50 HzCDLF1-30+CDH1-36 · 50 HzCDLF1-33+CDH1-36 · 50 HzCDLF1-36+CDH1-36 · 50 HzCDLF2-2+CDH2-26 · 50 HzCDLF2-3+CDH2-26 · 50 HzCDLF2-4+CDH2-26 · 50 HzCDLF2-5+CDH2-26 · 50 HzCDLF2-6+CDH2-26 · 50 HzCDLF2-7+CDH2-26 · 50 HzCDLF2-9+CDH2-26 · 50 HzCDLF2-11+CDH2-26 · 50 HzCDLF2-13+CDH2-26 · 50 HzCDLF2-15+CDH2-26 · 50 HzCDLF2-18+CDH2-26 · 50 HzCDLF2-22+CDH2-26 · 50 HzCDLF2-26+CDH2-26 · 50 HzCDLF3-2+CDH3-36 · 50 HzCDLF3-3+CDH3-36 · 50 HzCDLF3-4+CDH3-36 · 50 HzCDLF3-5+CDH3-36 · 50 HzCDLF3-6+CDH3-36 · 50 HzCDLF3-7+CDH3-36 · 50 HzCDLF3-8+CDH3-36 · 50 HzCDLF3-9+CDH3-36 · 50 HzCDLF3-10+CDH3-36 · 50 HzCDLF3-11+CDH3-36 · 50 HzCDLF3-12+CDH3-36 · 50 HzCDLF3-13+CDH3-36 · 50 HzCDLF3-15+CDH3-36 · 50 HzCDLF3-17+CDH3-36 · 50 HzCDLF3-19+CDH3-36 · 50 HzCDLF3-21+CDH3-36 · 50 HzCDLF3-23+CDH3-36 · 50 HzCDLF3-25+CDH3-36 · 50 HzCDLF3-27+CDH3-36 · 50 HzCDLF3-29+CDH3-36 · 50 HzCDLF3-31+CDH3-36 · 50 HzCDLF3-33+CDH3-36 · 50 HzCDLF3-36+CDH3-36 · 50 HzCDLF4-2+CDH4-22 · 50 HzCDLF4-3+CDH4-22 · 50 HzCDLF4-4+CDH4-22 · 50 HzCDLF4-5+CDH4-22 · 50 HzCDLF4-6+CDH4-22 · 50 HzCDLF4-7+CDH4-22 · 50 HzCDLF4-8+CDH4-22 · 50 HzCDLF4-10+CDH4-22 · 50 HzCDLF4-12+CDH4-22 · 50 HzCDLF4-14+CDH4-22 · 50 HzCDLF4-16+CDH4-22 · 50 HzCDLF4-19+CDH4-22 · 50 HzCDLF4-22+CDH4-22 · 50 HzCDLF8-2/1+CDH8-20 · 50 HzCDLF8-2+CDH8-20 · 50 HzCDLF8-3+CDH8-20 · 50 HzCDLF8-4+CDH8-20 · 50 HzCDLF8-5+CDH8-20 · 50 HzCDLF8-6+CDH8-20 · 50 HzCDLF8-8+CDH8-20 · 50 HzCDLF8-10+CDH8-20 · 50 HzCDLF8-12+CDH8-20 · 50 HzCDLF8-14+CDH8-20 · 50 HzCDLF8-16+CDH8-20 · 50 HzCDLF8-18+CDH8-20 · 50 HzCDLF8-20+CDH8-20 · 50 HzCDLF12-2+CDH12-18 · 50 HzCDLF12-3+CDH12-18 · 50 HzCDLF12-4+CDH12-18 · 50 HzCDLF12-5+CDH12-18 · 50 HzCDLF12-6+CDH12-18 · 50 HzCDLF12-7+CDH12-18 · 50 HzCDLF12-8+CDH12-18 · 50 HzCDLF12-9+CDH12-18 · 50 HzCDLF12-10+CDH12-18 · 50 HzCDLF12-12+CDH12-18 · 50 HzCDLF12-14+CDH12-18 · 50 HzCDLF12-16+CDH12-18 · 50 HzCDLF12-18+CDH12-18 · 50 HzCDLF15-1+CDH15-17 · 50 HzCDLF15-2+CDH15-17 · 50 HzCDLF15-3+CDH15-17 · 50 HzCDLF15-4+CDH15-17 · 50 HzCDLF15-5+CDH15-17 · 50 HzCDLF15-6+CDH15-17 · 50 HzCDLF15-7+CDH15-17 · 50 HzCDLF15-8+CDH15-17 · 50 HzCDLF15-9+CDH15-17 · 50 HzCDLF15-10+CDH15-17 · 50 HzCDLF15-12+CDH15-17 · 50 HzCDLF15-14+CDH15-17 · 50 HzCDLF15-17+CDH15-17 · 50 HzCDLF20-1+CDH20-17 · 50 HzCDLF20-2+CDH20-17 · 50 HzCDLF20-3+CDH20-17 · 50 HzCDLF20-4+CDH20-17 · 50 HzCDLF20-5+CDH20-17 · 50 HzCDLF20-6+CDH20-17 · 50 HzCDLF20-7+CDH20-17 · 50 HzCDLF20-8+CDH20-17 · 50 HzCDLF20-10+CDH20-17 · 50 HzCDLF20-12+CDH20-17 · 50 HzCDLF20-14+CDH20-17 · 50 HzCDLF20-17+CDH20-17 · 50 HzCDLF1-2+CDH1-25 · 60 HzCDLF1-3+CDH1-25 · 60 HzCDLF1-4+CDH1-25 · 60 HzCDLF1-5+CDH1-25 · 60 HzCDLF1-6+CDH1-25 · 60 HzCDLF1-7+CDH1-25 · 60 HzCDLF1-8+CDH1-25 · 60 HzCDLF1-9+CDH1-25 · 60 HzCDLF1-10+CDH1-25 · 60 HzCDLF1-11+CDH1-25 · 60 HzCDLF1-12+CDH1-25 · 60 HzCDLF1-13+CDH1-25 · 60 HzCDLF1-15+CDH1-25 · 60 HzCDLF1-17+CDH1-25 · 60 HzCDLF1-19+CDH1-25 · 60 HzCDLF1-21+CDH1-25 · 60 HzCDLF1-23+CDH1-25 · 60 HzCDLF1-25+CDH1-25 · 60 HzCDLF2-2+CDH2-18 · 60 HzCDLF2-3+CDH2-18 · 60 HzCDLF2-4+CDH2-18 · 60 HzCDLF2-5+CDH2-18 · 60 HzCDLF2-6+CDH2-18 · 60 HzCDLF2-7+CDH2-18 · 60 HzCDLF2-9+CDH2-18 · 60 HzCDLF2-11+CDH2-18 · 60 HzCDLF2-13+CDH2-18 · 60 HzCDLF2-15+CDH2-18 · 60 HzCDLF2-18+CDH2-18 · 60 HzCDLF3-2+CDH3-25 · 60 HzCDLF3-3+CDH3-25 · 60 HzCDLF3-4+CDH3-25 · 60 HzCDLF3-5+CDH3-25 · 60 HzCDLF3-6+CDH3-25 · 60 HzCDLF3-7+CDH3-25 · 60 HzCDLF3-8+CDH3-25 · 60 HzCDLF3-9+CDH3-25 · 60 HzCDLF3-10+CDH3-25 · 60 HzCDLF3-11+CDH3-25 · 60 HzCDLF3-12+CDH3-25 · 60 HzCDLF3-13+CDH3-25 · 60 HzCDLF3-15+CDH3-25 · 60 HzCDLF3-17+CDH3-25 · 60 HzCDLF3-19+CDH3-25 · 60 HzCDLF3-21+CDH3-25 · 60 HzCDLF3-23+CDH3-25 · 60 HzCDLF3-25+CDH3-25 · 60 HzCDLF4-2+CDH4-16 · 60 HzCDLF4-3+CDH4-16 · 60 HzCDLF4-4+CDH4-16 · 60 HzCDLF4-5+CDH4-16 · 60 HzCDLF4-6+CDH4-16 · 60 HzCDLF4-7+CDH4-16 · 60 HzCDLF4-8+CDH4-16 · 60 HzCDLF4-10+CDH4-16 · 60 HzCDLF4-12+CDH4-16 · 60 HzCDLF4-14+CDH4-16 · 60 HzCDLF4-16+CDH4-16 · 60 HzCDLF8-2/1+CDH8-14 · 60 HzCDLF8-2+CDH8-14 · 60 HzCDLF8-3+CDH8-14 · 60 HzCDLF8-4+CDH8-14 · 60 HzCDLF8-5+CDH8-14 · 60 HzCDLF8-6+CDH8-14 · 60 HzCDLF8-8+CDH8-14 · 60 HzCDLF8-10+CDH8-14 · 60 HzCDLF8-12+CDH8-14 · 60 HzCDLF8-14+CDH8-14 · 60 HzCDLF12-1+CDH12-14 · 60 HzCDLF12-2+CDH12-14 · 60 HzCDLF12-3+CDH12-14 · 60 HzCDLF12-4+CDH12-14 · 60 HzCDLF12-5+CDH12-14 · 60 HzCDLF12-6+CDH12-14 · 60 HzCDLF12-7+CDH12-14 · 60 HzCDLF12-8+CDH12-14 · 60 HzCDLF12-10+CDH12-14 · 60 HzCDLF12-12+CDH12-14 · 60 HzCDLF12-13+CDH12-14 · 60 HzCDLF15-1+CDH15-12 · 60 HzCDLF15-2+CDH15-12 · 60 HzCDLF15-3+CDH15-12 · 60 HzCDLF15-4+CDH15-12 · 60 HzCDLF15-5+CDH15-12 · 60 HzCDLF15-6+CDH15-12 · 60 HzCDLF15-7+CDH15-12 · 60 HzCDLF15-8+CDH15-12 · 60 HzCDLF15-9+CDH15-12 · 60 HzCDLF15-10+CDH15-12 · 60 HzCDLF15-12+CDH15-12 · 60 HzCDLF20-1+CDH20-10 · 60 HzCDLF20-2+CDH20-10 · 60 HzCDLF20-3+CDH20-10 · 60 HzCDLF20-4+CDH20-10 · 60 HzCDLF20-5+CDH20-10 · 60 HzCDLF20-6+CDH20-10 · 60 HzCDLF20-7+CDH20-10 · 60 HzCDLF20-8+CDH20-10 · 60 HzCDLF20-10+CDH20-10 · 60 Hz

Logarithmic scales. Published catalogue data for clean water; the correct model for your duty is confirmed by our engineers.

Dimensions & weight

Net weight and the main dimensions of each model, in millimetres, from the catalogue. Open a model for the labelled dimension drawing.

ModelHzWeight (kg)B1B2B1_B2D1D2D3
CDLF1-2+CDH1-365081233225458148117—
CDLF1-3+CDH1-365081251225476148117—
CDLF1-4+CDH1-365081269225494148117—
CDLF1-5+CDH1-365081287225512148117—
CDLF1-6+CDH1-365081305225530148117—
CDLF1-7+CDH1-365081323225548148117—
CDLF1-8+CDH1-365083341225566148117—
CDLF1-9+CDH1-365083359225584148117—
CDLF1-10+CDH1-365083377225602148117—
CDLF1-11+CDH1-365083395225620148117—
CDLF1-12+CDH1-365086423245668170142—
CDLF1-13+CDH1-365086441245686170142—
CDLF1-15+CDH1-365086477245722170142—
CDLF1-17+CDH1-365089513245758170142—
CDLF1-19+CDH1-365089549245794170142—
CDLF1-21+CDH1-365091585245830170142—
CDLF1-23+CDH1-365094621245866170142—
CDLF1-25+CDH1-3650101667290957190155—
CDLF1-27+CDH1-3650101703290993190155—
CDLF1-30+CDH1-36501017572901047190155—
CDLF1-33+CDH1-36501068112901101190155—
CDLF1-36+CDH1-36501068652901155190155—
CDLF2-2+CDH2-265086233225458148117—
CDLF2-3+CDH2-265086251225476148117—
CDLF2-4+CDH2-265086269225494148117—
CDLF2-5+CDH2-265086287225512148117—
CDLF2-6+CDH2-265091315245560170142—
CDLF2-7+CDH2-265091333245578170142—
CDLF2-9+CDH2-265096369245614170142—
CDLF2-11+CDH2-265096405245650170142—
CDLF2-13+CDH2-2650101451290741190155—
CDLF2-15+CDH2-2650101487290777190155—
CDLF2-18+CDH2-2650106541290831190155—
CDLF2-22+CDH2-2650111613290903190155—
CDLF2-26+CDH2-26501166953451040197165—
CDLF3-2+CDH3-365086233225458148117—
CDLF3-3+CDH3-365086251225476148117—
CDLF3-4+CDH3-365086269225494148117—
CDLF3-5+CDH3-365086287225512148117—
CDLF3-6+CDH3-365088305225530148117—
CDLF3-7+CDH3-365088323225548148117—
CDLF3-8+CDH3-365088351245596170142—
CDLF3-9+CDH3-365088369245614170142—
CDLF3-10+CDH3-365088387245632170142—
CDLF3-11+CDH3-365091405245650170142—
CDLF3-12+CDH3-365091423245668170142—
CDLF3-13+CDH3-365091441245686170142—
CDLF3-15+CDH3-365091477245722170142—
CDLF3-17+CDH3-365096523290813190155—
CDLF3-19+CDH3-3650101559290849190155—
CDLF3-21+CDH3-3650101595290885190155—
CDLF3-23+CDH3-3650106631290921190155—
CDLF3-25+CDH3-3650106667290957190155—
CDLF3-27+CDH3-3650106703290993190155—
CDLF3-29+CDH3-36501067392901029190155—
CDLF3-31+CDH3-36501117853451130197165—
CDLF3-33+CDH3-36501168213451166197165—
CDLF3-36+CDH3-36501168753451229197165—
CDLF4-2+CDH4-225086251225476148117—
CDLF4-3+CDH4-225086278225503148117—
CDLF4-4+CDH4-225086315245560170142—
CDLF4-5+CDH4-225091342245587170142—
CDLF4-6+CDH4-225091369245614170142—
CDLF4-7+CDH4-225096406290696190155—
CDLF4-8+CDH4-225096433290723190155—
CDLF4-10+CDH4-225096487290777190155—
CDLF4-12+CDH4-2250101541290831190155—
CDLF4-14+CDH4-2250101605345950197165—
CDLF4-16+CDH4-22501066593451004197165—
CDLF4-19+CDH4-22501117403451085230188—
CDLF4-22+CDH4-22501168213551176230188—
CDLF8-2/1+CDH8-2050136347245592170142—
CDLF8-2+CDH8-2050136347245592170142—
CDLF8-3+CDH8-2050146377245622170142—
CDLF8-4+CDH8-2050146417290707190155—
CDLF8-5+CDH8-2050156447290737190155—
CDLF8-6+CDH8-2050156477290767190155—
CDLF8-8+CDH8-2050161547345892197165—
CDLF8-10+CDH8-2050171607355962230188—
CDLF8-12+CDH8-20501716673551022230188—
CDLF8-14+CDH8-20501967473901137260208—
CDLF8-16+CDH8-20501968073901197260208—
CDLF8-18+CDH8-20502068673901257260208—
CDLF8-20+CDH8-20502069273901317260208—
CDLF12-2+CDH12-1850210367290657190155145
CDLF12-3+CDH12-1850213397290687190155145
CDLF12-4+CDH12-1850220437345782197165160
CDLF12-5+CDH12-1850221467345812197165160
CDLF12-6+CDH12-1850231497355852230188160
CDLF12-7+CDH12-1850249547390937260208200
CDLF12-8+CDH12-1850249577390967260208200
CDLF12-9+CDH12-1850251607390997260208200
CDLF12-10+CDH12-18502516373901027260208200
CDLF12-12+CDH12-18502536973901087260208200
CDLF12-14+CDH12-18503248455001345330255350
CDLF12-16+CDH12-18503249055001405330255350
CDLF12-18+CDH12-18503269655001465330255350
CDLF15-1+CDH15-1750229387245632170142145
CDLF15-2+CDH15-1750238397290687190155145
CDLF15-3+CDH15-1750247452345797197165160
CDLF15-4+CDH15-1750256497355852230188160
CDLF15-5+CDH15-1750258542355897230188160
CDLF15-6+CDH15-1750274607390997260208200
CDLF15-7+CDH15-17502766523901042260208200
CDLF15-8+CDH15-17502826973901087260208200
CDLF15-9+CDH15-17502847423901132260208200
CDLF15-10+CDH15-17503538755001375330255350
CDLF15-12+CDH15-17503579655001465330255350
CDLF15-14+CDH15-175036110555001555330255350
CDLF15-17+CDH15-175037411905001690330255350
CDLF20-1+CDH20-1750244387245632170142145
CDLF20-2+CDH20-1750255397290687190155145
CDLF20-3+CDH20-1750269452355807230188160
CDLF20-4+CDH20-1750284517390907260208200
CDLF20-5+CDH20-1750286562390952260208200
CDLF20-6+CDH20-1750294607390997260208200
CDLF20-7+CDH20-17502966523901042260208200
CDLF20-8+CDH20-17503527855001285330255350
CDLF20-10+CDH20-17503578755001375330255350
CDLF20-12+CDH20-17503729655001465330255350
CDLF20-14+CDH20-175037710555001555330255350
CDLF20-17+CDH20-175040211905501740330255350
CDLF1-2+CDH1-256081258225483148117—
CDLF1-3+CDH1-256081276225501148117—
CDLF1-4+CDH1-256081294225519148117—
CDLF1-5+CDH1-256083312225537148117—
CDLF1-6+CDH1-256083330225555148117—
CDLF1-7+CDH1-256086358245603170142—
CDLF1-8+CDH1-256086376245621170142—
CDLF1-9+CDH1-256086394245639170142—
CDLF1-10+CDH1-256089412245657170142—
CDLF1-11+CDH1-256089430245675170142—
CDLF1-12+CDH1-256089448245693170142—
CDLF1-13+CDH1-256089466245711170142—
CDLF1-15+CDH1-256091512290802190155—
CDLF1-17+CDH1-256091548290838190155—
CDLF1-19+CDH1-256096584290874190155—
CDLF1-21+CDH1-256096620290910190155—
CDLF1-23+CDH1-2560101656290946190155—
CDLF1-25+CDH1-25601067023451047197165—
CDLF2-2+CDH2-186086258225483148117—
CDLF2-3+CDH2-186086286245531170142—
CDLF2-4+CDH2-186091304245549170142—
CDLF2-5+CDH2-186091322245567170142—
CDLF2-6+CDH2-186091340245585170142—
CDLF2-7+CDH2-186096368290658190155—
CDLF2-9+CDH2-1860101404290694190155—
CDLF2-11+CDH2-1860101440290730190155—
CDLF2-13+CDH2-1860109486345831197165—
CDLF2-15+CDH2-1860111522345867197165—
CDLF2-18+CDH2-1860116576355931230188—
CDLF3-2+CDH3-256086258225483148117—
CDLF3-3+CDH3-256086276225501148117—
CDLF3-4+CDH3-256086294225519148117—
CDLF3-5+CDH3-256088322245567170142—
CDLF3-6+CDH3-256091340245585170142—
CDLF3-7+CDH3-256091358245603170142—
CDLF3-8+CDH3-256091376245621170142—
CDLF3-9+CDH3-256096404290694190155—
CDLF3-10+CDH3-256096422290712190155—
CDLF3-11+CDH3-256096440290730190155—
CDLF3-12+CDH3-2560101458290748190155—
CDLF3-13+CDH3-2560101476290766190155—
CDLF3-15+CDH3-2560101512290802190155—
CDLF3-17+CDH3-2560101548290838190155—
CDLF3-19+CDH3-2560106594345939197165—
CDLF3-21+CDH3-2560106630345975197165—
CDLF3-23+CDH3-25601066663451011197165—
CDLF3-25+CDH3-25601167023551057230188—
CDLF4-2+CDH4-1660106286245531170142—
CDLF4-3+CDH4-1660106313245558170142—
CDLF4-4+CDH4-1660111350290640190155—
CDLF4-5+CDH4-1660116376290666190155—
CDLF4-6+CDH4-1660121404290694190155—
CDLF4-7+CDH4-1660126441345786197165—
CDLF4-8+CDH4-1660126468345813197165—
CDLF4-10+CDH4-1660131522355877230188—
CDLF4-12+CDH4-1660131576355931230188—
CDLF4-14+CDH4-16601566503901040260208—
CDLF4-16+CDH4-16601567043901094260208—
CDLF8-2/1+CDH8-1460181347245592170142145
CDLF8-2+CDH8-1460186357290647190155145
CDLF8-3+CDH8-1460191387290677190155145
CDLF8-4+CDH8-1460196427345772197165160
CDLF8-5+CDH8-1460201457345802197165160
CDLF8-6+CDH8-1460206487355842230188160
CDLF8-8+CDH8-1460231567390957260208200
CDLF8-10+CDH8-14602416273901017260208200
CDLF8-12+CDH8-14602416873901077260208200
CDLF8-14+CDH8-14602868355001335330255350
CDLF12-1+CDH12-1460214357245602170142145
CDLF12-2+CDH12-1460222367290657190155145
CDLF12-3+CDH12-1460239407355762230188160
CDLF12-4+CDH12-1460256457390847260208200
CDLF12-5+CDH12-1460256487390877260208200
CDLF12-6+CDH12-1460259517390907260208200
CDLF12-7+CDH12-1460259547390937260208200
CDLF12-8+CDH12-14603296655001165330255350
CDLF12-10+CDH12-14603317255001225330255350
CDLF12-12+CDH12-14603447855001285330255350
CDLF12-13+CDH12-14603458155001315330255350
CDLF15-1+CDH15-1260248397290687190155145
CDLF15-2+CDH15-1260258407345752197165160
CDLF15-3+CDH15-1260267452355807230188160
CDLF15-4+CDH15-1260280517390907260208200
CDLF15-5+CDH15-1260290562390952260255200
CDLF15-6+CDH15-12603596953901085330255350
CDLF15-7+CDH15-12603617403901130330255350
CDLF15-8+CDH15-12603627853901175330255350
CDLF15-9+CDH15-12603748303901220330255350
CDLF15-10+CDH15-12603768755001375330255350
CDLF15-12+CDH15-12604009655501515330255350
CDLF20-1+CDH20-1060249397290687190155145
CDLF20-2+CDH20-1060259407355762230188160
CDLF20-3+CDH20-1060279472390862260208200
CDLF20-4+CDH20-1060289517390907260208200
CDLF20-5+CDH20-10603496505001150330255350
CDLF20-6+CDH20-10603546955001195330255350
CDLF20-7+CDH20-10603697405001240330255350
CDLF20-8+CDH20-10603697855001285330255350
CDLF20-10+CDH20-10603928755501425330255350

Spare parts for CDLF + CDH

Parts list of the series with the material of each part. To order, send the model code and the part you need.

Parts list (PDF) Request spare parts quote
No.PartMaterialStandardApplies to
1Motor—— All sizes
2Pump headCast ironASTM80-55-06 All sizes
3Lining—— All sizes
4Mechanical seal—— All sizes
5Top diffuserStainless steelAISI304 All sizes
6DiffuserStainless steelAISI304 All sizes
7Support diffuserStainless steelAISI304 All sizes
8InducerStainless steelAISI304 All sizes
9Inlet and outlet chamberStainless steelAISI304 All sizes
10Base plateCast iron— All sizes
11BearingTungsten carbide— All sizes
12ImpellerStainless steelAISI304 All sizes
13ShaftStainless steelAISI304 / AISI316L All sizes
14Impeller sleeveStainless steelAISI304 All sizes
15CylinderStainless steelAISI304 All sizes
16StayboltStainless steel— All sizes
17CouplingCarbon steel— All sizes

Technical data

Liquid temperature

  • -15 to +70 °C (normal type); hot-water type -15 to +120 °C

Ambient conditions

  • Up to 40 °C and 1000 m altitude

Motor

  • TEFC motor, IP55, insulation class F; two-pole standard motors

Supply voltage

  • 3 x 380-415 V
  • 3 x 220-240 / 380-415 V
  • 3 x 200-220 / 346-380 V
  • 1 x 220-230 / 240 V
  • 3 x 200-230 / 346-400 V
  • 3 x 220-255 / 380-440 V
  • 3 x 220-277 / 380-480 V

Typical applications

  • Water treatment: ultra-filter system, R/O system
  • Booster system
  • High-pressure flushing system
  • Water supply

Pumped liquid

  • Thin, clean, non-flammable and non-explosive liquid without solid granules or fibres

Data basis

  • 50 Hz, 2900/2950 rpm, 20 °C air-free clean water, kinematic viscosity 1 mm²/s; curve tolerance ISO 9906:2012 Grade 3B
  • 60 Hz, 3500/3540 rpm, 20 °C air-free clean water, kinematic viscosity 1 mm²/s; curve tolerance ISO 9906:2012 Grade 3B

Performance values are taken from the published CNP catalogue data. Our engineers confirm the final selection for your liquid, temperature, supply and site before quoting.

Other high-pressure pumps

HP

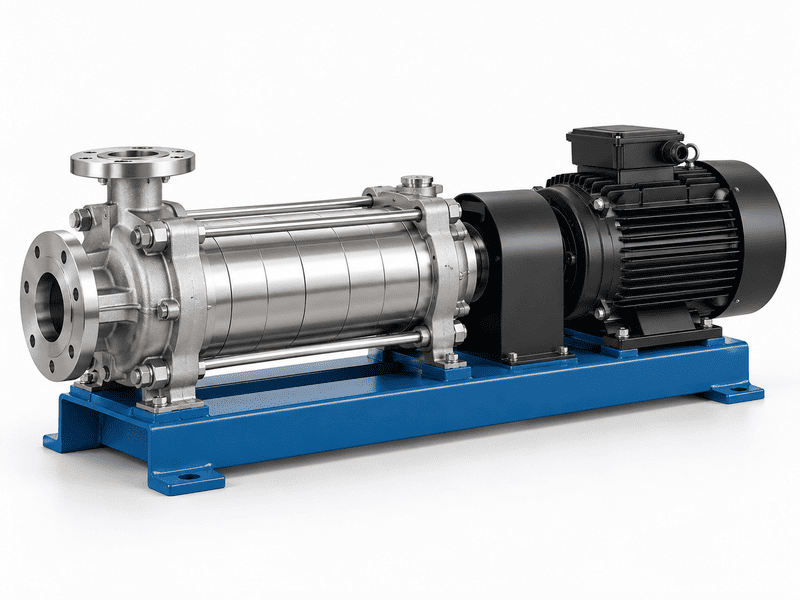

High-pressure pump

  • Flow 16–65 m³/h
  • Head up to 718 m
  • 37–110 kW
View series

Need a pump or a spare part?

Send us the flow and head you need, or the model code and nameplate details of the pump you are repairing. Our team replies with a quotation.

Request a Quotation +92 345 9547419
