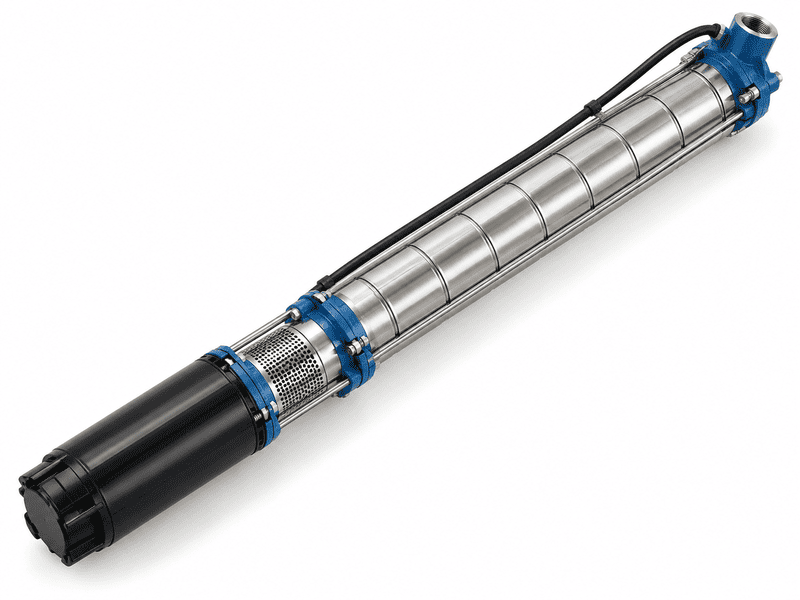

Deep-well submersible multistage stainless steel pump

SJ (deep-well submersible)

Stainless steel deep-well submersible multistage pumps, SJ

Stainless steel deep-well submersible multistage pumps for clean, thin, non-corrosive water, with NEMA-interface submersible motors. Used for water supply, irrigation, lowering ground water level and boosting. Stage count sets the head.

  • Fourteen sizes from 1 to 200 m³/h rated flow
  • Flow 0.2 to 240 m³/h
  • AISI 304 stainless steel construction
  • 4", 6" and 8" NEMA submersible motors up to 110 kW
  • Liquid up to 25 °C, maximum diving depth 70 m, working pressure 38 bar
View 436 models Find a pump

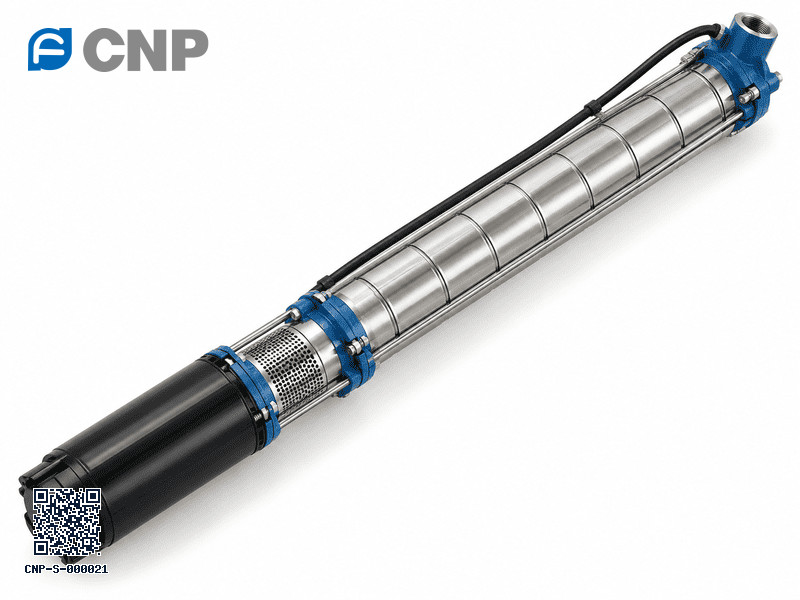

SJ (deep-well submersible)CNP-S-000021
Flow
0.2–260 m³/h
Head
up to 381 m
Power
0.37–110 kW
Mains
50 Hz / 60 Hz
Models
436
Liquid temp.
Up to +25 °C liquid

Sizes

SizeDescriptionRated flowFlow rangeMax pressureMotorConnectionModels
SJ1 Stainless steel deep-well submersible multistage pump 1 m³/h 0.2–2 m³/h 28 bar 0.37–2.2 kW Thread Rp1¼ 21
SJ3 Stainless steel deep-well submersible multistage pump 3 m³/h 0.8–4 m³/h 25 bar 0.37–3 kW Thread Rp1¼ 19
SJ5 Stainless steel deep-well submersible multistage pump 5 m³/h 1–6.5 m³/h 24 bar 0.37–4 kW Thread Rp1½ 20
SJ8 Stainless steel deep-well submersible multistage pump 8 m³/h 2–11 m³/h 27 bar 0.75–7.5 kW Thread Rp2 25
SJ12 Stainless steel deep-well submersible multistage pump 12 m³/h 3–18 m³/h 16 bar 1.5–7.5 kW Thread Rp2 16
SJ17 Stainless steel deep-well submersible multistage pump 17 m³/h 4–22 m³/h 26 bar 0.55–15 kW Thread Rp2½ 44
SJ30 Stainless steel deep-well submersible multistage pump 30 m³/h 5–38 m³/h 28 bar 1.1–22 kW Thread Rp3 42
SJ42 Stainless steel deep-well submersible multistage pump 42 m³/h 5–60 m³/h 28 bar 1.1–37 kW Thread Rp3 36
SJ60 Stainless steel deep-well submersible multistage pump 60 m³/h 10–75 m³/h 29 bar 2.2–37 kW Thread Rp4 39
SJ75 Stainless steel deep-well submersible multistage pump 75 m³/h 30–100 m³/h 38 bar 7.5–75 kW Thread Rp5 31
SJ95 Stainless steel deep-well submersible multistage pump 95 m³/h 40–120 m³/h 34 bar 9.2–75 kW Thread Rp5 28
SJ120 Stainless steel deep-well submersible multistage pump 120 m³/h 60–150 m³/h 25 bar 11–110 kW Thread Rp6 49
SJ150 Stainless steel deep-well submersible multistage pump 150 m³/h 80–180 m³/h 23 bar 9.2–110 kW Thread Rp6 40
SJ200 Stainless steel deep-well submersible multistage pump 200 m³/h 100–240 m³/h 16 bar 30–110 kW Thread Rp6 26

Models

Filter by duty point, mains frequency or size. Click a model for its performance curve and data.

Model table (PDF)
ModelSizeStagesHzMotor kWFlow m³/hHead mrpmkg
SJ1-6 SJ1650 0.37 0.2–2 19–33.5 2850— CurvePDF
SJ1-9 SJ1950 0.37 0.2–2 29–51 2850— CurvePDF
SJ1-13 SJ11350 0.55 0.2–2 42–73 2850— CurvePDF
SJ1-17 SJ11750 0.75 0.2–2 55–96 2850— CurvePDF
SJ1-21 SJ12150 1.1 0.2–2 69–119 2850— CurvePDF
SJ1-25 SJ12550 1.1 0.2–2 82–141 2850— CurvePDF
SJ1-28 SJ12850 1.5 0.2–2 92–158 2850— CurvePDF
SJ1-32 SJ13250 1.5 0.2–2 105–180 2850— CurvePDF
SJ1-36 SJ13650 1.5 0.2–2 118–203 2850— CurvePDF
SJ1-39 SJ13950 2.2 0.2–2 128–221 2850— CurvePDF
SJ1-42 SJ14250 2.2 0.2–2 137–238 2850— CurvePDF
SJ1-46 SJ14650 2.2 0.2–2 151–260 2850— CurvePDF
SJ1-50 SJ15050 2.2 0.2–2 165–284 2850— CurvePDF
SJ3-6 SJ3650 0.37 0.8–4 13–36 2850— CurvePDF
SJ3-9 SJ3950 0.55 0.8–4 20–53 2850— CurvePDF
SJ3-12 SJ31250 0.75 0.8–4 27–70 2850— CurvePDF
SJ3-15 SJ31550 1.1 0.8–4 34–87 2850— CurvePDF
SJ3-18 SJ31850 1.1 0.8–4 42–105 2850— CurvePDF
SJ3-22 SJ32250 1.5 0.8–4 53–130 2850— CurvePDF
SJ3-27 SJ32750 2.2 0.8–4 66–159 2850— CurvePDF
SJ3-32 SJ33250 2.2 0.8–4 79–189 2850— CurvePDF
SJ3-38 SJ33850 3 0.8–4 94–224 2850— CurvePDF
SJ3-43 SJ34350 3 0.8–4 107–254 2850— CurvePDF
SJ5-4 SJ5450 0.37 1–6.5 8–21 2850— CurvePDF
SJ5-6 SJ5650 0.55 1–6.5 11–32 2850— CurvePDF
SJ5-8 SJ5850 0.75 1–6.5 15–43 2850— CurvePDF
SJ5-12 SJ51250 1.1 1–6.5 23–66 2850— CurvePDF
SJ5-17 SJ51750 1.5 1–6.5 32–95 2850— CurvePDF
SJ5-21 SJ52150 2.2 1–6.5 39–117 2850— CurvePDF
SJ5-25 SJ52550 2.2 1–6.5 47–139 2850— CurvePDF
SJ5-29 SJ52950 3 1–6.5 55–161 2850— CurvePDF
SJ5-33 SJ53350 3 1–6.5 62–183 2850— CurvePDF
SJ5-38 SJ53850 4 1–6.5 71–211 2850— CurvePDF
SJ5-43 SJ54350 4 1–6.5 81–239 2850— CurvePDF
SJ8-5 SJ8550 0.75 2–11 10–27 2850— CurvePDF
SJ8-7 SJ8750 1.1 2–11 14–38 2850— CurvePDF
SJ8-10 SJ81050 1.5 2–11 21–54 2850— CurvePDF
SJ8-12 SJ81250 2.2 2–11 26–65 2850— CurvePDF
SJ8-15 SJ81550 2.2 2–11 33–81 2850— CurvePDF
SJ8-18 SJ81850 3 2–11 40–95 2850— CurvePDF
SJ8-21 SJ82150 4 2–11 47–112 2850— CurvePDF
SJ8-25 SJ82550 4 2–11 56–135 2850— CurvePDF
SJ8-30 SJ83050 5.5 2–11 67–162 2850— CurvePDF
SJ8-37 SJ83750 5.5 2–11 82–201 2850— CurvePDF
SJ8-44 SJ84450 7.5 2–11 98–242 2850— CurvePDF
SJ8-50 SJ85050 7.5 2–11 111–272 2850— CurvePDF
SJ12-5 SJ12550 1.5 3–18 13–34 2850— CurvePDF
SJ12-7 SJ12750 2.2 3–18 19–48 2850— CurvePDF
SJ12-10 SJ121050 3 3–18 27–67 2850— CurvePDF
SJ12-13 SJ121350 4 3–18 36–88 2850— CurvePDF
SJ12-15 SJ121550 5.5 3–18 41–99 2850— CurvePDF
SJ12-18 SJ121850 5.5 3–18 50–120 2850— CurvePDF
SJ12-21 SJ122150 7.5 3–18 58–138 2850— CurvePDF
SJ12-25 SJ122550 7.5 3–18 69–166 2850— CurvePDF
SJ17-1 SJ17150 0.55 4–22 4–10.5 2850— CurvePDF
SJ17-2 SJ17250 1.1 4–22 8–20.5 2850— CurvePDF
SJ17-3 SJ17350 2.2 4–22 13–31 2850— CurvePDF
SJ17-4 SJ17450 2.2 4–22 18–41 2850— CurvePDF
SJ17-5 SJ17550 3 4–22 23–52 2850— CurvePDF
SJ17-6 SJ17650 4 4–22 27–62 2850— CurvePDF
SJ17-7 SJ17750 4 4–22 31–73 2850— CurvePDF
SJ17-8 SJ17850 5.5 4–22 36–83 2850— CurvePDF
SJ17-9 SJ17950 5.5 4–22 40–93 2850— CurvePDF
SJ17-10 SJ171050 5.5 4–22 45–103 2850— CurvePDF
SJ17-11 SJ171150 7.5 4–22 50–113 2850— CurvePDF
SJ17-12 SJ171250 7.5 4–22 55–123 2850— CurvePDF
SJ17-13 SJ171350 7.5 4–22 60–133 2850— CurvePDF
SJ17-14 SJ171450 9.2 4–22 65–143 2850— CurvePDF
SJ17-15 SJ171550 9.2 4–22 70–153 2850— CurvePDF
SJ17-16 SJ171650 9.2 4–22 75–163 2850— CurvePDF
SJ17-17 SJ171750 9.2 4–22 79–173 2850— CurvePDF
SJ17-18 SJ171850 11 4–22 84–184 2850— CurvePDF
SJ17-19 SJ171950 11 4–22 89–194 2850— CurvePDF
SJ17-20 SJ172050 11 4–22 94–204 2850— CurvePDF
SJ17-21 SJ172150 13 4–22 99–214 2850— CurvePDF
SJ17-22 SJ172250 13 4–22 104–224 2850— CurvePDF
SJ17-23 SJ172350 13 4–22 109–235 2850— CurvePDF
SJ17-24 SJ172450 13 4–22 113–245 2850— CurvePDF
SJ17-25 SJ172550 15 4–22 118–255 2850— CurvePDF
SJ17-26 SJ172650 15 4–22 122–265 2850— CurvePDF
SJ30-1 SJ30150 1.1 5–38 4.5–11.5 2850— CurvePDF
SJ30-2 SJ30250 2.2 5–38 9–22.5 2850— CurvePDF
SJ30-3 SJ30350 3 5–38 14–33.5 2850— CurvePDF
SJ30-4 SJ30450 4 5–38 18–44.5 2850— CurvePDF
SJ30-5 SJ30550 5.5 5–38 23–55.5 2850— CurvePDF
SJ30-6 SJ30650 5.5 5–38 27–67 2850— CurvePDF
SJ30-7 SJ30750 7.5 5–38 32–77 2850— CurvePDF
SJ30-8 SJ30850 7.5 5–38 36–89 2850— CurvePDF
SJ30-9 SJ30950 9.2 5–38 41–101 2850— CurvePDF
SJ30-10 SJ301050 9.2 5–38 45–112 2850— CurvePDF
SJ30-11 SJ301150 9.2 5–38 50–123 2850— CurvePDF
SJ30-12 SJ301250 11 5–38 54–134 2850— CurvePDF
SJ30-13 SJ301350 11 5–38 59–145 2850— CurvePDF
SJ30-14 SJ301450 13 5–38 63–157 2850— CurvePDF
SJ30-15 SJ301550 13 5–38 68–168 2850— CurvePDF
SJ30-16 SJ301650 15 5–38 72–180 2850— CurvePDF
SJ30-17 SJ301750 15 5–38 77–190 2850— CurvePDF
SJ30-18 SJ301850 18.5 5–38 81–201 2850— CurvePDF
SJ30-19 SJ301950 18.5 5–38 86–212 2850— CurvePDF
SJ30-20 SJ302050 18.5 5–38 90–223 2850— CurvePDF
SJ30-21 SJ302150 18.5 5–38 95–235 2850— CurvePDF
SJ30-22 SJ302250 22 5–38 99–246 2850— CurvePDF
SJ30-23 SJ302350 22 5–38 104–258 2850— CurvePDF
SJ30-24 SJ302450 22 5–38 108–269 2850— CurvePDF
SJ30-25 SJ302550 22 5–38 113–281 2850— CurvePDF
SJ42-1 SJ42150 2.2 5–60 4–13 2850— CurvePDF
SJ42-2 SJ42250 3 5–60 8.5–26 2850— CurvePDF
SJ42-3 SJ42350 5.5 5–60 13–40 2850— CurvePDF
SJ42-4 SJ42450 7.5 5–60 18–53 2850— CurvePDF
SJ42-5 SJ42550 7.5 5–60 23–66 2850— CurvePDF
SJ42-6 SJ42650 9.2 5–60 28–79 2850— CurvePDF
SJ42-7 SJ42750 11 5–60 32–92 2850— CurvePDF
SJ42-8 SJ42850 13 5–60 36–105 2850— CurvePDF
SJ42-9 SJ42950 15 5–60 40–118 2850— CurvePDF
SJ42-10 SJ421050 15 5–60 45–132 2850— CurvePDF
SJ42-11 SJ421150 18.5 5–60 49–144 2850— CurvePDF
SJ42-12 SJ421250 18.5 5–60 54–157 2850— CurvePDF
SJ42-13 SJ421350 22 5–60 58–170 2850— CurvePDF
SJ42-14 SJ421450 22 5–60 63–183 2850— CurvePDF
SJ42-15 SJ421550 22 5–60 67–196 2850— CurvePDF
SJ42-16 SJ421650 25 5–60 72–209 2850— CurvePDF
SJ42-17 SJ421750 25 5–60 77–222 2850— CurvePDF
SJ42-18 SJ421850 30 5–60 81–235 2850— CurvePDF
SJ42-19 SJ421950 30 5–60 86–248 2850— CurvePDF
SJ42-20 SJ422050 30 5–60 90–261 2850— CurvePDF
SJ42-21 SJ422150 37 5–60 95–274 2850— CurvePDF
SJ42-22 SJ422250 37 5–60 99–287 2850— CurvePDF
SJ60-1 SJ60150 2.2 20–70 4–12 2850— CurvePDF
SJ60-2-2 SJ60250 3 20–75 4–20 2850— CurvePDF
SJ60-2 SJ60250 4 20–75 6–24.5 2850— CurvePDF
SJ60-3 SJ60350 5.5 20–75 10–37 2850— CurvePDF
SJ60-4 SJ60450 7.5 20–75 17–51 2850— CurvePDF
SJ60-5 SJ60550 9.2 20–75 21–65 2850— CurvePDF
SJ60-6 SJ60650 11 20–75 26–79 2850— CurvePDF
SJ60-7 SJ60750 13 20–75 30–92 2850— CurvePDF
SJ60-8-2 SJ60850 13 20–75 31–99 2850— CurvePDF
SJ60-8 SJ60850 15 20–75 35–105 2850— CurvePDF
SJ60-9-2 SJ60950 15 20–75 36–112 2850— CurvePDF
SJ60-9 SJ60950 18.5 20–75 40–121 2850— CurvePDF
SJ60-10 SJ601050 18.5 20–75 45–132 2850— CurvePDF
SJ60-11 SJ601150 22 20–75 50–145 2850— CurvePDF
SJ60-12 SJ601250 22 20–75 54–158 2850— CurvePDF
SJ60-13 SJ601350 25 20–75 59–172 2850— CurvePDF
SJ60-14 SJ601450 25 20–75 63–185 2850— CurvePDF
SJ60-15 SJ601550 30 20–75 68–198 2850— CurvePDF
SJ60-16 SJ601650 30 20–75 72–212 2850— CurvePDF
SJ60-17 SJ601750 30 20–75 77–224 2850— CurvePDF
SJ60-18 SJ601850 37 20–75 84–240 2850— CurvePDF
SJ60-19 SJ601950 37 20–75 89–253 2850— CurvePDF
SJ60-20 SJ602050 37 20–75 94–265 2850— CurvePDF
SJ60-21 SJ602150 37 20–75 98–278 2850— CurvePDF
SJ75-1 SJ75150 4 30–100 5.5–18 2850— CurvePDF
SJ75-2 SJ75250 7.5 30–100 12.5–36.5 2850— CurvePDF
SJ75-3 SJ75350 11 30–100 21.5–54.5 2850— CurvePDF
SJ75-4 SJ75450 15 30–100 30–73.5 2850— CurvePDF
SJ75-5 SJ75550 18.5 30–100 38–92 2850— CurvePDF
SJ75-6 SJ75650 22 30–100 47–111 2850— CurvePDF
SJ75-7 SJ75750 30 30–100 56–130 2850— CurvePDF
SJ75-8 SJ75850 30 30–100 65–148 2850— CurvePDF
SJ75-9 SJ75950 37 30–100 74–167 2850— CurvePDF
SJ75-10 SJ751050 37 30–100 83–185 2850— CurvePDF
SJ75-11 SJ751150 45 30–100 92–203 2850— CurvePDF
SJ75-12 SJ751250 45 30–100 100–222 2850— CurvePDF
SJ75-13 SJ751350 55 30–100 108–241 2850— CurvePDF
SJ75-14 SJ751450 55 30–100 116–262 2850— CurvePDF
SJ75-15 SJ751550 55 30–100 124–283 2850— CurvePDF
SJ75-16 SJ751650 63 30–100 133–303 2850— CurvePDF
SJ75-17 SJ751750 63 30–100 142–323 2850— CurvePDF
SJ75-18 SJ751850 75 30–100 150–342 2850— CurvePDF
SJ75-19 SJ751950 75 30–100 158–361 2850— CurvePDF
SJ75-20 SJ752050 75 30–100 167–381 2850— CurvePDF
SJ95-1 SJ95150 4 40–110 5–17.5 2850— CurvePDF
SJ95-2 SJ95250 9.2 40–120 3.5–36 2850— CurvePDF
SJ95-3 SJ95350 13 40–120 6–54 2850— CurvePDF
SJ95-4 SJ95450 18.5 40–120 10.5–72 2850— CurvePDF
SJ95-5 SJ95550 22 40–120 14.5–91 2850— CurvePDF
SJ95-6 SJ95650 25 40–120 18–110 2850— CurvePDF
SJ95-7 SJ95750 30 40–120 22–129 2850— CurvePDF
SJ95-8 SJ95850 37 40–120 26–148 2850— CurvePDF
SJ95-9 SJ95950 37 40–120 31–167 2850— CurvePDF
SJ95-10 SJ951050 45 40–120 36–186 2850— CurvePDF
SJ95-11 SJ951150 45 40–120 42–205 2850— CurvePDF
SJ95-12 SJ951250 55 40–120 48–224 2850— CurvePDF
SJ95-13 SJ951350 55 40–120 53–243 2850— CurvePDF
SJ95-14 SJ951450 55 40–120 59–262 2850— CurvePDF
SJ95-15 SJ951550 63 40–120 64–281 2850— CurvePDF
SJ95-16 SJ951650 63 40–120 70–301 2850— CurvePDF
SJ95-17 SJ951750 75 40–120 75–321 2850— CurvePDF
SJ95-18 SJ951850 75 40–120 81–342 2850— CurvePDF
SJ120-1 SJ120150 11 60–150 16.5–22.5 2850— CurvePDF
SJ120-2-2 SJ120250 15 60–150 24–33.5 2850— CurvePDF
SJ120-2-1 SJ120250 18.5 60–150 28–40.5 2850— CurvePDF
SJ120-2 SJ120250 22 60–150 34–45.5 2850— CurvePDF
SJ120-3-2 SJ120350 25 60–150 40.5–55 2850— CurvePDF
SJ120-3-1 SJ120350 30 60–150 46–62.5 2850— CurvePDF
SJ120-3 SJ120350 30 60–150 51–68 2850— CurvePDF
SJ120-4-2 SJ120450 37 60–150 57.5–78.5 2850— CurvePDF
SJ120-4-1 SJ120450 37 60–150 64–85 2850— CurvePDF
SJ120-4 SJ120450 37 60–150 68–90.5 2850— CurvePDF
SJ120-5-2 SJ120550 45 60–150 74.5–102 2850— CurvePDF
SJ120-5-1 SJ120550 45 60–150 82–108.5 2850— CurvePDF
SJ120-5 SJ120550 55 60–150 85–113.5 2850— CurvePDF
SJ120-6-2 SJ120650 55 60–150 90.5–125 2850— CurvePDF
SJ120-6-1 SJ120650 55 60–150 98–131 2850— CurvePDF
SJ120-6 SJ120650 63 60–150 102–136 2850— CurvePDF
SJ120-7-2 SJ120750 63 60–150 106–147 2850— CurvePDF
SJ120-7-1 SJ120750 63 60–150 112.5–153 2850— CurvePDF
SJ120-7 SJ120750 75 60–150 119.5–159 2850— CurvePDF
SJ120-8-2 SJ120850 75 60–150 123–170 2850— CurvePDF
SJ120-8-1 SJ120850 75 60–150 129.5–175.5 2850— CurvePDF
SJ120-8 SJ120850 75 60–150 136.5–181.5 2850— CurvePDF
SJ120-9-2 SJ120950 90 60–150 140–192.5 2850— CurvePDF
SJ120-9-1 SJ120950 90 60–150 147–198 2850— CurvePDF
SJ120-9 SJ120950 90 60–150 153.5–204 2850— CurvePDF
SJ120-10-2 SJ1201050 90 60–150 157.5–215.5 2850— CurvePDF
SJ120-10-1 SJ1201050 90 60–150 164–221 2850— CurvePDF
SJ120-10 SJ1201050 110 60–150 170.5–227 2850— CurvePDF
SJ120-11-2 SJ1201150 110 60–150 174.5–238 2850— CurvePDF
SJ120-11-1 SJ1201150 110 60–150 181–243.5 2850— CurvePDF
SJ120-11 SJ1201150 110 60–150 187.5–250 2850— CurvePDF
SJ150-1-1 SJ150150 9.2 80–180 11.5–18.5 2850— CurvePDF
SJ150-1 SJ150150 13 80–180 18–24 2850— CurvePDF
SJ150-2-2 SJ150250 18.5 80–180 25–35.5 2850— CurvePDF
SJ150-2-1 SJ150250 22 80–180 31–43 2850— CurvePDF
SJ150-2 SJ150250 25 80–180 36–48.5 2850— CurvePDF
SJ150-3-2 SJ150350 30 80–180 43–60 2850— CurvePDF
SJ150-3-1 SJ150350 37 80–180 49–66.5 2850— CurvePDF
SJ150-3 SJ150350 37 80–180 54.5–74.5 2850— CurvePDF
SJ150-4-2 SJ150450 45 80–180 61–85.5 2850— CurvePDF
SJ150-4-1 SJ150450 45 80–180 67–93 2850— CurvePDF
SJ150-4 SJ150450 55 80–180 73–100.5 2850— CurvePDF
SJ150-5-2 SJ150550 55 80–180 78.5–111.5 2850— CurvePDF
SJ150-5-1 SJ150550 55 80–180 85–118.5 2850— CurvePDF
SJ150-5 SJ150550 63 80–180 91.5–126 2850— CurvePDF
SJ150-6-2 SJ150650 63 80–180 97–137 2850— CurvePDF
SJ150-6-1 SJ150650 75 80–180 103.5–144 2850— CurvePDF
SJ150-6 SJ150650 75 80–180 110–151.5 2850— CurvePDF
SJ150-7-2 SJ150750 75 80–180 115–162.5 2850— CurvePDF
SJ150-7-1 SJ150750 90 80–180 121.5–169.5 2850— CurvePDF
SJ150-7 SJ150750 90 80–180 128–177 2850— CurvePDF
SJ150-8-2 SJ150850 90 80–180 133.5–188 2850— CurvePDF
SJ150-8-1 SJ150850 110 80–180 140–195 2850— CurvePDF
SJ150-8 SJ150850 110 80–180 146.5–202.5 2850— CurvePDF
SJ150-9-2 SJ150950 110 80–180 152–213.5 2850— CurvePDF
SJ150-9-1 SJ150950 110 80–180 158.5–220.5 2850— CurvePDF
SJ150-9 SJ150950 110 80–180 165–228 2850— CurvePDF
SJ200-1 SJ200150 30 100–240 29–37 2850— CurvePDF
SJ200-2-2B SJ200250 37 100–240 31–51 2850— CurvePDF
SJ200-2-2A SJ200250 45 100–240 39–57.5 2850— CurvePDF
SJ200-2-A SJ200250 55 100–240 49.5–66.5 2850— CurvePDF
SJ200-2 SJ200250 55 100–240 59.5–76 2850— CurvePDF
SJ200-3-2B SJ200350 75 100–240 63–88.5 2850— CurvePDF
SJ200-3-A-B SJ200350 75 100–240 65–92 2850— CurvePDF
SJ200-3-2A SJ200350 75 100–240 69.5–96 2850— CurvePDF
SJ200-3-B SJ200350 75 100–240 75–101 2850— CurvePDF
SJ200-3-A SJ200350 75 100–240 79–104.5 2850— CurvePDF
SJ200-3 SJ200350 90 100–240 89–113.5 2850— CurvePDF
SJ200-4-2B SJ200450 90 100–240 91–127 2850— CurvePDF
SJ200-4-2A SJ200450 110 100–240 99–134 2850— CurvePDF
SJ200-4-A SJ200450 110 100–240 109.5–143 2850— CurvePDF
SJ200-4 SJ200450 110 100–240 117–152 2850— CurvePDF
SJ1-4 SJ1460 0.37 0.2–1.8 22.5–33 3450— CurvePDF
SJ1-7 SJ1760 0.55 0.2–1.8 41–58.5 3450— CurvePDF
SJ1-10 SJ11060 0.75 0.2–1.8 59–85 3450— CurvePDF
SJ1-15 SJ11560 1.1 0.2–1.8 89–127 3450— CurvePDF
SJ1-20 SJ12060 1.5 0.2–1.8 119–170 3450— CurvePDF
SJ1-25 SJ12560 2.2 0.2–1.8 149–213 3450— CurvePDF
SJ1-29 SJ12960 2.2 0.2–1.8 172–247 3450— CurvePDF
SJ1-35 SJ13560 3 0.2–1.8 209–297 3450— CurvePDF
SJ3-3 SJ3360 0.37 0.6–4.6 9–25 3450— CurvePDF
SJ3-5 SJ3560 0.55 0.6–4.6 16–43 3450— CurvePDF
SJ3-7 SJ3760 0.75 0.6–4.6 23–60 3450— CurvePDF
SJ3-10 SJ31060 1.1 0.6–4.6 33–86 3450— CurvePDF
SJ3-14 SJ31460 1.5 0.6–4.6 46–121 3450— CurvePDF
SJ3-19 SJ31960 2.2 0.6–4.6 63–164 3450— CurvePDF
SJ3-23 SJ32360 3 0.6–4.6 76–199 3450— CurvePDF
SJ3-27 SJ32760 3 0.6–4.6 89–233 3450— CurvePDF
SJ3-33 SJ33360 4 0.6–4.6 110–286 3450— CurvePDF
SJ5-3 SJ5360 0.55 1–7.5 8.5–24 3450— CurvePDF
SJ5-5 SJ5560 0.75 1–7.5 15.5–41 3450— CurvePDF
SJ5-7 SJ5760 1.1 1–7.5 22–57 3450— CurvePDF
SJ5-10 SJ51060 1.5 1–7.5 31–83 3450— CurvePDF
SJ5-14 SJ51460 2.2 1–7.5 44–116 3450— CurvePDF
SJ5-19 SJ51960 3 1–7.5 60–158 3450— CurvePDF
SJ5-22 SJ52260 4 1–7.5 69–183 3450— CurvePDF
SJ5-26 SJ52660 4 1–7.5 82–216 3450— CurvePDF
SJ5-34 SJ53460 5.5 1–7.5 107–282 3450— CurvePDF
SJ8-3 SJ8360 1.1 2–12 13.5–24 3450— CurvePDF
SJ8-4 SJ8460 1.1 2–12 18–32 3450— CurvePDF
SJ8-5 SJ8560 1.5 2–12 22.5–40 3450— CurvePDF
SJ8-7 SJ8760 2.2 2–12 32–56 3450— CurvePDF
SJ8-8 SJ8860 2.2 2–12 36–64 3450— CurvePDF
SJ8-9 SJ8960 3 2–12 41–72 3450— CurvePDF
SJ8-11 SJ81160 3 2–12 50–88 3450— CurvePDF
SJ8-12 SJ81260 4 2–12 54–97 3450— CurvePDF
SJ8-15 SJ81560 4 2–12 68–121 3450— CurvePDF
SJ8-18 SJ81860 5.5 2–12 81–147 3450— CurvePDF
SJ8-21 SJ82160 5.5 2–12 95–171 3450— CurvePDF
SJ8-25 SJ82560 7.5 2–12 113–201 3450— CurvePDF
SJ8-28 SJ82860 7.5 2–12 126–225 3450— CurvePDF
SJ12-3 SJ12360 2.2 4–21 12–27 3450— CurvePDF
SJ12-4 SJ12460 2.2 4–21 16.5–36 3450— CurvePDF
SJ12-5 SJ12560 3 4–21 21–45 3450— CurvePDF
SJ12-7 SJ12760 4 4–21 28–63 3450— CurvePDF
SJ12-8 SJ12860 5.5 4–21 32–72 3450— CurvePDF
SJ12-10 SJ121060 5.5 4–21 40–90 3450— CurvePDF
SJ12-12 SJ121260 7.5 4–21 49–108 3450— CurvePDF
SJ12-14 SJ121460 7.5 4–21 57–126 3450— CurvePDF
SJ17-1 SJ17160 1.1 4–26 5–14 3450— CurvePDF
SJ17-2 SJ17260 2.2 4–26 11.5–28 3450— CurvePDF
SJ17-3 SJ17360 3 4–26 19–44 3450— CurvePDF
SJ17-4 SJ17460 4 4–26 26–60 3450— CurvePDF
SJ17-5 SJ17560 5.5 4–26 33–75 3450— CurvePDF
SJ17-6 SJ17660 7.5 4–26 40–90 3450— CurvePDF
SJ17-7 SJ17760 7.5 4–26 48–106 3450— CurvePDF
SJ17-8 SJ17860 9.2 4–26 55–121 3450— CurvePDF
SJ17-9 SJ17960 9.2 4–26 62–137 3450— CurvePDF
SJ17-10 SJ171060 11 4–26 69–153 3450— CurvePDF
SJ17-11 SJ171160 11 4–26 76–168 3450— CurvePDF
SJ17-12 SJ171260 13 4–26 84–183 3450— CurvePDF
SJ17-13 SJ171360 13 4–26 91–199 3450— CurvePDF
SJ17-14 SJ171460 15 4–26 98–214 3450— CurvePDF
SJ17-15 SJ171560 15 4–26 105–229 3450— CurvePDF
SJ17-16 SJ171660 18.5 4–26 112–244 3450— CurvePDF
SJ17-17 SJ171760 18.5 4–26 119–260 3450— CurvePDF
SJ17-18 SJ171860 18.5 4–26 126–275 3450— CurvePDF
SJ30-1 SJ30160 1.5 8–46 4.5–16 3450— CurvePDF
SJ30-2 SJ30260 3 8–46 11.5–32 3450— CurvePDF
SJ30-3 SJ30360 5.5 8–46 17.5–48 3450— CurvePDF
SJ30-4 SJ30460 7.5 8–46 25–64 3450— CurvePDF
SJ30-5 SJ30560 7.5 8–46 31–81 3450— CurvePDF
SJ30-6 SJ30660 9.2 8–46 39–97 3450— CurvePDF
SJ30-7 SJ30760 11 8–46 45–113 3450— CurvePDF
SJ30-8 SJ30860 13 8–46 52–129 3450— CurvePDF
SJ30-9 SJ30960 15 8–46 58–145 3450— CurvePDF
SJ30-10 SJ301060 15 8–46 65–162 3450— CurvePDF
SJ30-11 SJ301160 18.5 8–46 71–178 3450— CurvePDF
SJ30-12 SJ301260 18.5 8–46 77–195 3450— CurvePDF
SJ30-13 SJ301360 22 8–46 84–211 3450— CurvePDF
SJ30-14 SJ301460 22 8–46 90–227 3450— CurvePDF
SJ30-15 SJ301560 25 8–46 97–244 3450— CurvePDF
SJ30-16 SJ301660 25 8–46 103–260 3450— CurvePDF
SJ30-17 SJ301760 25 8–46 110–276 3450— CurvePDF
SJ42-1 SJ42160 3 10–70 5–17 3450— CurvePDF
SJ42-2 SJ42260 5.5 10–70 12.5–36 3450— CurvePDF
SJ42-3 SJ42360 9.2 10–70 20–55 3450— CurvePDF
SJ42-4 SJ42460 11 10–70 27–74 3450— CurvePDF
SJ42-5 SJ42560 13 10–70 35–93 3450— CurvePDF
SJ42-6 SJ42660 18.5 10–70 43–111 3450— CurvePDF
SJ42-7 SJ42760 18.5 10–70 50–131 3450— CurvePDF
SJ42-8 SJ42860 22 10–70 56–150 3450— CurvePDF
SJ42-9 SJ42960 25 10–70 64–168 3450— CurvePDF
SJ42-10 SJ421060 30 10–70 72–187 3450— CurvePDF
SJ42-11 SJ421160 30 10–70 79–206 3450— CurvePDF
SJ42-12 SJ421260 37 10–70 87–225 3450— CurvePDF
SJ42-13 SJ421360 37 10–70 94–244 3450— CurvePDF
SJ42-14 SJ421460 37 10–70 101–263 3450— CurvePDF
SJ60-1 SJ60160 4 10–90 3–19 3450— CurvePDF
SJ60-2 SJ60260 7.5 10–90 8.5–39 3450— CurvePDF
SJ60-3-2 SJ60360 7.5 10–90 8.5–49 3450— CurvePDF
SJ60-3 SJ60360 9.2 10–90 16–60 3450— CurvePDF
SJ60-4 SJ60460 13 10–90 23–80 3450— CurvePDF
SJ60-5 SJ60560 15 10–90 31–100 3450— CurvePDF
SJ60-6 SJ60660 18.5 10–90 38–120 3450— CurvePDF
SJ60-7 SJ60760 22 10–90 44–140 3450— CurvePDF
SJ60-8-2 SJ60860 22 10–90 44–152 3450— CurvePDF
SJ60-8 SJ60860 25 10–90 51–161 3450— CurvePDF
SJ60-9-2 SJ60960 25 10–90 51–172 3450— CurvePDF
SJ60-9 SJ60960 30 10–90 58–181 3450— CurvePDF
SJ60-10 SJ601060 30 10–90 65–202 3450— CurvePDF
SJ60-11 SJ601160 37 10–90 71–223 3450— CurvePDF
SJ60-12 SJ601260 37 10–90 77–244 3450— CurvePDF
SJ75-1 SJ75160 7.5 40–120 8–25 3450— CurvePDF
SJ75-2 SJ75260 13 40–120 19.5–52 3450— CurvePDF
SJ75-3 SJ75360 22 40–120 31.5–78.5 3450— CurvePDF
SJ75-4 SJ75460 30 40–120 44–107 3450— CurvePDF
SJ75-5 SJ75560 37 40–120 57–134 3450— CurvePDF
SJ75-6 SJ75660 45 40–120 70–160 3450— CurvePDF
SJ75-7 SJ75760 45 40–120 83–188 3450— CurvePDF
SJ75-8 SJ75860 55 40–120 97–214 3450— CurvePDF
SJ75-9 SJ75960 63 40–120 110–240 3450— CurvePDF
SJ75-10 SJ751060 75 40–120 123–267 3450— CurvePDF
SJ75-11 SJ751160 75 40–120 135–292 3450— CurvePDF
SJ95-1 SJ95160 7.5 50–130 8.5–25 3450— CurvePDF
SJ95-2 SJ95260 15 50–145 5–52 3450— CurvePDF
SJ95-3 SJ95360 22 50–145 9–78.5 3450— CurvePDF
SJ95-4 SJ95460 30 50–145 15–105 3450— CurvePDF
SJ95-5 SJ95560 37 50–145 20–133 3450— CurvePDF
SJ95-6 SJ95660 45 50–145 26–160 3450— CurvePDF
SJ95-7 SJ95760 55 50–145 32–187 3450— CurvePDF
SJ95-8 SJ95860 63 50–145 37–214 3450— CurvePDF
SJ95-9 SJ95960 63 50–145 45–242 3450— CurvePDF
SJ95-10 SJ951060 75 50–145 52–269 3450— CurvePDF
SJ120-1-1 SJ120160 15 70–170 16.5–25 3450— CurvePDF
SJ120-1 SJ120160 18.5 70–170 25.5–32.5 3450— CurvePDF
SJ120-2-2 SJ120260 25 70–170 36.5–48.5 3450— CurvePDF
SJ120-2-1 SJ120260 30 70–170 43.5–58.5 3450— CurvePDF
SJ120-2 SJ120260 37 70–170 52–66 3450— CurvePDF
SJ120-3-2 SJ120360 45 70–170 62.5–80.5 3450— CurvePDF
SJ120-3-1 SJ120360 45 70–170 70–91.5 3450— CurvePDF
SJ120-3 SJ120360 55 70–170 78.5–99.5 3450— CurvePDF
SJ120-4-2 SJ120460 63 70–170 89–114.5 3450— CurvePDF
SJ120-4-1 SJ120460 63 70–170 98–124.5 3450— CurvePDF
SJ120-4 SJ120460 75 70–170 105–132.5 3450— CurvePDF
SJ120-5-2 SJ120560 75 70–170 115–149.5 3450— CurvePDF
SJ120-5-1 SJ120560 90 70–170 126–158.5 3450— CurvePDF
SJ120-5 SJ120560 90 70–170 131–166 3450— CurvePDF
SJ120-6-2 SJ120660 90 70–170 139.5–182.5 3450— CurvePDF
SJ120-6-1 SJ120660 110 70–170 150.5–192.5 3450— CurvePDF
SJ120-6 SJ120660 110 70–170 159.5–199.5 3450— CurvePDF
SJ120-7-2 SJ120760 110 70–170 164–215 3450— CurvePDF
SJ150-1-1 SJ150160 15 90–200 19.5–27.5 3450— CurvePDF
SJ150-1 SJ150160 22 90–200 28–36 3450— CurvePDF
SJ150-2-2 SJ150260 30 90–200 40–53 3450— CurvePDF
SJ150-2-1 SJ150260 37 90–200 49–63.5 3450— CurvePDF
SJ150-2 SJ150260 45 90–200 56.5–71.5 3450— CurvePDF
SJ150-3-2 SJ150360 55 90–200 67–88 3450— CurvePDF
SJ150-3-1 SJ150360 63 90–200 76.5–98.5 3450— CurvePDF
SJ150-3 SJ150360 63 90–200 85.5–109.5 3450— CurvePDF
SJ150-4-2 SJ150460 75 90–200 95.5–126 3450— CurvePDF
SJ150-4-1 SJ150460 90 90–200 105.5–136.5 3450— CurvePDF
SJ150-4 SJ150460 90 90–200 115.5–147 3450— CurvePDF
SJ150-5-2 SJ150560 110 90–200 124–163 3450— CurvePDF
SJ150-5-1 SJ150560 110 90–200 134–173.5 3450— CurvePDF
SJ150-5 SJ150560 110 90–200 145–184 3450— CurvePDF
SJ200-1-B SJ200160 30 120–260 26.5–38 3450— CurvePDF
SJ200-1-A SJ200160 37 120–260 32–43 3450— CurvePDF
SJ200-1 SJ200160 45 120–260 46–54 3450— CurvePDF
SJ200-2-2B SJ200260 55 120–260 52–74 3450— CurvePDF
SJ200-2-2A SJ200260 75 120–260 63–83.5 3450— CurvePDF
SJ200-2-B SJ200260 75 120–260 72.5–92 3450— CurvePDF
SJ200-2-A SJ200260 90 120–260 78–96.5 3450— CurvePDF
SJ200-2 SJ200260 90 120–260 93–110.5 3450— CurvePDF
SJ200-3-2B SJ200360 110 120–260 100–129 3450— CurvePDF
SJ200-3-A-B SJ200360 110 120–260 104–134 3450— CurvePDF
SJ200-3-2A SJ200360 110 120–260 111–139.5 3450— CurvePDF

Performance range

Every model of the SJ (deep-well submersible) range on one chart: each line is the performance curve of one model. Click a line or dot to open that model with its full data.

0.20.51251020501002005102050100200Flow (m³/h)Head (m)SJ1-6 · 50 HzSJ1-9 · 50 HzSJ1-13 · 50 HzSJ1-17 · 50 HzSJ1-21 · 50 HzSJ1-25 · 50 HzSJ1-28 · 50 HzSJ1-32 · 50 HzSJ1-36 · 50 HzSJ1-39 · 50 HzSJ1-42 · 50 HzSJ1-46 · 50 HzSJ1-50 · 50 HzSJ3-6 · 50 HzSJ3-9 · 50 HzSJ3-12 · 50 HzSJ3-15 · 50 HzSJ3-18 · 50 HzSJ3-22 · 50 HzSJ3-27 · 50 HzSJ3-32 · 50 HzSJ3-38 · 50 HzSJ3-43 · 50 HzSJ5-4 · 50 HzSJ5-6 · 50 HzSJ5-8 · 50 HzSJ5-12 · 50 HzSJ5-17 · 50 HzSJ5-21 · 50 HzSJ5-25 · 50 HzSJ5-29 · 50 HzSJ5-33 · 50 HzSJ5-38 · 50 HzSJ5-43 · 50 HzSJ8-5 · 50 HzSJ8-7 · 50 HzSJ8-10 · 50 HzSJ8-12 · 50 HzSJ8-15 · 50 HzSJ8-18 · 50 HzSJ8-21 · 50 HzSJ8-25 · 50 HzSJ8-30 · 50 HzSJ8-37 · 50 HzSJ8-44 · 50 HzSJ8-50 · 50 HzSJ12-5 · 50 HzSJ12-7 · 50 HzSJ12-10 · 50 HzSJ12-13 · 50 HzSJ12-15 · 50 HzSJ12-18 · 50 HzSJ12-21 · 50 HzSJ12-25 · 50 HzSJ17-1 · 50 HzSJ17-2 · 50 HzSJ17-3 · 50 HzSJ17-4 · 50 HzSJ17-5 · 50 HzSJ17-6 · 50 HzSJ17-7 · 50 HzSJ17-8 · 50 HzSJ17-9 · 50 HzSJ17-10 · 50 HzSJ17-11 · 50 HzSJ17-12 · 50 HzSJ17-13 · 50 HzSJ17-14 · 50 HzSJ17-15 · 50 HzSJ17-16 · 50 HzSJ17-17 · 50 HzSJ17-18 · 50 HzSJ17-19 · 50 HzSJ17-20 · 50 HzSJ17-21 · 50 HzSJ17-22 · 50 HzSJ17-23 · 50 HzSJ17-24 · 50 HzSJ17-25 · 50 HzSJ17-26 · 50 HzSJ30-1 · 50 HzSJ30-2 · 50 HzSJ30-3 · 50 HzSJ30-4 · 50 HzSJ30-5 · 50 HzSJ30-6 · 50 HzSJ30-7 · 50 HzSJ30-8 · 50 HzSJ30-9 · 50 HzSJ30-10 · 50 HzSJ30-11 · 50 HzSJ30-12 · 50 HzSJ30-13 · 50 HzSJ30-14 · 50 HzSJ30-15 · 50 HzSJ30-16 · 50 HzSJ30-17 · 50 HzSJ30-18 · 50 HzSJ30-19 · 50 HzSJ30-20 · 50 HzSJ30-21 · 50 HzSJ30-22 · 50 HzSJ30-23 · 50 HzSJ30-24 · 50 HzSJ30-25 · 50 HzSJ42-1 · 50 HzSJ42-2 · 50 HzSJ42-3 · 50 HzSJ42-4 · 50 HzSJ42-5 · 50 HzSJ42-6 · 50 HzSJ42-7 · 50 HzSJ42-8 · 50 HzSJ42-9 · 50 HzSJ42-10 · 50 HzSJ42-11 · 50 HzSJ42-12 · 50 HzSJ42-13 · 50 HzSJ42-14 · 50 HzSJ42-15 · 50 HzSJ42-16 · 50 HzSJ42-17 · 50 HzSJ42-18 · 50 HzSJ42-19 · 50 HzSJ42-20 · 50 HzSJ42-21 · 50 HzSJ42-22 · 50 HzSJ60-1 · 50 HzSJ60-2-2 · 50 HzSJ60-2 · 50 HzSJ60-3 · 50 HzSJ60-4 · 50 HzSJ60-5 · 50 HzSJ60-6 · 50 HzSJ60-7 · 50 HzSJ60-8-2 · 50 HzSJ60-8 · 50 HzSJ60-9-2 · 50 HzSJ60-9 · 50 HzSJ60-10 · 50 HzSJ60-11 · 50 HzSJ60-12 · 50 HzSJ60-13 · 50 HzSJ60-14 · 50 HzSJ60-15 · 50 HzSJ60-16 · 50 HzSJ60-17 · 50 HzSJ60-18 · 50 HzSJ60-19 · 50 HzSJ60-20 · 50 HzSJ60-21 · 50 HzSJ75-1 · 50 HzSJ75-2 · 50 HzSJ75-3 · 50 HzSJ75-4 · 50 HzSJ75-5 · 50 HzSJ75-6 · 50 HzSJ75-7 · 50 HzSJ75-8 · 50 HzSJ75-9 · 50 HzSJ75-10 · 50 HzSJ75-11 · 50 HzSJ75-12 · 50 HzSJ75-13 · 50 HzSJ75-14 · 50 HzSJ75-15 · 50 HzSJ75-16 · 50 HzSJ75-17 · 50 HzSJ75-18 · 50 HzSJ75-19 · 50 HzSJ75-20 · 50 HzSJ95-1 · 50 HzSJ95-2 · 50 HzSJ95-3 · 50 HzSJ95-4 · 50 HzSJ95-5 · 50 HzSJ95-6 · 50 HzSJ95-7 · 50 HzSJ95-8 · 50 HzSJ95-9 · 50 HzSJ95-10 · 50 HzSJ95-11 · 50 HzSJ95-12 · 50 HzSJ95-13 · 50 HzSJ95-14 · 50 HzSJ95-15 · 50 HzSJ95-16 · 50 HzSJ95-17 · 50 HzSJ95-18 · 50 HzSJ120-1 · 50 HzSJ120-2-2 · 50 HzSJ120-2-1 · 50 HzSJ120-2 · 50 HzSJ120-3-2 · 50 HzSJ120-3-1 · 50 HzSJ120-3 · 50 HzSJ120-4-2 · 50 HzSJ120-4-1 · 50 HzSJ120-4 · 50 HzSJ120-5-2 · 50 HzSJ120-5-1 · 50 HzSJ120-5 · 50 HzSJ120-6-2 · 50 HzSJ120-6-1 · 50 HzSJ120-6 · 50 HzSJ120-7-2 · 50 HzSJ120-7-1 · 50 HzSJ120-7 · 50 HzSJ120-8-2 · 50 HzSJ120-8-1 · 50 HzSJ120-8 · 50 HzSJ120-9-2 · 50 HzSJ120-9-1 · 50 HzSJ120-9 · 50 HzSJ120-10-2 · 50 HzSJ120-10-1 · 50 HzSJ120-10 · 50 HzSJ120-11-2 · 50 HzSJ120-11-1 · 50 HzSJ120-11 · 50 HzSJ150-1-1 · 50 HzSJ150-1 · 50 HzSJ150-2-2 · 50 HzSJ150-2-1 · 50 HzSJ150-2 · 50 HzSJ150-3-2 · 50 HzSJ150-3-1 · 50 HzSJ150-3 · 50 HzSJ150-4-2 · 50 HzSJ150-4-1 · 50 HzSJ150-4 · 50 HzSJ150-5-2 · 50 HzSJ150-5-1 · 50 HzSJ150-5 · 50 HzSJ150-6-2 · 50 HzSJ150-6-1 · 50 HzSJ150-6 · 50 HzSJ150-7-2 · 50 HzSJ150-7-1 · 50 HzSJ150-7 · 50 HzSJ150-8-2 · 50 HzSJ150-8-1 · 50 HzSJ150-8 · 50 HzSJ150-9-2 · 50 HzSJ150-9-1 · 50 HzSJ150-9 · 50 HzSJ200-1 · 50 HzSJ200-2-2B · 50 HzSJ200-2-2A · 50 HzSJ200-2-A · 50 HzSJ200-2 · 50 HzSJ200-3-2B · 50 HzSJ200-3-A-B · 50 HzSJ200-3-2A · 50 HzSJ200-3-B · 50 HzSJ200-3-A · 50 HzSJ200-3 · 50 HzSJ200-4-2B · 50 HzSJ200-4-2A · 50 HzSJ200-4-A · 50 HzSJ200-4 · 50 HzSJ1-4 · 60 HzSJ1-7 · 60 HzSJ1-10 · 60 HzSJ1-15 · 60 HzSJ1-20 · 60 HzSJ1-25 · 60 HzSJ1-29 · 60 HzSJ1-35 · 60 HzSJ3-3 · 60 HzSJ3-5 · 60 HzSJ3-7 · 60 HzSJ3-10 · 60 HzSJ3-14 · 60 HzSJ3-19 · 60 HzSJ3-23 · 60 HzSJ3-27 · 60 HzSJ3-33 · 60 HzSJ5-3 · 60 HzSJ5-5 · 60 HzSJ5-7 · 60 HzSJ5-10 · 60 HzSJ5-14 · 60 HzSJ5-19 · 60 HzSJ5-22 · 60 HzSJ5-26 · 60 HzSJ5-34 · 60 HzSJ8-3 · 60 HzSJ8-4 · 60 HzSJ8-5 · 60 HzSJ8-7 · 60 HzSJ8-8 · 60 HzSJ8-9 · 60 HzSJ8-11 · 60 HzSJ8-12 · 60 HzSJ8-15 · 60 HzSJ8-18 · 60 HzSJ8-21 · 60 HzSJ8-25 · 60 HzSJ8-28 · 60 HzSJ12-3 · 60 HzSJ12-4 · 60 HzSJ12-5 · 60 HzSJ12-7 · 60 HzSJ12-8 · 60 HzSJ12-10 · 60 HzSJ12-12 · 60 HzSJ12-14 · 60 HzSJ17-1 · 60 HzSJ17-2 · 60 HzSJ17-3 · 60 HzSJ17-4 · 60 HzSJ17-5 · 60 HzSJ17-6 · 60 HzSJ17-7 · 60 HzSJ17-8 · 60 HzSJ17-9 · 60 HzSJ17-10 · 60 HzSJ17-11 · 60 HzSJ17-12 · 60 HzSJ17-13 · 60 HzSJ17-14 · 60 HzSJ17-15 · 60 HzSJ17-16 · 60 HzSJ17-17 · 60 HzSJ17-18 · 60 HzSJ30-1 · 60 HzSJ30-2 · 60 HzSJ30-3 · 60 HzSJ30-4 · 60 HzSJ30-5 · 60 HzSJ30-6 · 60 HzSJ30-7 · 60 HzSJ30-8 · 60 HzSJ30-9 · 60 HzSJ30-10 · 60 HzSJ30-11 · 60 HzSJ30-12 · 60 HzSJ30-13 · 60 HzSJ30-14 · 60 HzSJ30-15 · 60 HzSJ30-16 · 60 HzSJ30-17 · 60 HzSJ42-1 · 60 HzSJ42-2 · 60 HzSJ42-3 · 60 HzSJ42-4 · 60 HzSJ42-5 · 60 HzSJ42-6 · 60 HzSJ42-7 · 60 HzSJ42-8 · 60 HzSJ42-9 · 60 HzSJ42-10 · 60 HzSJ42-11 · 60 HzSJ42-12 · 60 HzSJ42-13 · 60 HzSJ42-14 · 60 HzSJ60-1 · 60 HzSJ60-2 · 60 HzSJ60-3-2 · 60 HzSJ60-3 · 60 HzSJ60-4 · 60 HzSJ60-5 · 60 HzSJ60-6 · 60 HzSJ60-7 · 60 HzSJ60-8-2 · 60 HzSJ60-8 · 60 HzSJ60-9-2 · 60 HzSJ60-9 · 60 HzSJ60-10 · 60 HzSJ60-11 · 60 HzSJ60-12 · 60 HzSJ75-1 · 60 HzSJ75-2 · 60 HzSJ75-3 · 60 HzSJ75-4 · 60 HzSJ75-5 · 60 HzSJ75-6 · 60 HzSJ75-7 · 60 HzSJ75-8 · 60 HzSJ75-9 · 60 HzSJ75-10 · 60 HzSJ75-11 · 60 HzSJ95-1 · 60 HzSJ95-2 · 60 HzSJ95-3 · 60 HzSJ95-4 · 60 HzSJ95-5 · 60 HzSJ95-6 · 60 HzSJ95-7 · 60 HzSJ95-8 · 60 HzSJ95-9 · 60 HzSJ95-10 · 60 HzSJ120-1-1 · 60 HzSJ120-1 · 60 HzSJ120-2-2 · 60 HzSJ120-2-1 · 60 HzSJ120-2 · 60 HzSJ120-3-2 · 60 HzSJ120-3-1 · 60 HzSJ120-3 · 60 HzSJ120-4-2 · 60 HzSJ120-4-1 · 60 HzSJ120-4 · 60 HzSJ120-5-2 · 60 HzSJ120-5-1 · 60 HzSJ120-5 · 60 HzSJ120-6-2 · 60 HzSJ120-6-1 · 60 HzSJ120-6 · 60 HzSJ120-7-2 · 60 HzSJ150-1-1 · 60 HzSJ150-1 · 60 HzSJ150-2-2 · 60 HzSJ150-2-1 · 60 HzSJ150-2 · 60 HzSJ150-3-2 · 60 HzSJ150-3-1 · 60 HzSJ150-3 · 60 HzSJ150-4-2 · 60 HzSJ150-4-1 · 60 HzSJ150-4 · 60 HzSJ150-5-2 · 60 HzSJ150-5-1 · 60 HzSJ150-5 · 60 HzSJ200-1-B · 60 HzSJ200-1-A · 60 HzSJ200-1 · 60 HzSJ200-2-2B · 60 HzSJ200-2-2A · 60 HzSJ200-2-B · 60 HzSJ200-2-A · 60 HzSJ200-2 · 60 HzSJ200-3-2B · 60 HzSJ200-3-A-B · 60 HzSJ200-3-2A · 60 Hz

Logarithmic scales. Published catalogue data for clean water; the correct model for your duty is confirmed by our engineers.

Spare parts for SJ (deep-well submersible)

Parts list of the series with the material of each part. To order, send the model code and the part you need.

Parts list (PDF) Request spare parts quote
No.PartMaterialStandardApplies to
1Discharge headStainless steelAISI304 All sizes
3Valve capStainless steelAISI304 All sizes
5Discharge diffuserStainless steelAISI304 All sizes
6Impeller nutStainless steelAISI304 All sizes
7ImpellerStainless steelAISI304 All sizes
8Impeller coneStainless steelAISI304 All sizes
9DiffuserStainless steelAISI304 All sizes
10StrapsStainless steelAISI304 All sizes
11InducerStainless steelAISI304 All sizes
12Pump shaftStainless steelAISI304/420/431 All sizes
13Suction interconnectorStainless steelAISI304 All sizes
15Neck ringPBT/NBR— All sizes
16Cable guardStainless steelAISI304 All sizes
18Submersible motor—— All sizes
21Inlet spacerCarbon— All sizes
31Connecting sleeveStainless steelAISI304 All sizes

Technical data

Liquid temperature

  • Up to +25 °C liquid

Ambient conditions

  • Maximum diving depth 70 m

Motor

  • NEMA-interface submersible motors: 4" (oil-filled; single phase 0.37–2.2 kW, three phase 0.37–7.5 kW), 6" (three phase 4–37 kW), 8" (three phase 5.5–110 kW); motor protector must be fitted

Supply voltage

  • Single phase (4" motor up to 2.2 kW)
  • Three phase

Typical applications

  • Circulation or boosting of clean water, demineralised water
  • Water supply and irrigation systems
  • Lowering ground water level
  • Boosting
  • Other industrial uses

Pumped liquid

  • Clean, thin, non-corrosive liquid without grain or fibre; pH 6.5–8.5; maximum working pressure 38 bar.

Data basis

  • 50 Hz, 2850 or 2900 rpm, 20 °C air-free clean water, kinematic viscosity 1 mm²/s; curve tolerance ISO 9906:2012 Grade 3B
  • 60 Hz, 3450 rpm, 20 °C air-free clean water, kinematic viscosity 1 mm²/s; curve tolerance ISO 9906:2012 Grade 3B

Performance values are taken from the published CNP catalogue data. Our engineers confirm the final selection for your liquid, temperature, supply and site before quoting.

Other submersible & deep-well pumps

QF

Submersible drainage / utility

  • Flow 3–22 m³/h
  • Head up to 10 m
  • 0.12–1.5 kW
View series

Need a pump or a spare part?

Send us the flow and head you need, or the model code and nameplate details of the pump you are repairing. Our team replies with a quotation.

Request a Quotation +92 345 9547419
