NIS / NISF *G, *(Q)
End-suction centrifugal pump, NIS / NISF *G and *(Q) new-generation end-suction pump (50 Hz)
NIS / NISF *G, *(Q): end-suction centrifugal pump from the CNP range. 71 models, flow 50 to 400 m³/h, head up to 160 m, motors 1.5 to 160 kW. Typical duties: clean, thin, non-corrosive, non-flammable and non-explosive liquids without grain or fibre: water supply, hvac, boosting and constant-pressure supply, fire fighting, irrigation and farming, industrial cooling and heat circulation, industrial transfer and drainage. Open a model for its rated duty, dimensions and datasheet, or send us your duty and we will confirm the selection.
- Single-stage, single-suction, horizontal, axial suction and radial discharge; non-self-priming
- Pull-back structure: service without dismantling the pump body or pipework

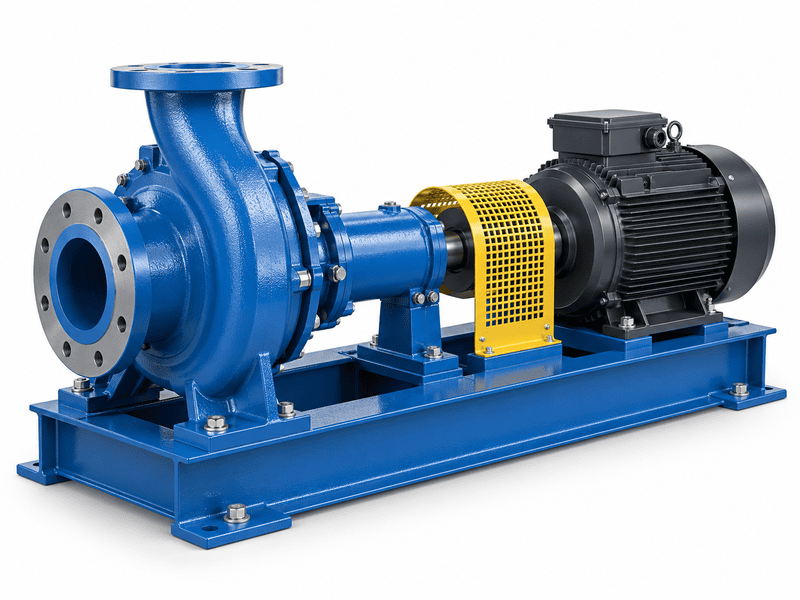

- NISO: bearing cradle with grease-lubricated deep-groove bearings, semi-flexible coupling, dimensions to ISO 2858

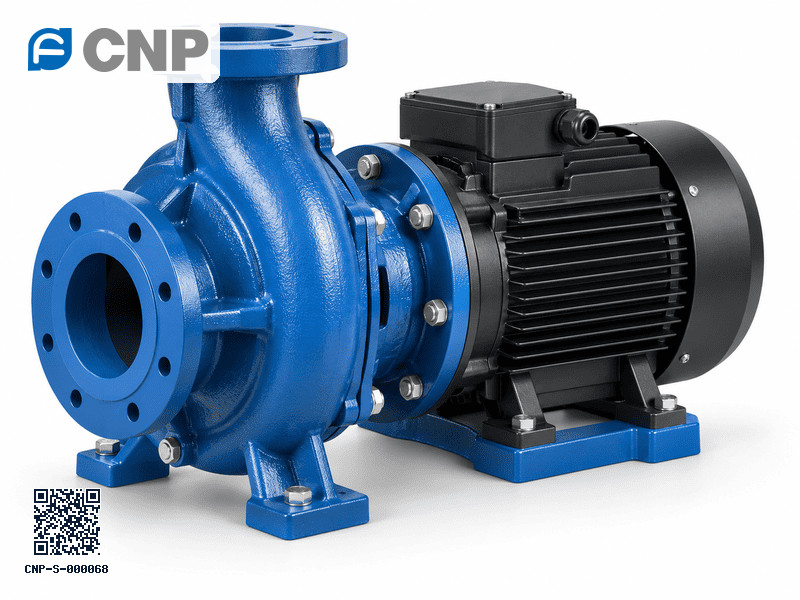

- NIS / NISF: compact extension-shaft design, motor directly coupled; NISF has stainless steel flow-passage parts
- NIS*G / NIS*(Q): new generation per GB/T 5662, CFD-optimised hydraulics, steeper curve than NIS/NISO; (Q) = low-flow type
CNP-S-000068- Flow
- 50–400 m³/h
- Head
- up to 160 m
- Power
- 1.5–160 kW
- Mains
- 50 Hz
- Models
- 71
- Liquid temp.
- -15 to +110 °C
Sizes
The 71 models of the NIS / NISF *G, *(Q) range grouped by type. Open the Models tab for every model with its performance data.
| Type | Flow range | Head | Power | Outlet | Models |
|---|---|---|---|---|---|
| 50-125-200G | 200 m³/h | 7–14 m | 5.5–11 kW | — | 3 |
| 100-65-200G | 50–100 m³/h | 13–80 m | 3–37 kW | DN65 | 6 |
| 100-65-250G | 50–100 m³/h | 24–116 m | 5.5–55 kW | DN65 | 4 |
| 100-65-315G | 50–100 m³/h | 40–160 m | 11–90 kW | DN65 | 4 |
| 100-80-160G | 50–100 m³/h | 7–44 m | 1.5–18.5 kW | DN80 | 5 |
| 125-100-200(Q) | 160 m³/h | 43–52 m | 30–37 kW | DN100 | 2 |
| 125-100-200G | 100–200 m³/h | 9.5–74 m | 4–75 kW | DN100 | 8 |
| 125-100-250G | 100–200 m³/h | 25–102 m | 11–90 kW | DN100 | 3 |
| 125-100-315G | 100–200 m³/h | 33–160 m | 15–160 kW | DN100 | 5 |
| 125-100-400G | 100 m³/h | 55–72 m | 30–45 kW | DN100 | 3 |
| 150-125-200(Q) | 160 m³/h | 8.5–16 m | 5.5–11 kW | DN125 | 3 |
| 150-125-250G | 200 m³/h | 18–27 m | 15–22 kW | DN125 | 3 |
| 150-125-315(Q) | 160 m³/h | 32–43 m | 22–30 kW | DN125 | 2 |
| 150-125-315G | 200 m³/h | 36–42 m | 30–37 kW | DN125 | 2 |
| 150-125-400(Q) | 160 m³/h | 50 m | 37 kW | DN125 | 1 |
| 150-125-400G | 200 m³/h | 54–71 m | 45–75 kW | DN125 | 3 |
| 200-150-250(Q) | 300 m³/h | 9.5–20 m | 11–22 kW | DN150 | 4 |
| 200-150-250G | 400 m³/h | 9–20 m | 15–30 kW | DN150 | 4 |
| 200-150-315G | 400 m³/h | 24–36 m | 37–55 kW | DN150 | 3 |
| 200-150-400G | 400 m³/h | 47–63 m | 75–110 kW | DN150 | 3 |
Models
Filter by duty point, mains frequency or size. Click a model for its performance curve and data.
| Model | Series | Flow m³/h | Head m | Power kW | rpm | Outlet | kg | |
|---|---|---|---|---|---|---|---|---|
| NIS100-65-200G/18.5 | 100-65-200G | 100 | 42 | 18.5 | 2950 | DN65 | 222 | Details |
| NIS100-65-200G/22 | 100-65-200G | 100 | 51 | 22 | 2950 | DN65 | 257 | Details |
| NIS100-65-200G/30 | 100-65-200G | 100 | 67 | 30 | 2950 | DN65 | 318 | Details |
| NIS100-65-200G/37 | 100-65-200G | 100 | 80 | 37 | 2950 | DN65 | 337 | Details |
| NIS100-65-250G/45 | 100-65-250G | 100 | 103 | 45 | 2950 | DN65 | 426 | Details |
| NIS100-65-250G/55 | 100-65-250G | 100 | 116 | 55 | 2950 | DN65 | 529 | Details |
| NIS100-65-315G/75 | 100-65-315G | 100 | 140 | 75 | 2950 | DN65 | 693 | Details |
| NIS100-65-315G/90 | 100-65-315G | 100 | 160 | 90 | 2950 | DN65 | 730 | Details |
| NIS100-80-160G/11 | 100-80-160G | 100 | 26 | 11 | 2950 | DN80 | 177 | Details |
| NIS100-80-160G/15 | 100-80-160G | 100 | 36 | 15 | 2950 | DN80 | 187 | Details |
| NIS100-80-160G/18.5 | 100-80-160G | 100 | 44 | 18.5 | 2950 | DN80 | 207 | Details |
| NIS125-100-200(Q)/30 | 125-100-200(Q) | 160 | 43 | 30 | 2950 | DN100 | 349 | Details |
| NIS125-100-200(Q)/37 | 125-100-200(Q) | 160 | 52 | 37 | 2950 | DN100 | 368 | Details |
| NIS125-100-200G/30 | 125-100-200G | 200 | 35 | 30 | 2950 | DN100 | 349 | Details |
| NIS125-100-200G/37 | 125-100-200G | 200 | 45 | 37 | 2950 | DN100 | 368 | Details |
| NIS125-100-200G/45 | 125-100-200G | 200 | 54 | 45 | 2950 | DN100 | 431 | Details |
| NIS125-100-200G/55 | 125-100-200G | 200 | 68 | 55 | 2950 | DN100 | 534 | Details |
| NIS125-100-200G/75 | 125-100-200G | 200 | 74 | 75 | 2950 | DN100 | 678 | Details |
| NIS125-100-250G/75 | 125-100-250G | 200 | 86 | 75 | 2950 | DN100 | 701 | Details |
| NIS125-100-250G/90 | 125-100-250G | 200 | 102 | 90 | 2950 | DN100 | 738 | Details |
| NIS125-100-315G/110 | 125-100-315G | 200 | 128 | 110 | 2950 | DN100 | 1170 | Details |
| NIS125-100-315G/132 | 125-100-315G | 200 | 150 | 132 | 2950 | DN100 | 1230 | Details |
| NIS125-100-315G/160 | 125-100-315G | 200 | 160 | 160 | 2950 | DN100 | 1350 | Details |
| NIS100-65-200G/3 | 100-65-200G | 50 | 13 | 3 | 1450 | DN65 | 109 | Details |
| NIS100-65-200G/4 | 100-65-200G | 50 | 17.5 | 4 | 1450 | DN65 | 114 | Details |
| NIS100-65-250G/5.5 | 100-65-250G | 50 | 24 | 5.5 | 1450 | DN65 | 147 | Details |
| NIS100-65-250G/7.5 | 100-65-250G | 50 | 28 | 7.5 | 1450 | DN65 | 166 | Details |
| NIS100-65-315G/11 | 100-65-315G | 50 | 40 | 11 | 1480 | DN65 | 249 | Details |
| NIS100-65-315G/15 | 100-65-315G | 50 | 45 | 15 | 1480 | DN65 | 270 | Details |
| NIS100-80-160G/1.5 | 100-80-160G | 50 | 7 | 1.5 | 1450 | DN80 | 76 | Details |
| NIS100-80-160G/2.2 | 100-80-160G | 50 | 10 | 2.2 | 1450 | DN80 | 87 | Details |
| NIS125-100-200G/4 | 125-100-200G | 100 | 9.5 | 4 | 1450 | DN100 | 136 | Details |
| NIS125-100-200G/5.5 | 125-100-200G | 100 | 13 | 5.5 | 1450 | DN100 | 152 | Details |
| NIS125-100-200G/7.5 | 125-100-200G | 100 | 18 | 7.5 | 1450 | DN100 | 171 | Details |
| NIS125-100-250G/11 | 125-100-250G | 100 | 25 | 11 | 1480 | DN100 | 258 | Details |
| NIS125-100-315G/15 | 125-100-315G | 100 | 33 | 15 | 1480 | DN100 | 281 | Details |
| NIS125-100-315G/18.5 | 125-100-315G | 100 | 40 | 18.5 | 1480 | DN100 | 317 | Details |
| NIS125-100-400G/30 | 125-100-400G | 100 | 55 | 30 | 1480 | DN100 | 444 | Details |
| NIS125-100-400G/37 | 125-100-400G | 100 | 68 | 37 | 1480 | DN100 | 523 | Details |
| NIS125-100-400G/45 | 125-100-400G | 100 | 72 | 45 | 1480 | DN100 | 552 | Details |
| NIS150-125-200(Q)/5.5 | 150-125-200(Q) | 160 | 8.5 | 5.5 | 1450 | DN125 | 168 | Details |
| NIS150-125-200(Q)/7.5 | 150-125-200(Q) | 160 | 12 | 7.5 | 1450 | DN125 | 180 | Details |
| NIS150-125-200(Q)/11 | 150-125-200(Q) | 160 | 16 | 11 | 1480 | DN125 | 235 | Details |
| NIS(F)50-125-200G/5.5 | 50-125-200G | 200 | 7 | 5.5 | 1450 | — | — | Details |
| NIS(F)50-125-200G/7.5 | 50-125-200G | 200 | 10 | 7.5 | 1450 | — | — | Details |
| NIS(F)50-125-200G/11 | 50-125-200G | 200 | 14 | 11 | 1480 | — | — | Details |
| NIS150-125-250G/15 | 150-125-250G | 200 | 18 | 15 | 1480 | DN125 | 284 | Details |
| NIS150-125-250G/18.5 | 150-125-250G | 200 | 23 | 18.5 | 1480 | DN125 | 315 | Details |
| NIS150-125-250G/22 | 150-125-250G | 200 | 27 | 22 | 1480 | DN125 | 333 | Details |
| NIS150-125-315(Q)/22 | 150-125-315(Q) | 160 | 32 | 22 | 1480 | DN125 | 400 | Details |
| NIS150-125-315(Q)/30 | 150-125-315(Q) | 160 | 43 | 30 | 1480 | DN125 | 430 | Details |
| NIS150-125-315G/30 | 150-125-315G | 200 | 36 | 30 | 1480 | DN125 | 430 | Details |
| NIS150-125-315G/37 | 150-125-315G | 200 | 42 | 37 | 1480 | DN125 | 507 | Details |
| NIS150-125-400(Q)/37 | 150-125-400(Q) | 160 | 50 | 37 | 1480 | DN125 | 521 | Details |
| NIS150-125-400G/45 | 150-125-400G | 200 | 54 | 45 | 1480 | DN125 | 561 | Details |
| NIS150-125-400G/55 | 150-125-400G | 200 | 64 | 55 | 1480 | DN125 | 620 | Details |
| NIS150-125-400G/75 | 150-125-400G | 200 | 71 | 75 | 1480 | DN125 | 776 | Details |
| NIS200-150-250(Q)/11 | 200-150-250(Q) | 300 | 9.5 | 11 | 1480 | DN150 | 273 | Details |
| NIS200-150-250(Q)/15 | 200-150-250(Q) | 300 | 12.5 | 15 | 1480 | DN150 | 299 | Details |
| NIS200-150-250(Q)/18.5 | 200-150-250(Q) | 300 | 16 | 18.5 | 1480 | DN150 | 337 | Details |
| NIS200-150-250(Q)/22 | 200-150-250(Q) | 300 | 20 | 22 | 1480 | DN150 | 360 | Details |
| NIS(F)200-150-250G/15 | 200-150-250G | 400 | 9 | 15 | 1480 | DN150 | 299 | Details |
| NIS(F)200-150-250G/18.5 | 200-150-250G | 400 | 12 | 18.5 | 1480 | DN150 | 337 | Details |
| NIS(F)200-150-250G/22 | 200-150-250G | 400 | 15.5 | 22 | 1480 | DN150 | 360 | Details |
| NIS(F)200-150-250G/30 | 200-150-250G | 400 | 20 | 30 | 1480 | DN150 | 426 | Details |
| NIS200-150-315G/37 | 200-150-315G | 400 | 24 | 37 | 1480 | DN150 | 541 | Details |
| NIS200-150-315G/45 | 200-150-315G | 400 | 29 | 45 | 1480 | DN150 | 579 | Details |
| NIS200-150-315G/55 | 200-150-315G | 400 | 36 | 55 | 1480 | DN150 | 650 | Details |
| NIS200-150-400G/75 | 200-150-400G | 400 | 47 | 75 | 1480 | DN150 | 859 | Details |
| NIS200-150-400G/90 | 200-150-400G | 400 | 56 | 90 | 1480 | DN150 | 956 | Details |
| NIS200-150-400G/110 | 200-150-400G | 400 | 63 | 110 | 1480 | DN150 | 1325 | Details |
Performance range
Every model of the NIS / NISF *G, *(Q) range on one chart: each dot is the rated duty point of one model. Click a line or dot to open that model with its full data.
Logarithmic scales. Published catalogue data for clean water; the correct model for your duty is confirmed by our engineers.
Dimensions & weight
Net weight and the main dimensions of each model, in millimetres, from the catalogue. Open a model for the labelled dimension drawing.
Showing 68 of 71 models; the others have no published dimensions.
Spare parts for NIS / NISF *G, *(Q)
Typical wear and service parts for this type of pump. The exact part, material and part number depend on the model, so send us the model code (or a nameplate photo) and we confirm and quote the right one.
| Part | What it does | |
|---|---|---|
| Mechanical seal | Seals the shaft; the most frequently replaced part | |
| Impeller | Transfers energy to the liquid | |
| Shaft sleeve | Protects the shaft in the seal area | |
| Bearings | Carry the shaft; replace on noise or heat | |
| Wear ring | Keeps the clearance between impeller and casing | |
| O-rings and gaskets | Seal the casing joints | |
| Coupling | Connects motor and pump |
Generic list for this pump type; it is not a part-number catalogue for the series. Our team confirms the correct part for your model before quoting.
Specification & options
Key parameters
- Max flow1200 m³/h
- Max head160 m
- Max working pressure16 bar (inlet up to 6 bar)
- Max power200 kW
- Liquid temperature-15 to +110 °C
- Inlet / outletDN50–DN300 / DN32–DN250 (as printed; tables go to DN350 inlet)
- MotorTEFC, 2-pole or 4-pole, 50 Hz three-phase (single-phase 220 V also available)
- FlangesPN16 (cast iron GB/T 17241.6 / ISO 7005-2; stainless GB/T 9113)
- CurvesISO 9906:2012 Grade 3B, measured on 3 × 380 V motors
Materials: NIS / NISF
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Pump body | QT500-7 / ZG07Cr19Ni9 | ASTM 80-55 / AISI 304 |
| 2 | Impeller | HT200 / ZG07Cr19Ni9 | ASTM 25B / AISI 304 |
| 3 | Pump cover | HT200 / ZG07Cr19Ni9 | ASTM 25B / AISI 304 |
| 4 | Mechanical seal | Carbon / silicon carbide | |
| 5 | O-ring | NBR | |
| 6 | Shaft | 20Cr13 / 06Cr19Ni10 | AISI 420 / AISI 304 |
| 7 | Pump head | HT200 | ASTM 25B |
| 8 | Base | Q235-A | |
| 9 | Motor |
First material is NIS (cast iron), second is NISF (stainless steel). Flow-passage parts of NIS*G and NIS*(Q) are cast iron as standard; stainless steel to special order.
Materials: NISO
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Pump body | QT500-7 / ZG07Cr19Ni9 | ASTM 80-55 / AISI 304 |
| 2 | Impeller | HT200 / ZG07Cr19Ni9 | ASTM 25B / AISI 304 |
| 3 | Pump cover | HT200 / ZG07Cr19Ni9 | ASTM 25B / AISI 304 |
| 4 | Mechanical seal | Carbon / silicon carbide | |
| 5 | O-ring | NBR | |
| 6 | Shaft | 20Cr13 / 06Cr19Ni10 | AISI 420 / AISI 304 |
| 7 | Bearing housing | HT200 | ASTM 25B |
| 8 | Bearing cover | HT200 | ASTM 25B |
| 9 | Oil seal | NBR |
Flange dimensions NIS*G, NIS*(Q) (mm)
| DN | D1 | D2 | D3 | n | d |
|---|---|---|---|---|---|
| 65 | 122 | 145 | 185 | 4 | 18 |
| 80 | 133 | 160 | 200 | 8 | 18 |
| 100 | 158 | 180 | 220 | 8 | 18 |
| 125 | 184 | 210 | 250 | 8 | 18 |
| 150 | 212 | 240 | 285 | 8 | 22 |
| 200 | 268 | 295 | 340 | 12 | 22 |
D3 outer diameter, D2 bolt circle, D1 raised face, n × bolt hole diameter d.
More features
- Wear-resistant mechanical seal as standard
Technical data
Liquid temperature
- -15 to +110 °C
Typical applications
- Clean, thin, non-corrosive, non-flammable and non-explosive liquids without grain or fibre: water supply, HVAC, boosting and constant-pressure supply, fire fighting, irrigation and farming, industrial cooling and heat circulation, industrial transfer and drainage
Data basis
- CNP NIS/NISO/NISF catalogue E210807, product range pp. 9–11, dimensions pp. 26–28
Performance values are taken from the published CNP catalogue data. Our engineers confirm the final selection for your liquid, temperature, supply and site before quoting.
