High-pressure pump

HP

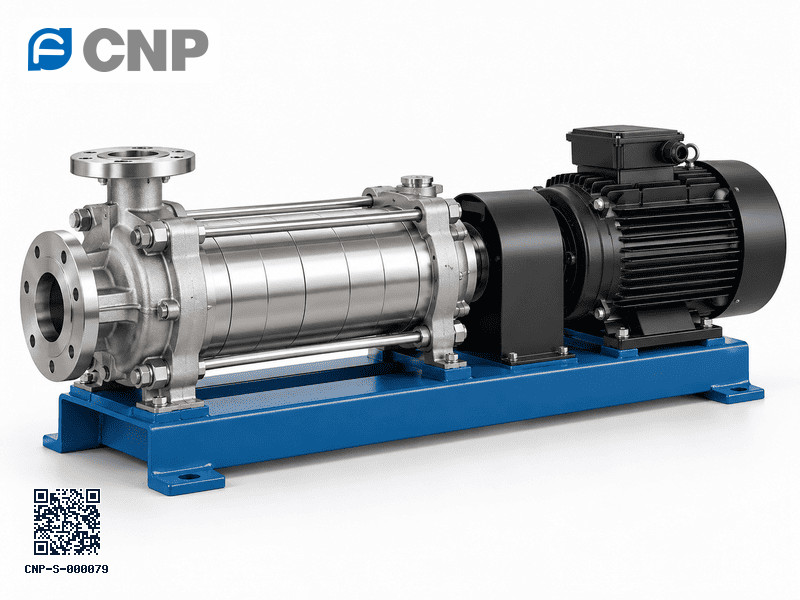

High-pressure horizontal multistage pumps, HP

Horizontal high-pressure pumps coupled to a standard motor by a rigid coupling, used singly or as two in series. Impellers are arranged back to back to balance the axial force. Used where very high head is needed at moderate flow.

  • One pump or two in series
  • Back-to-back impellers balance axial force
  • Highest heads in the catalogue
  • Water treatment, boosting and flushing duties
View 39 models Find a pump
HPCNP-S-000079
Flow
16–65 m³/h
Head
up to 718 m
Power
37–110 kW
Mains
50 Hz / 60 Hz
Models
39
Liquid temp.
-15 to +70 °C (normal type); hot-water type -15 to +120 °C

Sizes

SizeDescriptionRated flowFlow rangeMax pressureMotorConnectionModels
HP32 Horizontal high-pressure pump set (one pump, or two pumps in series) 32 m³/h 16–40 m³/h 70 bar 37–74 kW PJE coupling 22
HP42 Horizontal high-pressure pump set (one pump, or two pumps in series) 42 m³/h 25–55 m³/h 72 bar 55–110 kW PJE coupling 17

Models

Filter by duty point, mains frequency or size. Click a model for its performance curve and data.

Model table (PDF)
ModelSizeStagesHzMotor kWFlow m³/hHead mrpmkg
HP32-17 HP321750 37 16–40 175–310 2900485 CurvePDF
HP32-18 HP321850 37 16–40 186–328 2900490 CurvePDF
HP32-19 HP321950 37 16–40 197–346 2900500 CurvePDF
HP32-10×2 HP321050 37 16–40 202–364 2900620 CurvePDF
HP32-11×2 HP321150 44 16–40 220–401 2900695 CurvePDF
HP32-12×2 HP321250 44 16–40 242–437 2900705 CurvePDF
HP32-13×2 HP321350 60 16–40 264–473 2900850 CurvePDF
HP32-14×2 HP321450 60 16–40 287–510 2900860 CurvePDF
HP32-15×2 HP321550 60 16–40 310–546 2900870 CurvePDF
HP32-16×2 HP321650 60 16–40 331–583 2900880 CurvePDF
HP32-17×2 HP321750 74 16–40 352–619 2900945 CurvePDF
HP32-18×2 HP321850 74 16–40 374–656 2900955 CurvePDF
HP32-19×2 HP321950 74 16–40 395–692 2900965 CurvePDF
HP42-14 HP421450 55 25–55 222–336 2900660 CurvePDF
HP42-15 HP421550 55 25–55 241–360 2900665 CurvePDF
HP42-8×2 HP42850 60 25–55 252–380 2900815 CurvePDF
HP42-9×2 HP42950 74 25–55 282–428 2900895 CurvePDF
HP42-10×2 HP421050 74 25–55 317–476 2900905 CurvePDF
HP42-11×2 HP421150 90 25–55 348–526 29001040 CurvePDF
HP42-12×2 HP421250 90 25–55 380–576 29001055 CurvePDF
HP42-13×2 HP421350 110 25–55 412–624 29001270 CurvePDF
HP42-14×2 HP421450 110 25–55 443–672 29001285 CurvePDF
HP42-15×2 HP421550 110 25–55 475–718 29001295 CurvePDF
HP32-10 HP321060 37 20–48 146–258 3500440 CurvePDF
HP32-11 HP321160 37 20–48 161–284 3500445 CurvePDF
HP32-12 HP321260 37 20–48 176–310 3500450 CurvePDF
HP32-7×2 HP32760 44 20–48 205–362 3500650 CurvePDF
HP32-8×2 HP32860 60 20–48 234–413 3500790 CurvePDF
HP32-9×2 HP32960 60 20–48 263–465 3500800 CurvePDF
HP32-10×2 HP321060 74 20–48 293–517 3500845 CurvePDF
HP32-11×2 HP321160 74 20–48 322–568 3500855 CurvePDF
HP32-12×2 HP321260 74 20–48 351–620 3500865 CurvePDF
HP42-8 HP42860 55 30–65 184–274 3500615 CurvePDF
HP42-9 HP42960 55 30–65 207–308 3500620 CurvePDF
HP42-5×2 HP42560 60 30–65 230–342 3500765 CurvePDF
HP42-6×2 HP42660 74 30–65 275–411 3500845 CurvePDF
HP42-7×2 HP42760 90 30–65 321–479 3500970 CurvePDF
HP42-8×2 HP42860 110 30–65 367–548 35001180 CurvePDF
HP42-9×2 HP42960 110 30–65 413–616 35001190 CurvePDF

Performance range

Every model of the HP range on one chart: each line is the performance curve of one model. Click a line or dot to open that model with its full data.

  • HP32
  • HP42
2050200500Flow (m³/h)Head (m)HP32-17 · 50 HzHP32-18 · 50 HzHP32-19 · 50 HzHP32-10×2 · 50 HzHP32-11×2 · 50 HzHP32-12×2 · 50 HzHP32-13×2 · 50 HzHP32-14×2 · 50 HzHP32-15×2 · 50 HzHP32-16×2 · 50 HzHP32-17×2 · 50 HzHP32-18×2 · 50 HzHP32-19×2 · 50 HzHP42-14 · 50 HzHP42-15 · 50 HzHP42-8×2 · 50 HzHP42-9×2 · 50 HzHP42-10×2 · 50 HzHP42-11×2 · 50 HzHP42-12×2 · 50 HzHP42-13×2 · 50 HzHP42-14×2 · 50 HzHP42-15×2 · 50 HzHP32-10 · 60 HzHP32-11 · 60 HzHP32-12 · 60 HzHP32-7×2 · 60 HzHP32-8×2 · 60 HzHP32-9×2 · 60 HzHP32-10×2 · 60 HzHP32-11×2 · 60 HzHP32-12×2 · 60 HzHP42-8 · 60 HzHP42-9 · 60 HzHP42-5×2 · 60 HzHP42-6×2 · 60 HzHP42-7×2 · 60 HzHP42-8×2 · 60 HzHP42-9×2 · 60 Hz

Logarithmic scales. Published catalogue data for clean water; the correct model for your duty is confirmed by our engineers.

Dimensions & weight

Net weight and the main dimensions of each model, in millimetres, from the catalogue. Open a model for the labelled dimension drawing.

ModelHzWeight (kg)L1L2L3L4L5L6L8
HP32-17504852446734104010402260420330
HP32-18504902516734107510752330420330
HP32-19505002586734111011102400420330
HP32-10×25062018566537557551689816796
HP32-11×25069519566587927921764870821
HP32-12×25070520266588278271834870821
HP32-13×25085021667349009001980946860
HP32-14×25086022367349359352050946860
HP32-15×25087023067349709702120946860
HP32-16×2508802376734100510052190946860
HP32-17×2509452446734104010402260946860
HP32-18×2509552516734107510752330946860
HP32-19×2509652586734111011102400946860
HP42-14506602525868107810782333510350
HP42-15506652605868111811182413510350
HP42-8×25081519167447777771729946880
HP42-9×25089519967448178171809946880
HP42-10×25090520767448578571889946880
HP42-11×2501040219577191091019961020920
HP42-12×2501055227577195095020761020920
HP42-13×250127024458681038103822531130970
HP42-14×250128525258681078107823331130970
HP42-15×250129526058681118111824131130970
HP32-106044019567347957951770420330
HP32-116044520267348308301840420330
HP32-126045020967348658651910420340
HP32-7×26065016766586526521484870821
HP32-8×26079018167347257251630946860
HP32-9×26080018867347607601700946860
HP32-10×26084519567347957951770946860
HP32-11×26085520267348308301840946860
HP32-12×26086520967348658651910946860
HP42-86061520458688388381853510350
HP42-96062021258688788781933510350
HP42-5×26076516767446576571489946880
HP42-6×26084517567446976971569946880
HP42-7×260970187577175075016761020920
HP42-8×2601180204586883883818531130970
HP42-9×2601190212586887887819331130970

Spare parts for HP

Parts list of the series with the material of each part. To order, send the model code and the part you need.

Parts list (PDF) Request spare parts quote
No.PartMaterialStandardApplies to
1BaseStainless steelAISI304 All sizes
2Bottom bearing—— All sizes
3ChamberStainless steelAISI304 All sizes
4ImpellerStainless steelAISI304 All sizes
5Intermediate bearing—— All sizes
6Outer sleeveStainless steelAISI304 All sizes
7Exchange chamberStainless steelAISI304 All sizes
8Exchange chamber bearing—— All sizes
9Support reverse chamberStainless steelAISI304 All sizes
10Reverse chamberStainless steelAISI304 All sizes
11Reverse impellerStainless steelAISI304 All sizes
12InducerStainless steelAISI304 All sizes
13Inlet and outlet chamberStainless steelAISI304 All sizes
14Mechanical seal—— All sizes
15Pump shaftStainless steelAISI304 / AISI431 All sizes
16BracketCast ironASTM25B All sizes
17CouplingCarbon steel— All sizes
18Motor—— All sizes

Technical data

Liquid temperature

  • -15 to +70 °C (normal type); hot-water type -15 to +120 °C

Ambient conditions

  • Up to 40 °C and 1000 m altitude

Motor

  • TEFC motor, IP55, insulation class F; two-pole standard motors

Supply voltage

  • 3 x 380-415 V
  • 3 x 220-240 / 380-415 V
  • 3 x 200-220 / 346-380 V
  • 1 x 220-230 / 240 V
  • 3 x 200-230 / 346-400 V
  • 3 x 220-255 / 380-440 V
  • 3 x 220-277 / 380-480 V

Typical applications

  • Water treatment: ultra-filter system, R/O system
  • Booster system
  • High-pressure flushing system
  • Water supply

Pumped liquid

  • Thin, clean, non-flammable and non-explosive liquid without solid granules or fibres

Data basis

  • 50 Hz, 2900/2950 rpm, 20 °C air-free clean water, kinematic viscosity 1 mm²/s; curve tolerance ISO 9906:2012 Grade 3B
  • 60 Hz, 3500/3540 rpm, 20 °C air-free clean water, kinematic viscosity 1 mm²/s; curve tolerance ISO 9906:2012 Grade 3B

Performance values are taken from the published CNP catalogue data. Our engineers confirm the final selection for your liquid, temperature, supply and site before quoting.
