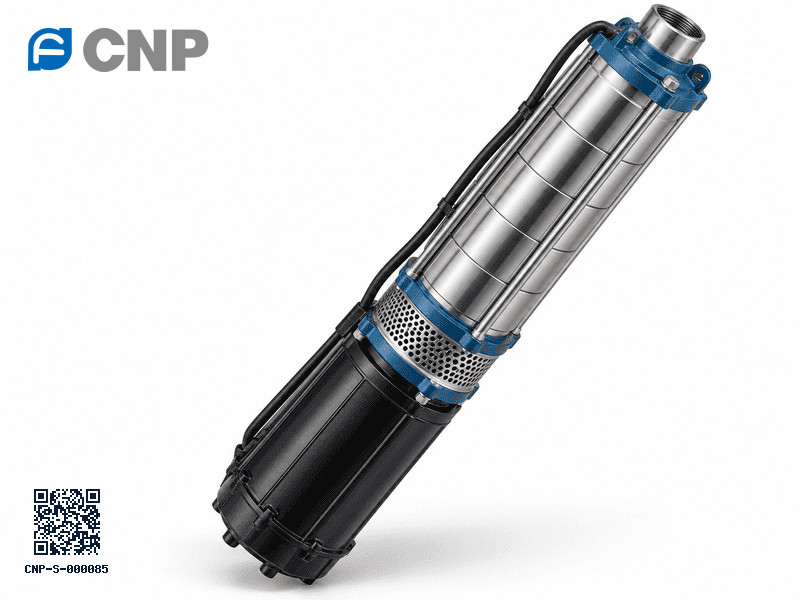

Submersible multistage stainless steel pump

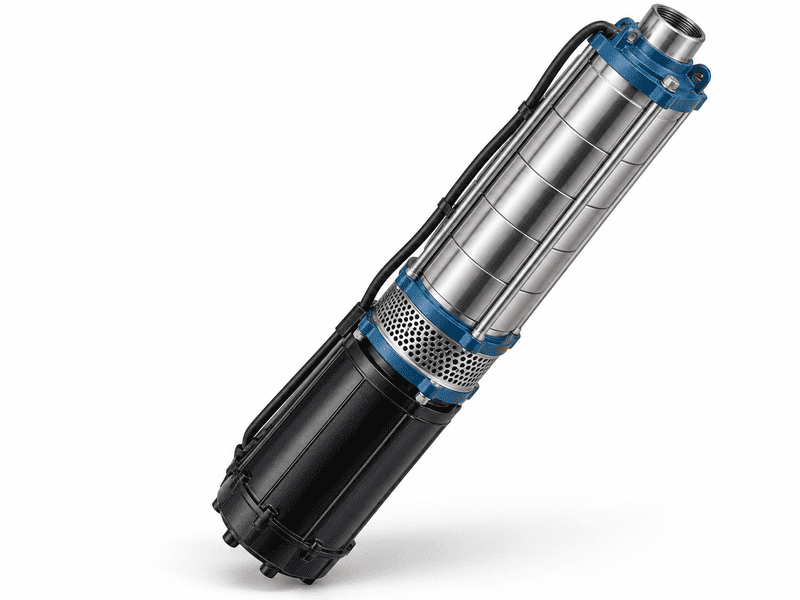

PQ (submersible multistage)

Stainless steel submersible multistage pumps, PQ

Stainless steel submersible multistage pumps for clean water, driven by a submersible motor on a NEMA interface. Used for fountains, water supply from wells and tanks, pressure boosting and irrigation. The number of stages sets the head; one size covers a wide pressure range.

  • Fourteen sizes from 1 to 200 m³/h rated flow
  • Flow 0.2 to 240 m³/h and heads up to about 380 m
  • AISI 304 stainless steel stamped and welded stages
  • 4", 6", 8" and 10" NEMA submersible motors up to 110 kW
  • Liquid up to 20 °C, maximum depth 70 m, maximum working pressure 38 bar
View 261 models Find a pump
PQ (submersible multistage)CNP-S-000085
Flow
0.2–240 m³/h
Head
up to 381 m
Power
0.37–110 kW
Mains
50 Hz
Models
261
Liquid temp.
Up to +20 °C liquid (≤20 °C); pH 6.5–8.5

Sizes

SizeDescriptionRated flowFlow rangeMax pressureMotorConnectionModels
PQ1 Stainless steel submersible multistage pump (fountain / deep-well type) 1 m³/h 0.2–2 m³/h 28 bar 0.37–2.2 kW Thread Rp1¼ 13
PQ3 Stainless steel submersible multistage pump (fountain / deep-well type) 3 m³/h 0.8–4 m³/h 25 bar 0.37–3 kW Thread Rp1¼ 10
PQ5 Stainless steel submersible multistage pump (fountain / deep-well type) 5 m³/h 1–6.5 m³/h 24 bar 0.37–4 kW Thread Rp1½ 11
PQ8 Stainless steel submersible multistage pump (fountain / deep-well type) 8 m³/h 2–11 m³/h 27 bar 0.75–7.5 kW Thread Rp2 12
PQ12 Stainless steel submersible multistage pump (fountain / deep-well type) 12 m³/h 3–18 m³/h 16 bar 1.5–7.5 kW Thread Rp2 8
PQ17 Stainless steel submersible multistage pump (fountain / deep-well type) 17 m³/h 4–22 m³/h 26 bar 0.55–15 kW Thread Rp2½ 26
PQ30 Stainless steel submersible multistage pump (fountain / deep-well type) 30 m³/h 5–38 m³/h 28 bar 1.1–22 kW Thread Rp3 25
PQ42 Stainless steel submersible multistage pump (fountain / deep-well type) 42 m³/h 5–60 m³/h 28 bar 1.1–37 kW Thread Rp3 22
PQ60 Stainless steel submersible multistage pump (fountain / deep-well type) 60 m³/h 10–75 m³/h 29 bar 2.2–37 kW Thread Rp4 24
PQ75 Stainless steel submersible multistage pump (fountain / deep-well type) 75 m³/h 30–100 m³/h 38 bar 7.5–75 kW Thread Rp5 20
PQ95 Stainless steel submersible multistage pump (fountain / deep-well type) 95 m³/h 40–120 m³/h 34 bar 9.2–75 kW Thread Rp5 18
PQ120 Stainless steel submersible multistage pump (fountain / deep-well type) 120 m³/h 60–150 m³/h 25 bar 11–110 kW Thread Rp6 31
PQ150 Stainless steel submersible multistage pump (fountain / deep-well type) 150 m³/h 80–180 m³/h 23 bar 9.2–110 kW Thread Rp6 26
PQ200 Stainless steel submersible multistage pump (fountain / deep-well type) 200 m³/h 100–240 m³/h 16 bar 30–110 kW Thread Rp6 15

Models

Filter by duty point, mains frequency or size. Click a model for its performance curve and data.

Model table (PDF)
ModelSizeStagesHzMotor kWFlow m³/hHead mrpmkg
PQ1-6 PQ1650 0.37 0.2–2 19–33.5 2850— CurvePDF
PQ1-9 PQ1950 0.37 0.2–2 29–51 2850— CurvePDF
PQ1-13 PQ11350 0.55 0.2–2 42–73 2850— CurvePDF
PQ1-17 PQ11750 0.75 0.2–2 55–96 2850— CurvePDF
PQ1-21 PQ12150 1.1 0.2–2 69–119 2850— CurvePDF
PQ1-25 PQ12550 1.1 0.2–2 82–141 2850— CurvePDF
PQ1-28 PQ12850 1.5 0.2–2 92–158 2850— CurvePDF
PQ1-32 PQ13250 1.5 0.2–2 105–180 2850— CurvePDF
PQ1-36 PQ13650 1.5 0.2–2 118–203 2850— CurvePDF
PQ1-39 PQ13950 2.2 0.2–2 128–221 2850— CurvePDF
PQ1-42 PQ14250 2.2 0.2–2 137–238 2850— CurvePDF
PQ1-46 PQ14650 2.2 0.2–2 151–260 2850— CurvePDF
PQ1-50 PQ15050 2.2 0.2–2 165–284 2850— CurvePDF
PQ3-6 PQ3650 0.37 0.8–4 13–36 2850— CurvePDF
PQ3-9 PQ3950 0.55 0.8–4 20–53 2850— CurvePDF
PQ3-12 PQ31250 0.75 0.8–4 27–70 2850— CurvePDF
PQ3-15 PQ31550 1.1 0.8–4 34–87 2850— CurvePDF
PQ3-18 PQ31850 1.1 0.8–4 42–105 2850— CurvePDF
PQ3-22 PQ32250 1.5 0.8–4 53–130 2850— CurvePDF
PQ3-27 PQ32750 2.2 0.8–4 66–159 2850— CurvePDF
PQ3-32 PQ33250 2.2 0.8–4 79–189 2850— CurvePDF
PQ3-38 PQ33850 3 0.8–4 94–224 2850— CurvePDF
PQ3-43 PQ34350 3 0.8–4 107–254 2850— CurvePDF
PQ5-4 PQ5450 0.37 1–6.5 8–21 2850— CurvePDF
PQ5-6 PQ5650 0.55 1–6.5 11–32 2850— CurvePDF
PQ5-8 PQ5850 0.75 1–6.5 15–43 2850— CurvePDF
PQ5-12 PQ51250 1.1 1–6.5 23–66 2850— CurvePDF
PQ5-17 PQ51750 1.5 1–6.5 32–95 2850— CurvePDF
PQ5-21 PQ52150 2.2 1–6.5 39–117 2850— CurvePDF
PQ5-25 PQ52550 2.2 1–6.5 47–139 2850— CurvePDF
PQ5-29 PQ52950 3 1–6.5 55–161 2850— CurvePDF
PQ5-33 PQ53350 3 1–6.5 62–183 2850— CurvePDF
PQ5-38 PQ53850 4 1–6.5 71–211 2850— CurvePDF
PQ5-43 PQ54350 4 1–6.5 81–239 2850— CurvePDF
PQ8-5 PQ8550 0.75 2–11 10–27 2850— CurvePDF
PQ8-7 PQ8750 1.1 2–11 14–38 2850— CurvePDF
PQ8-10 PQ81050 1.5 2–11 21–54 2850— CurvePDF
PQ8-12 PQ81250 2.2 2–11 26–65 2850— CurvePDF
PQ8-15 PQ81550 2.2 2–11 33–81 2850— CurvePDF
PQ8-18 PQ81850 3 2–11 40–95 2850— CurvePDF
PQ8-21 PQ82150 4 2–11 47–112 2850— CurvePDF
PQ8-25 PQ82550 4 2–11 56–135 2850— CurvePDF
PQ8-30 PQ83050 5.5 2–11 67–162 2850— CurvePDF
PQ8-37 PQ83750 5.5 2–11 82–201 2850— CurvePDF
PQ8-44 PQ84450 7.5 2–11 98–242 2850— CurvePDF
PQ8-50 PQ85050 7.5 2–11 111–272 2850— CurvePDF
PQ12-5 PQ12550 1.5 3–18 13–34 2850— CurvePDF
PQ12-7 PQ12750 2.2 3–18 19–48 2850— CurvePDF
PQ12-10 PQ121050 3 3–18 27–67 2850— CurvePDF
PQ12-13 PQ121350 4 3–18 36–88 2850— CurvePDF
PQ12-15 PQ121550 5.5 3–18 41–99 2850— CurvePDF
PQ12-18 PQ121850 5.5 3–18 50–120 2850— CurvePDF
PQ12-21 PQ122150 7.5 3–18 58–138 2850— CurvePDF
PQ12-25 PQ122550 7.5 3–18 69–166 2850— CurvePDF
PQ17-1 PQ17150 0.55 4–22 4–10.5 2850— CurvePDF
PQ17-2 PQ17250 1.1 4–22 8–20.5 2850— CurvePDF
PQ17-3 PQ17350 2.2 4–22 13–31 2850— CurvePDF
PQ17-4 PQ17450 2.2 4–22 18–41 2850— CurvePDF
PQ17-5 PQ17550 3 4–22 23–52 2850— CurvePDF
PQ17-6 PQ17650 4 4–22 27–62 2850— CurvePDF
PQ17-7 PQ17750 4 4–22 31–73 2850— CurvePDF
PQ17-8 PQ17850 5.5 4–22 36–83 2850— CurvePDF
PQ17-9 PQ17950 5.5 4–22 40–93 2850— CurvePDF
PQ17-10 PQ171050 5.5 4–22 45–103 2850— CurvePDF
PQ17-11 PQ171150 7.5 4–22 50–113 2850— CurvePDF
PQ17-12 PQ171250 7.5 4–22 55–123 2850— CurvePDF
PQ17-13 PQ171350 7.5 4–22 60–133 2850— CurvePDF
PQ17-14 PQ171450 9.2 4–22 65–143 2850— CurvePDF
PQ17-15 PQ171550 9.2 4–22 70–153 2850— CurvePDF
PQ17-16 PQ171650 9.2 4–22 75–163 2850— CurvePDF
PQ17-17 PQ171750 9.2 4–22 79–173 2850— CurvePDF
PQ17-18 PQ171850 11 4–22 84–184 2850— CurvePDF
PQ17-19 PQ171950 11 4–22 89–194 2850— CurvePDF
PQ17-20 PQ172050 11 4–22 94–204 2850— CurvePDF
PQ17-21 PQ172150 13 4–22 99–214 2850— CurvePDF
PQ17-22 PQ172250 13 4–22 104–224 2850— CurvePDF
PQ17-23 PQ172350 13 4–22 109–235 2850— CurvePDF
PQ17-24 PQ172450 13 4–22 113–245 2850— CurvePDF
PQ17-25 PQ172550 15 4–22 118–255 2850— CurvePDF
PQ17-26 PQ172650 15 4–22 122–265 2850— CurvePDF
PQ30-1 PQ30150 1.1 5–38 4.5–11.5 2850— CurvePDF
PQ30-2 PQ30250 2.2 5–38 9–22.5 2850— CurvePDF
PQ30-3 PQ30350 3 5–38 14–33.5 2850— CurvePDF
PQ30-4 PQ30450 4 5–38 18–44.5 2850— CurvePDF
PQ30-5 PQ30550 5.5 5–38 23–55.5 2850— CurvePDF
PQ30-6 PQ30650 5.5 5–38 27–67 2850— CurvePDF
PQ30-7 PQ30750 7.5 5–38 32–77 2850— CurvePDF
PQ30-8 PQ30850 7.5 5–38 36–89 2850— CurvePDF
PQ30-9 PQ30950 9.2 5–38 41–101 2850— CurvePDF
PQ30-10 PQ301050 9.2 5–38 45–112 2850— CurvePDF
PQ30-11 PQ301150 9.2 5–38 50–123 2850— CurvePDF
PQ30-12 PQ301250 11 5–38 54–134 2850— CurvePDF
PQ30-13 PQ301350 11 5–38 59–145 2850— CurvePDF
PQ30-14 PQ301450 13 5–38 63–157 2850— CurvePDF
PQ30-15 PQ301550 13 5–38 68–168 2850— CurvePDF
PQ30-16 PQ301650 15 5–38 72–180 2850— CurvePDF
PQ30-17 PQ301750 15 5–38 77–190 2850— CurvePDF
PQ30-18 PQ301850 18.5 5–38 81–201 2850— CurvePDF
PQ30-19 PQ301950 18.5 5–38 86–212 2850— CurvePDF
PQ30-20 PQ302050 18.5 5–38 90–223 2850— CurvePDF
PQ30-21 PQ302150 18.5 5–38 95–235 2850— CurvePDF
PQ30-22 PQ302250 22 5–38 99–246 2850— CurvePDF
PQ30-23 PQ302350 22 5–38 104–258 2850— CurvePDF
PQ30-24 PQ302450 22 5–38 108–269 2850— CurvePDF
PQ30-25 PQ302550 22 5–38 113–281 2850— CurvePDF
PQ42-1 PQ42150 2.2 5–60 4–13 2850— CurvePDF
PQ42-2 PQ42250 3 5–60 8.5–26 2850— CurvePDF
PQ42-3 PQ42350 5.5 5–60 13–40 2850— CurvePDF
PQ42-4 PQ42450 7.5 5–60 18–53 2850— CurvePDF
PQ42-5 PQ42550 7.5 5–60 23–66 2850— CurvePDF
PQ42-6 PQ42650 9.2 5–60 28–79 2850— CurvePDF
PQ42-7 PQ42750 11 5–60 32–92 2850— CurvePDF
PQ42-8 PQ42850 13 5–60 36–105 2850— CurvePDF
PQ42-9 PQ42950 15 5–60 40–118 2850— CurvePDF
PQ42-10 PQ421050 15 5–60 45–132 2850— CurvePDF
PQ42-11 PQ421150 18.5 5–60 49–144 2850— CurvePDF
PQ42-12 PQ421250 18.5 5–60 54–157 2850— CurvePDF
PQ42-13 PQ421350 22 5–60 58–170 2850— CurvePDF
PQ42-14 PQ421450 22 5–60 63–183 2850— CurvePDF
PQ42-15 PQ421550 22 5–60 67–196 2850— CurvePDF
PQ42-16 PQ421650 25 5–60 72–209 2850— CurvePDF
PQ42-17 PQ421750 25 5–60 77–222 2850— CurvePDF
PQ42-18 PQ421850 30 5–60 81–235 2850— CurvePDF
PQ42-19 PQ421950 30 5–60 86–248 2850— CurvePDF
PQ42-20 PQ422050 30 5–60 90–261 2850— CurvePDF
PQ42-21 PQ422150 37 5–60 95–274 2850— CurvePDF
PQ42-22 PQ422250 37 5–60 99–287 2850— CurvePDF
PQ60-1 PQ60150 2.2 20–70 4–12 2850— CurvePDF
PQ60-2-2 PQ60250 3 20–75 4–20 2850— CurvePDF
PQ60-2 PQ60250 4 20–75 6–24.5 2850— CurvePDF
PQ60-3 PQ60350 5.5 20–75 10–37 2850— CurvePDF
PQ60-4 PQ60450 7.5 20–75 17–51 2850— CurvePDF
PQ60-5 PQ60550 9.2 20–75 21–65 2850— CurvePDF
PQ60-6 PQ60650 11 20–75 26–79 2850— CurvePDF
PQ60-7 PQ60750 13 20–75 30–92 2850— CurvePDF
PQ60-8-2 PQ60850 13 20–75 31–99 2850— CurvePDF
PQ60-8 PQ60850 15 20–75 35–105 2850— CurvePDF
PQ60-9-2 PQ60950 15 20–75 36–112 2850— CurvePDF
PQ60-9 PQ60950 18.5 20–75 40–121 2850— CurvePDF
PQ60-10 PQ601050 18.5 20–75 45–132 2850— CurvePDF
PQ60-11 PQ601150 22 20–75 50–145 2850— CurvePDF
PQ60-12 PQ601250 22 20–75 54–158 2850— CurvePDF
PQ60-13 PQ601350 25 20–75 59–172 2850— CurvePDF
PQ60-14 PQ601450 25 20–75 63–185 2850— CurvePDF
PQ60-15 PQ601550 30 20–75 68–198 2850— CurvePDF
PQ60-16 PQ601650 30 20–75 72–212 2850— CurvePDF
PQ60-17 PQ601750 30 20–75 77–224 2850— CurvePDF
PQ60-18 PQ601850 37 20–75 84–240 2850— CurvePDF
PQ60-19 PQ601950 37 20–75 89–253 2850— CurvePDF
PQ60-20 PQ602050 37 20–75 94–265 2850— CurvePDF
PQ60-21 PQ602150 37 20–75 98–278 2850— CurvePDF
PQ75-1 PQ75150 4 30–100 5.5–18 2850— CurvePDF
PQ75-2 PQ75250 7.5 30–100 12.5–36.5 2850— CurvePDF
PQ75-3 PQ75350 11 30–100 21.5–54.5 2850— CurvePDF
PQ75-4 PQ75450 15 30–100 30–73.5 2850— CurvePDF
PQ75-5 PQ75550 18.5 30–100 38–92 2850— CurvePDF
PQ75-6 PQ75650 22 30–100 47–111 2850— CurvePDF
PQ75-7 PQ75750 30 30–100 56–130 2850— CurvePDF
PQ75-8 PQ75850 30 30–100 65–148 2850— CurvePDF
PQ75-9 PQ75950 37 30–100 74–167 2850— CurvePDF
PQ75-10 PQ751050 37 30–100 83–185 2850— CurvePDF
PQ75-11 PQ751150 45 30–100 92–203 2850— CurvePDF
PQ75-12 PQ751250 45 30–100 100–222 2850— CurvePDF
PQ75-13 PQ751350 55 30–100 108–241 2850— CurvePDF
PQ75-14 PQ751450 55 30–100 116–262 2850— CurvePDF
PQ75-15 PQ751550 55 30–100 124–283 2850— CurvePDF
PQ75-16 PQ751650 63 30–100 133–303 2850— CurvePDF
PQ75-17 PQ751750 63 30–100 142–323 2850— CurvePDF
PQ75-18 PQ751850 75 30–100 150–342 2850— CurvePDF
PQ75-19 PQ751950 75 30–100 158–361 2850— CurvePDF
PQ75-20 PQ752050 75 30–100 167–381 2850— CurvePDF
PQ95-1 PQ95150 4 40–110 5–17.5 2850— CurvePDF
PQ95-2 PQ95250 9.2 40–120 3.5–36 2850— CurvePDF
PQ95-3 PQ95350 13 40–120 6–54 2850— CurvePDF
PQ95-4 PQ95450 18.5 40–120 10.5–72 2850— CurvePDF
PQ95-5 PQ95550 22 40–120 14.5–91 2850— CurvePDF
PQ95-6 PQ95650 25 40–120 18–110 2850— CurvePDF
PQ95-7 PQ95750 30 40–120 22–129 2850— CurvePDF
PQ95-8 PQ95850 37 40–120 26–148 2850— CurvePDF
PQ95-9 PQ95950 37 40–120 31–167 2850— CurvePDF
PQ95-10 PQ951050 45 40–120 36–186 2850— CurvePDF
PQ95-11 PQ951150 45 40–120 42–205 2850— CurvePDF
PQ95-12 PQ951250 55 40–120 48–224 2850— CurvePDF
PQ95-13 PQ951350 55 40–120 53–243 2850— CurvePDF
PQ95-14 PQ951450 55 40–120 59–262 2850— CurvePDF
PQ95-15 PQ951550 63 40–120 64–281 2850— CurvePDF
PQ95-16 PQ951650 63 40–120 70–301 2850— CurvePDF
PQ95-17 PQ951750 75 40–120 75–321 2850— CurvePDF
PQ95-18 PQ951850 75 40–120 81–342 2850— CurvePDF
PQ120-1 PQ120150 11 60–150 16.5–22.5 2850— CurvePDF
PQ120-2-2 PQ120250 15 60–150 24–33.5 2850— CurvePDF
PQ120-2-1 PQ120250 18.5 60–150 28–40.5 2850— CurvePDF
PQ120-2 PQ120250 22 60–150 34–45.5 2850— CurvePDF
PQ120-3-2 PQ120350 25 60–150 40.5–55 2850— CurvePDF
PQ120-3-1 PQ120350 30 60–150 46–62.5 2850— CurvePDF
PQ120-3 PQ120350 30 60–150 51–68 2850— CurvePDF
PQ120-4-2 PQ120450 37 60–150 57.5–78.5 2850— CurvePDF
PQ120-4-1 PQ120450 37 60–150 64–85 2850— CurvePDF
PQ120-4 PQ120450 37 60–150 68–90.5 2850— CurvePDF
PQ120-5-2 PQ120550 45 60–150 74.5–102 2850— CurvePDF
PQ120-5-1 PQ120550 45 60–150 82–108.5 2850— CurvePDF
PQ120-5 PQ120550 55 60–150 85–113.5 2850— CurvePDF
PQ120-6-2 PQ120650 55 60–150 90.5–125 2850— CurvePDF
PQ120-6-1 PQ120650 55 60–150 98–131 2850— CurvePDF
PQ120-6 PQ120650 63 60–150 102–136 2850— CurvePDF
PQ120-7-2 PQ120750 63 60–150 106–147 2850— CurvePDF
PQ120-7-1 PQ120750 63 60–150 112.5–153 2850— CurvePDF
PQ120-7 PQ120750 75 60–150 119.5–159 2850— CurvePDF
PQ120-8-2 PQ120850 75 60–150 123–170 2850— CurvePDF
PQ120-8-1 PQ120850 75 60–150 129.5–175.5 2850— CurvePDF
PQ120-8 PQ120850 75 60–150 136.5–181.5 2850— CurvePDF
PQ120-9-2 PQ120950 90 60–150 140–192.5 2850— CurvePDF
PQ120-9-1 PQ120950 90 60–150 147–198 2850— CurvePDF
PQ120-9 PQ120950 90 60–150 153.5–204 2850— CurvePDF
PQ120-10-2 PQ1201050 90 60–150 157.5–215.5 2850— CurvePDF
PQ120-10-1 PQ1201050 90 60–150 164–221 2850— CurvePDF
PQ120-10 PQ1201050 110 60–150 170.5–227 2850— CurvePDF
PQ120-11-2 PQ1201150 110 60–150 174.5–238 2850— CurvePDF
PQ120-11-1 PQ1201150 110 60–150 181–243.5 2850— CurvePDF
PQ120-11 PQ1201150 110 60–150 187.5–250 2850— CurvePDF
PQ150-1-1 PQ150150 9.2 80–180 11.5–18.5 2850— CurvePDF
PQ150-1 PQ150150 13 80–180 18–24 2850— CurvePDF
PQ150-2-2 PQ150250 18.5 80–180 25–35.5 2850— CurvePDF
PQ150-2-1 PQ150250 22 80–180 31–43 2850— CurvePDF
PQ150-2 PQ150250 25 80–180 36–48.5 2850— CurvePDF
PQ150-3-2 PQ150350 30 80–180 43–60 2850— CurvePDF
PQ150-3-1 PQ150350 37 80–180 49–66.5 2850— CurvePDF
PQ150-3 PQ150350 37 80–180 54.5–74.5 2850— CurvePDF
PQ150-4-2 PQ150450 45 80–180 61–85.5 2850— CurvePDF
PQ150-4-1 PQ150450 45 80–180 67–93 2850— CurvePDF
PQ150-4 PQ150450 55 80–180 73–100.5 2850— CurvePDF
PQ150-5-2 PQ150550 55 80–180 78.5–111.5 2850— CurvePDF
PQ150-5-1 PQ150550 55 80–180 85–118.5 2850— CurvePDF
PQ150-5 PQ150550 63 80–180 91.5–126 2850— CurvePDF
PQ150-6-2 PQ150650 63 80–180 97–137 2850— CurvePDF
PQ150-6-1 PQ150650 75 80–180 103.5–144 2850— CurvePDF
PQ150-6 PQ150650 75 80–180 110–151.5 2850— CurvePDF
PQ150-7-2 PQ150750 75 80–180 115–162.5 2850— CurvePDF
PQ150-7-1 PQ150750 90 80–180 121.5–169.5 2850— CurvePDF
PQ150-7 PQ150750 90 80–180 128–177 2850— CurvePDF
PQ150-8-2 PQ150850 90 80–180 133.5–188 2850— CurvePDF
PQ150-8-1 PQ150850 110 80–180 140–195 2850— CurvePDF
PQ150-8 PQ150850 110 80–180 146.5–202.5 2850— CurvePDF
PQ150-9-2 PQ150950 110 80–180 152–213.5 2850— CurvePDF
PQ150-9-1 PQ150950 110 80–180 158.5–220.5 2850— CurvePDF
PQ150-9 PQ150950 110 80–180 165–228 2850— CurvePDF
PQ200-1 PQ200150 30 100–240 29–37 2850— CurvePDF
PQ200-2-2B PQ200250 37 100–240 31–51 2850— CurvePDF
PQ200-2-2A PQ200250 45 100–240 39–57.5 2850— CurvePDF
PQ200-2-A PQ200250 55 100–240 49.5–66.5 2850— CurvePDF
PQ200-2 PQ200250 55 100–240 59.5–76 2850— CurvePDF
PQ200-3-2B PQ200350 75 100–240 63–88.5 2850— CurvePDF
PQ200-3-A-B PQ200350 75 100–240 65–92 2850— CurvePDF
PQ200-3-2A PQ200350 75 100–240 69.5–96 2850— CurvePDF
PQ200-3-B PQ200350 75 100–240 75–101 2850— CurvePDF
PQ200-3-A PQ200350 75 100–240 79–104.5 2850— CurvePDF
PQ200-3 PQ200350 90 100–240 89–113.5 2850— CurvePDF
PQ200-4-2B PQ200450 90 100–240 91–127 2850— CurvePDF
PQ200-4-2A PQ200450 110 100–240 99–134 2850— CurvePDF
PQ200-4-A PQ200450 110 100–240 109.5–143 2850— CurvePDF
PQ200-4 PQ200450 110 100–240 117–152 2850— CurvePDF

Performance range

Every model of the PQ (submersible multistage) range on one chart: each line is the performance curve of one model. Click a line or dot to open that model with its full data.

0.20.51251020501002005102050100200Flow (m³/h)Head (m)PQ1-6 · 50 HzPQ1-9 · 50 HzPQ1-13 · 50 HzPQ1-17 · 50 HzPQ1-21 · 50 HzPQ1-25 · 50 HzPQ1-28 · 50 HzPQ1-32 · 50 HzPQ1-36 · 50 HzPQ1-39 · 50 HzPQ1-42 · 50 HzPQ1-46 · 50 HzPQ1-50 · 50 HzPQ3-6 · 50 HzPQ3-9 · 50 HzPQ3-12 · 50 HzPQ3-15 · 50 HzPQ3-18 · 50 HzPQ3-22 · 50 HzPQ3-27 · 50 HzPQ3-32 · 50 HzPQ3-38 · 50 HzPQ3-43 · 50 HzPQ5-4 · 50 HzPQ5-6 · 50 HzPQ5-8 · 50 HzPQ5-12 · 50 HzPQ5-17 · 50 HzPQ5-21 · 50 HzPQ5-25 · 50 HzPQ5-29 · 50 HzPQ5-33 · 50 HzPQ5-38 · 50 HzPQ5-43 · 50 HzPQ8-5 · 50 HzPQ8-7 · 50 HzPQ8-10 · 50 HzPQ8-12 · 50 HzPQ8-15 · 50 HzPQ8-18 · 50 HzPQ8-21 · 50 HzPQ8-25 · 50 HzPQ8-30 · 50 HzPQ8-37 · 50 HzPQ8-44 · 50 HzPQ8-50 · 50 HzPQ12-5 · 50 HzPQ12-7 · 50 HzPQ12-10 · 50 HzPQ12-13 · 50 HzPQ12-15 · 50 HzPQ12-18 · 50 HzPQ12-21 · 50 HzPQ12-25 · 50 HzPQ17-1 · 50 HzPQ17-2 · 50 HzPQ17-3 · 50 HzPQ17-4 · 50 HzPQ17-5 · 50 HzPQ17-6 · 50 HzPQ17-7 · 50 HzPQ17-8 · 50 HzPQ17-9 · 50 HzPQ17-10 · 50 HzPQ17-11 · 50 HzPQ17-12 · 50 HzPQ17-13 · 50 HzPQ17-14 · 50 HzPQ17-15 · 50 HzPQ17-16 · 50 HzPQ17-17 · 50 HzPQ17-18 · 50 HzPQ17-19 · 50 HzPQ17-20 · 50 HzPQ17-21 · 50 HzPQ17-22 · 50 HzPQ17-23 · 50 HzPQ17-24 · 50 HzPQ17-25 · 50 HzPQ17-26 · 50 HzPQ30-1 · 50 HzPQ30-2 · 50 HzPQ30-3 · 50 HzPQ30-4 · 50 HzPQ30-5 · 50 HzPQ30-6 · 50 HzPQ30-7 · 50 HzPQ30-8 · 50 HzPQ30-9 · 50 HzPQ30-10 · 50 HzPQ30-11 · 50 HzPQ30-12 · 50 HzPQ30-13 · 50 HzPQ30-14 · 50 HzPQ30-15 · 50 HzPQ30-16 · 50 HzPQ30-17 · 50 HzPQ30-18 · 50 HzPQ30-19 · 50 HzPQ30-20 · 50 HzPQ30-21 · 50 HzPQ30-22 · 50 HzPQ30-23 · 50 HzPQ30-24 · 50 HzPQ30-25 · 50 HzPQ42-1 · 50 HzPQ42-2 · 50 HzPQ42-3 · 50 HzPQ42-4 · 50 HzPQ42-5 · 50 HzPQ42-6 · 50 HzPQ42-7 · 50 HzPQ42-8 · 50 HzPQ42-9 · 50 HzPQ42-10 · 50 HzPQ42-11 · 50 HzPQ42-12 · 50 HzPQ42-13 · 50 HzPQ42-14 · 50 HzPQ42-15 · 50 HzPQ42-16 · 50 HzPQ42-17 · 50 HzPQ42-18 · 50 HzPQ42-19 · 50 HzPQ42-20 · 50 HzPQ42-21 · 50 HzPQ42-22 · 50 HzPQ60-1 · 50 HzPQ60-2-2 · 50 HzPQ60-2 · 50 HzPQ60-3 · 50 HzPQ60-4 · 50 HzPQ60-5 · 50 HzPQ60-6 · 50 HzPQ60-7 · 50 HzPQ60-8-2 · 50 HzPQ60-8 · 50 HzPQ60-9-2 · 50 HzPQ60-9 · 50 HzPQ60-10 · 50 HzPQ60-11 · 50 HzPQ60-12 · 50 HzPQ60-13 · 50 HzPQ60-14 · 50 HzPQ60-15 · 50 HzPQ60-16 · 50 HzPQ60-17 · 50 HzPQ60-18 · 50 HzPQ60-19 · 50 HzPQ60-20 · 50 HzPQ60-21 · 50 HzPQ75-1 · 50 HzPQ75-2 · 50 HzPQ75-3 · 50 HzPQ75-4 · 50 HzPQ75-5 · 50 HzPQ75-6 · 50 HzPQ75-7 · 50 HzPQ75-8 · 50 HzPQ75-9 · 50 HzPQ75-10 · 50 HzPQ75-11 · 50 HzPQ75-12 · 50 HzPQ75-13 · 50 HzPQ75-14 · 50 HzPQ75-15 · 50 HzPQ75-16 · 50 HzPQ75-17 · 50 HzPQ75-18 · 50 HzPQ75-19 · 50 HzPQ75-20 · 50 HzPQ95-1 · 50 HzPQ95-2 · 50 HzPQ95-3 · 50 HzPQ95-4 · 50 HzPQ95-5 · 50 HzPQ95-6 · 50 HzPQ95-7 · 50 HzPQ95-8 · 50 HzPQ95-9 · 50 HzPQ95-10 · 50 HzPQ95-11 · 50 HzPQ95-12 · 50 HzPQ95-13 · 50 HzPQ95-14 · 50 HzPQ95-15 · 50 HzPQ95-16 · 50 HzPQ95-17 · 50 HzPQ95-18 · 50 HzPQ120-1 · 50 HzPQ120-2-2 · 50 HzPQ120-2-1 · 50 HzPQ120-2 · 50 HzPQ120-3-2 · 50 HzPQ120-3-1 · 50 HzPQ120-3 · 50 HzPQ120-4-2 · 50 HzPQ120-4-1 · 50 HzPQ120-4 · 50 HzPQ120-5-2 · 50 HzPQ120-5-1 · 50 HzPQ120-5 · 50 HzPQ120-6-2 · 50 HzPQ120-6-1 · 50 HzPQ120-6 · 50 HzPQ120-7-2 · 50 HzPQ120-7-1 · 50 HzPQ120-7 · 50 HzPQ120-8-2 · 50 HzPQ120-8-1 · 50 HzPQ120-8 · 50 HzPQ120-9-2 · 50 HzPQ120-9-1 · 50 HzPQ120-9 · 50 HzPQ120-10-2 · 50 HzPQ120-10-1 · 50 HzPQ120-10 · 50 HzPQ120-11-2 · 50 HzPQ120-11-1 · 50 HzPQ120-11 · 50 HzPQ150-1-1 · 50 HzPQ150-1 · 50 HzPQ150-2-2 · 50 HzPQ150-2-1 · 50 HzPQ150-2 · 50 HzPQ150-3-2 · 50 HzPQ150-3-1 · 50 HzPQ150-3 · 50 HzPQ150-4-2 · 50 HzPQ150-4-1 · 50 HzPQ150-4 · 50 HzPQ150-5-2 · 50 HzPQ150-5-1 · 50 HzPQ150-5 · 50 HzPQ150-6-2 · 50 HzPQ150-6-1 · 50 HzPQ150-6 · 50 HzPQ150-7-2 · 50 HzPQ150-7-1 · 50 HzPQ150-7 · 50 HzPQ150-8-2 · 50 HzPQ150-8-1 · 50 HzPQ150-8 · 50 HzPQ150-9-2 · 50 HzPQ150-9-1 · 50 HzPQ150-9 · 50 HzPQ200-1 · 50 HzPQ200-2-2B · 50 HzPQ200-2-2A · 50 HzPQ200-2-A · 50 HzPQ200-2 · 50 HzPQ200-3-2B · 50 HzPQ200-3-A-B · 50 HzPQ200-3-2A · 50 HzPQ200-3-B · 50 HzPQ200-3-A · 50 HzPQ200-3 · 50 HzPQ200-4-2B · 50 HzPQ200-4-2A · 50 HzPQ200-4-A · 50 HzPQ200-4 · 50 Hz

Logarithmic scales. Published catalogue data for clean water; the correct model for your duty is confirmed by our engineers.

Spare parts for PQ (submersible multistage)

Parts list of the series with the material of each part. To order, send the model code and the part you need.

Parts list (PDF) Request spare parts quote
No.PartMaterialStandardApplies to
1DischargeStainless steelAISI304 All sizes
5Discharge diffuserStainless steelAISI304 All sizes
6Impeller nutStainless steel— All sizes
7ImpellerStainless steelAISI304 All sizes
8Impeller sleeveStainless steelAISI304 All sizes
9DiffuserStainless steelAISI304 All sizes
10StrapStainless steelAISI304 All sizes
11InducerStainless steelAISI304 All sizes
12ShaftStainless steel— All sizes
13Suction interconnectorStainless steelAISI304 All sizes
15Neck ringPBT/NBR— All sizes
16Cable guardStainless steelAISI304 All sizes
18Motor—— All sizes
21Inlet spacerGraphite— All sizes
31Connection sleeveStainless steelAISI304 All sizes

Technical data

Liquid temperature

  • Up to +20 °C liquid (≤20 °C); pH 6.5–8.5

Ambient conditions

  • Maximum submersion depth 70 m; working frequency 5–50 Hz

Motor

  • NEMA-interface submersible motors: 4" (0.37–7.5 kW, single or three phase), 6" (4–45 kW), 8" (22–110 kW), 10" (30–110 kW)

Supply voltage

  • Single phase (4" motor up to 2.2 kW)
  • Three phase

Typical applications

  • Fountains and water features
  • Water supply from wells and tanks
  • Pressure boosting
  • Irrigation

Pumped liquid

  • Clean, thin, non-flammable water without solid particles or fibres; pH 6.5–8.5; maximum working pressure 38 bar.

Data basis

  • 50 Hz, 2850 rpm (curves measured at 2850 or 2900 rpm), 20 °C air-free clean water, kinematic viscosity 1 mm²/s; curve tolerance ISO 9906:2012 Grade 3B

Performance values are taken from the published CNP catalogue data. Our engineers confirm the final selection for your liquid, temperature, supply and site before quoting.

Other submersible & deep-well pumps

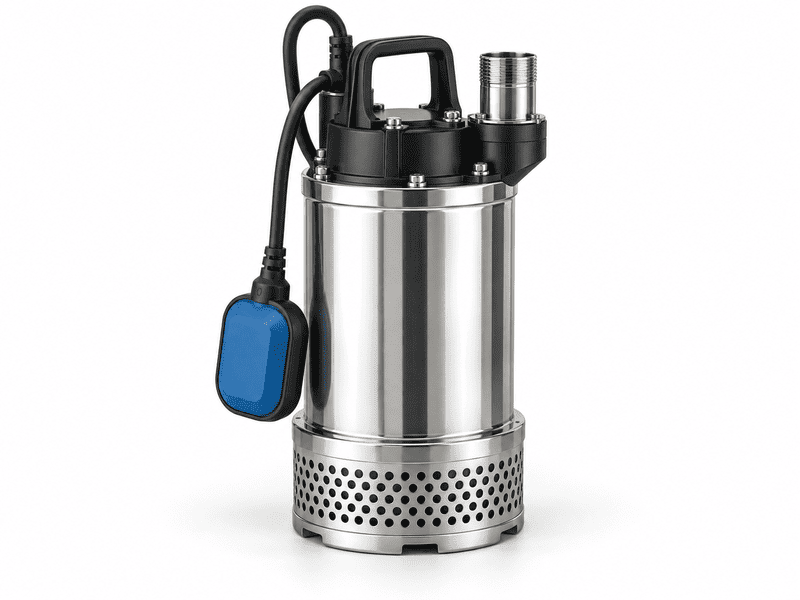

QF

Submersible drainage / utility

  • Flow 3–22 m³/h
  • Head up to 10 m
  • 0.12–1.5 kW
View series

Need a pump or a spare part?

Send us the flow and head you need, or the model code and nameplate details of the pump you are repairing. Our team replies with a quotation.

Request a Quotation +92 345 9547419
