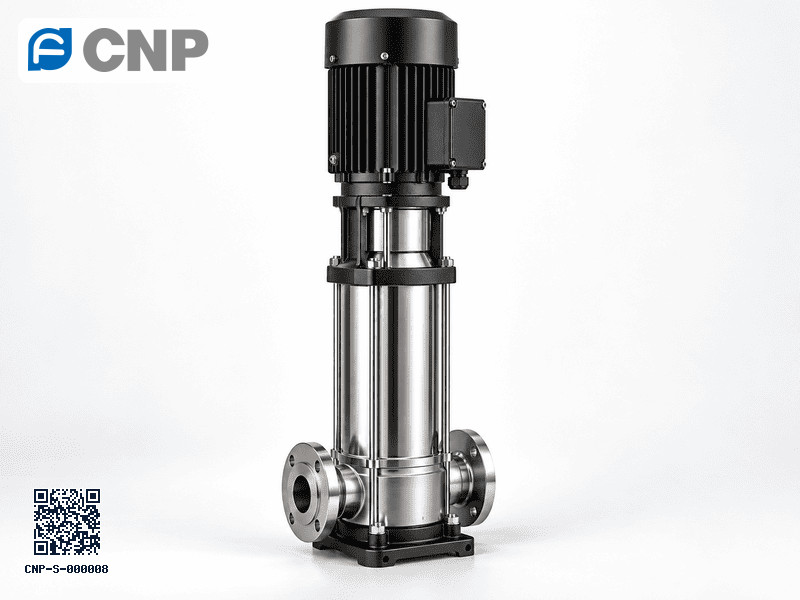

Vertical multistage centrifugal pump

CDM / CDMF

New-generation energy-saving vertical multistage pumps, CDM / CDMF

Low-noise, energy-saving, non-self-priming vertical multistage pumps designed to European standards. CDM suits non-corrosive liquids and CDMF suits lightly corrosive liquids. A good general choice for boosting, pressurising, HVAC and water-treatment duties.

  • CDM for non-corrosive, CDMF for lightly corrosive liquids
  • Boosting, pressurising, HVAC and water treatment
  • Hot-water type available (up to +120 °C)
  • DIN flange on every size
View 461 models Find a pump
CDM / CDMFCNP-S-000008
Flow
0.5–240 m³/h
Head
up to 312 m
Power
0.37–110 kW
Mains
50 Hz / 60 Hz
Models
461
Liquid temp.
-15 to +70 °C (normal type); hot-water type -15 to +120 °C

Sizes

SizeDescriptionRated flowFlow rangeMax pressureMotorConnectionModels
CDM1 / CDMF1 Light vertical multistage centrifugal pump 1 m³/h 0.5–2.4 m³/h 22 bar 0.37–2.2 kW DIN flange DN25 48
CDM3 / CDMF3 Light vertical multistage centrifugal pump 3 m³/h 1.2–4.4 m³/h 23 bar 0.37–3 kW DIN flange DN25 48
CDM5 / CDMF5 Light vertical multistage centrifugal pump 5 m³/h 2.5–8.5 m³/h 24 bar 0.37–5.5 kW DIN flange DN32 49
CDM10 / CDMF10 Light vertical multistage centrifugal pump 10 m³/h 5–14 m³/h 24 bar 0.75–11 kW DIN flange DN40 37
CDM15 / CDMF15 Light vertical multistage centrifugal pump 15 m³/h 8–24 m³/h 22 bar 1.1–15 kW DIN flange DN50 30
CDM20 / CDMF20 Light vertical multistage centrifugal pump 20 m³/h 10–29 m³/h 25 bar 1.1–18.5 kW DIN flange DN50 22
CDM32 / CDMF32 Light vertical multistage centrifugal pump 32 m³/h 16–40 m³/h 29 bar 1.5–30 kW DIN flange DN65 51
CDM42 / CDMF42 Light vertical multistage centrifugal pump 42 m³/h 25–55 m³/h 30 bar 3–45 kW DIN flange DN80 39
CDM65 / CDMF65 Light vertical multistage centrifugal pump 65 m³/h 30–80 m³/h 22 bar 4–45 kW DIN flange DN100 31
CDM85 / CDMF85 Light vertical multistage centrifugal pump 85 m³/h 50–110 m³/h 17 bar 5.5–45 kW DIN flange DN100 21
CDM120 / CDMF120 Light vertical multistage centrifugal pump 120 m³/h 60–150 m³/h 16 bar 11–75 kW DIN flange DN125 31
CDM150 / CDMF150 Light vertical multistage centrifugal pump 150 m³/h 80–180 m³/h 16 bar 11–75 kW DIN flange DN125 26
CDM200 / CDMF200 Light vertical multistage centrifugal pump 200 m³/h 100–240 m³/h 16 bar 18.5–110 kW DIN flange DN150 28

Models

Filter by duty point, mains frequency or size. Click a model for its performance curve and data.

Model table (PDF)
ModelSizeStagesHzMotor kWFlow m³/hHead mrpmkg
CDM1-2CDMF1-2 CDM1250 0.37 0.5–2.4 4–11.8 290023 CurvePDF
CDM1-3CDMF1-3 CDM1350 0.37 0.5–2.4 6–17.5 290023 CurvePDF
CDM1-4CDMF1-4 CDM1450 0.37 0.5–2.4 8–23.5 290024 CurvePDF
CDM1-5CDMF1-5 CDM1550 0.37 0.5–2.4 10–29 290024 CurvePDF
CDM1-6CDMF1-6 CDM1650 0.37 0.5–2.4 12.5–35 290025 CurvePDF
CDM1-7CDMF1-7 CDM1750 0.37 0.5–2.4 15–41 290025 CurvePDF
CDM1-8CDMF1-8 CDM1850 0.55 0.5–2.4 18–47 290027 CurvePDF
CDM1-9CDMF1-9 CDM1950 0.55 0.5–2.4 20.5–52.5 290027 CurvePDF
CDM1-10CDMF1-10 CDM11050 0.55 0.5–2.4 23–58.5 290028 CurvePDF
CDM1-11CDMF1-11 CDM11150 0.55 0.5–2.4 25.5–64 290028 CurvePDF
CDM1-12CDMF1-12 CDM11250 0.75 0.5–2.4 28–70 290031 CurvePDF
CDM1-13CDMF1-13 CDM11350 0.75 0.5–2.4 31–75.5 290031 CurvePDF
CDM1-15CDMF1-15 CDM11550 0.75 0.5–2.4 36–87.5 290032 CurvePDF
CDM1-17CDMF1-17 CDM11750 1.1 0.5–2.4 41–99 290035 CurvePDF
CDM1-19CDMF1-19 CDM11950 1.1 0.5–2.4 46–110 290036 CurvePDF
CDM1-21CDMF1-21 CDM12150 1.1 0.5–2.4 50–122 290036 CurvePDF
CDM1-22CDMF1-22 CDM12250 1.1 0.5–2.4 54–128 290037 CurvePDF
CDM1-23CDMF1-23 CDM12350 1.5 0.5–2.4 58–134 290043 CurvePDF
CDM1-25CDMF1-25 CDM12550 1.5 0.5–2.4 63–146 290044 CurvePDF
CDM1-27CDMF1-27 CDM12750 1.5 0.5–2.4 69–158 290045 CurvePDF
CDM1-30CDMF1-30 CDM13050 1.5 0.5–2.4 77–175 290046 CurvePDF
CDM1-32CDMF1-32 CDM13250 2.2 0.5–2.4 85–189 290049 CurvePDF
CDM1-33CDMF1-33 CDM13350 2.2 0.5–2.4 87–195 290049 CurvePDF
CDM1-34CDMF1-34 CDM13450 2.2 0.5–2.4 90–200 290050 CurvePDF
CDM1-36CDMF1-36 CDM13650 2.2 0.5–2.4 95–212 290051 CurvePDF
CDM1-38CDMF1-38 CDM13850 2.2 0.5–2.4 101–225 290051 CurvePDF
CDM1-40CDMF1-40 CDM14050 2.2 0.5–2.4 106–237 290052 CurvePDF
CDM3-2CDMF3-2 CDM3250 0.37 1.2–4.4 6–14.7 290024 CurvePDF
CDM3-3CDMF3-3 CDM3350 0.37 1.2–4.4 9.5–22.2 290024 CurvePDF
CDM3-4CDMF3-4 CDM3450 0.37 1.2–4.4 13–29.7 290025 CurvePDF
CDM3-5CDMF3-5 CDM3550 0.55 1.2–4.4 16–37.2 290026 CurvePDF
CDM3-6CDMF3-6 CDM3650 0.55 1.2–4.4 19.5–45 290027 CurvePDF
CDM3-7CDMF3-7 CDM3750 0.75 1.2–4.4 23–52.5 290030 CurvePDF
CDM3-8CDMF3-8 CDM3850 0.75 1.2–4.4 26.5–60 290030 CurvePDF
CDM3-9CDMF3-9 CDM3950 1.1 1.2–4.4 30–67.5 290032 CurvePDF
CDM3-10CDMF3-10 CDM31050 1.1 1.2–4.4 33.5–75 290033 CurvePDF
CDM3-11CDMF3-11 CDM31150 1.1 1.2–4.4 37–82.5 290033 CurvePDF
CDM3-12CDMF3-12 CDM31250 1.1 1.2–4.4 40.5–90 290034 CurvePDF
CDM3-13CDMF3-13 CDM31350 1.5 1.2–4.4 44–98 290039 CurvePDF
CDM3-14CDMF3-14 CDM31450 1.5 1.2–4.4 47–105 290040 CurvePDF
CDM3-15CDMF3-15 CDM31550 1.5 1.2–4.4 51–113 290040 CurvePDF
CDM3-16CDMF3-16 CDM31650 1.5 1.2–4.4 54–120 290041 CurvePDF
CDM3-18CDMF3-18 CDM31850 2.2 1.2–4.4 61–136 290043 CurvePDF
CDM3-19CDMF3-19 CDM31950 2.2 1.2–4.4 64–143 290044 CurvePDF
CDM3-20CDMF3-20 CDM32050 2.2 1.2–4.4 67–151 290044 CurvePDF
CDM3-21CDMF3-21 CDM32150 2.2 1.2–4.4 71–158 290045 CurvePDF
CDM3-22CDMF3-22 CDM32250 2.2 1.2–4.4 74–166 290045 CurvePDF
CDM3-23CDMF3-23 CDM32350 2.2 1.2–4.4 78–173 290046 CurvePDF
CDM3-24CDMF3-24 CDM32450 2.2 1.2–4.4 81–181 290046 CurvePDF
CDM3-25CDMF3-25 CDM32550 3 1.2–4.4 85–188 290057 CurvePDF
CDM3-27CDMF3-27 CDM32750 3 1.2–4.4 92–204 290058 CurvePDF
CDM3-28CDMF3-28 CDM32850 3 1.2–4.4 95–212 290058 CurvePDF
CDM3-29CDMF3-29 CDM32950 3 1.2–4.4 99–220 290058 CurvePDF
CDM3-31CDMF3-31 CDM33150 3 1.2–4.4 106–235 290059 CurvePDF
CDM5-2CDMF5-2 CDM5250 0.37 2.5–8.5 4–14.7 290024 CurvePDF
CDM5-3CDMF5-3 CDM5350 0.55 2.5–8.5 7.5–22.1 290026 CurvePDF
CDM5-4CDMF5-4 CDM5450 0.55 2.5–8.5 11–29.5 290027 CurvePDF
CDM5-5CDMF5-5 CDM5550 0.75 2.5–8.5 15–37 290030 CurvePDF
CDM5-6CDMF5-6 CDM5650 1.1 2.5–8.5 18–44.5 290032 CurvePDF
CDM5-7CDMF5-7 CDM5750 1.1 2.5–8.5 21–52 290032 CurvePDF
CDM5-8CDMF5-8 CDM5850 1.1 2.5–8.5 24–59 290033 CurvePDF
CDM5-9CDMF5-9 CDM5950 1.5 2.5–8.5 27–67 290038 CurvePDF
CDM5-10CDMF5-10 CDM51050 1.5 2.5–8.5 30–74.5 290039 CurvePDF
CDM5-11CDMF5-11 CDM51150 1.5 2.5–8.5 33–82 290039 CurvePDF
CDM5-12CDMF5-12 CDM51250 2.2 2.5–8.5 37–89.5 290042 CurvePDF
CDM5-13CDMF5-13 CDM51350 2.2 2.5–8.5 40–97 290042 CurvePDF
CDM5-14CDMF5-14 CDM51450 2.2 2.5–8.5 43.5–104 290043 CurvePDF
CDM5-15CDMF5-15 CDM51550 2.2 2.5–8.5 46.5–112 290043 CurvePDF
CDM5-16CDMF5-16 CDM51650 2.2 2.5–8.5 50–119 290044 CurvePDF
CDM5-17CDMF5-17 CDM51750 3 2.5–8.5 53–127 290055 CurvePDF
CDM5-18CDMF5-18 CDM51850 3 2.5–8.5 56–134 290055 CurvePDF
CDM5-20CDMF5-20 CDM52050 3 2.5–8.5 63–149 290056 CurvePDF
CDM5-21CDMF5-21 CDM52150 3 2.5–8.5 66–157 290057 CurvePDF
CDM5-22CDMF5-22 CDM52250 4 2.5–8.5 70–164 290064 CurvePDF
CDM5-23CDMF5-23 CDM52350 4 2.5–8.5 74–172 290065 CurvePDF
CDM5-24CDMF5-24 CDM52450 4 2.5–8.5 77–179 290065 CurvePDF
CDM5-25CDMF5-25 CDM52550 4 2.5–8.5 80–187 290066 CurvePDF
CDM5-27CDMF5-27 CDM52750 4 2.5–8.5 86–202 290067 CurvePDF
CDM5-28CDMF5-28 CDM52850 4 2.5–8.5 90–210 290067 CurvePDF
CDM5-29CDMF5-29 CDM52950 5.5 2.5–8.5 95–217 290087 CurvePDF
CDM5-30CDMF5-30 CDM53050 5.5 2.5–8.5 98–225 290088 CurvePDF
CDM5-33CDMF5-33 CDM53350 5.5 2.5–8.5 109–249 290089 CurvePDF
CDM10-1CDMF10-1 CDM10150 0.75 5–14 4.5–11 290031 CurvePDF
CDM10-2CDMF10-2 CDM10250 0.75 5–14 9.5–22.2 290032 CurvePDF
CDM10-3CDMF10-3 CDM10350 1.1 5–14 16.5–33.3 290035 CurvePDF
CDM10-4CDMF10-4 CDM10450 1.5 5–14 22–44.5 290041 CurvePDF
CDM10-5CDMF10-5 CDM10550 2.2 5–14 28–56 290045 CurvePDF
CDM10-6CDMF10-6 CDM10650 2.2 5–14 34–67 290046 CurvePDF
CDM10-7CDMF10-7 CDM10750 3 5–14 40–78.5 290057 CurvePDF
CDM10-8CDMF10-8 CDM10850 3 5–14 46–90 290058 CurvePDF
CDM10-9CDMF10-9 CDM10950 4 5–14 52–101.5 290065 CurvePDF
CDM10-10CDMF10-10 CDM101050 4 5–14 58–113 290066 CurvePDF
CDM10-11CDMF10-11 CDM101150 4 5–14 64–124 290067 CurvePDF
CDM10-12CDMF10-12 CDM101250 4.5 5–14 70–137 290068 CurvePDF
CDM10-13CDMF10-13 CDM101350 5.5 5–14 76–147 290088 CurvePDF
CDM10-14CDMF10-14 CDM101450 5.5 5–14 82–160 290089 CurvePDF
CDM10-15CDMF10-15 CDM101550 5.5 5–14 88–171 290090 CurvePDF
CDM10-16CDMF10-16 CDM101650 7.5 5–14 94–183 290099 CurvePDF
CDM10-17CDMF10-17 CDM101750 7.5 5–14 100–194 2900100 CurvePDF
CDM10-18CDMF10-18 CDM101850 7.5 5–14 108–205 2900101 CurvePDF
CDM10-19CDMF10-19 CDM101950 7.5 5–14 113–217 2900102 CurvePDF
CDM10-20CDMF10-20 CDM102050 7.5 5–14 120–228 2900103 CurvePDF
CDM10-21CDMF10-21 CDM102150 7.5 5–14 126–240 2900104 CurvePDF
CDM10-22CDMF10-22 CDM102250 11 5–14 132–250 2900170 CurvePDF
CDM15-1CDMF15-1 CDM15150 1.1 8–24 6.5–12.6 290040 CurvePDF
CDM15-2CDMF15-2 CDM15250 2.2 8–24 13.5–26 290048 CurvePDF
CDM15-3CDMF15-3 CDM15350 3 8–24 21–40 290059 CurvePDF
CDM15-4CDMF15-4 CDM15450 4 8–24 28.5–54 290066 CurvePDF
CDM15-5CDMF15-5 CDM15550 4 8–24 36–68 290068 CurvePDF
CDM15-6CDMF15-6 CDM15650 5.5 8–24 43–82 290090 CurvePDF
CDM15-7CDMF15-7 CDM15750 5.5 8–24 51–96 290091 CurvePDF
CDM15-8CDMF15-8 CDM15850 7.5 8–24 59–110 290098 CurvePDF
CDM15-9CDMF15-9 CDM15950 7.5 8–24 67–124 290099 CurvePDF
CDM15-10CDMF15-10 CDM151050 11 8–24 75–138 2900157 CurvePDF
CDM15-11CDMF15-11 CDM151150 11 8–24 83–151 2900159 CurvePDF
CDM15-12CDMF15-12 CDM151250 11 8–24 90–166 2900160 CurvePDF
CDM15-13CDMF15-13 CDM151350 11 8–24 99–180 2900162 CurvePDF
CDM15-14CDMF15-14 CDM151450 11 8–24 106–194 2900163 CurvePDF
CDM15-15CDMF15-15 CDM151550 15 8–24 116–208 2900179 CurvePDF
CDM15-16CDMF15-16 CDM151650 15 8–24 125–222 2900181 CurvePDF
CDM15-17CDMF15-17 CDM151750 15 8–24 132–236 2900182 CurvePDF
CDM15-18CDMF15-18 CDM151850 15 8–24 141–250 2900184 CurvePDF
CDM20-1CDMF20-1 CDM20150 1.1 10–29 7–13.3 290040 CurvePDF
CDM20-2CDMF20-2 CDM20250 2.2 10–29 14.5–27.2 290048 CurvePDF
CDM20-3CDMF20-3 CDM20350 4 10–29 23.5–41.5 290066 CurvePDF
CDM20-4CDMF20-4 CDM20450 5.5 10–29 31.5–55.5 290088 CurvePDF
CDM20-5CDMF20-5 CDM20550 5.5 10–29 40–69.5 290090 CurvePDF
CDM20-6CDMF20-6 CDM20650 7.5 10–29 48–83.8 290099 CurvePDF
CDM20-7CDMF20-7 CDM20750 7.5 10–29 57.5–98 2900100 CurvePDF
CDM20-8CDMF20-8 CDM20850 11 10–29 66–113 2900167 CurvePDF
CDM20-10CDMF20-10 CDM201050 11 10–29 83–141 2900170 CurvePDF
CDM20-12CDMF20-12 CDM201250 15 10–29 100–171 2900188 CurvePDF
CDM20-14CDMF20-14 CDM201450 15 10–29 117–201 2900191 CurvePDF
CDM20-17CDMF20-17 CDM201750 18.5 10–29 147–244 2900212 CurvePDF
CDM32-1-1CDMF32-1-1 CDM32150 1.5 16–40 4–15 290066 CurvePDF
CDM32-1CDMF32-1 CDM32150 2.2 16–40 8–20 290068 CurvePDF
CDM32-2-2CDMF32-2-2 CDM32250 3 16–40 11–33 290073 CurvePDF
CDM32-2CDMF32-2 CDM32250 4 16–40 18–40 290079 CurvePDF
CDM32-3-2CDMF32-3-2 CDM32350 5.5 16–40 21–50 2900102 CurvePDF
CDM32-3CDMF32-3 CDM32350 5.5 16–40 27–57 2900102 CurvePDF
CDM32-4-2CDMF32-4-2 CDM32450 7.5 16–40 30–72 2900113 CurvePDF
CDM32-4CDMF32-4 CDM32450 7.5 16–40 37–78 2900113 CurvePDF
CDM32-5-2CDMF32-5-2 CDM32550 11 16–40 41–92 2900184 CurvePDF
CDM32-5CDMF32-5 CDM32550 11 16–40 47–99 2900184 CurvePDF
CDM32-6-2CDMF32-6-2 CDM32650 11 16–40 51–108 2900186 CurvePDF
CDM32-6CDMF32-6 CDM32650 11 16–40 57–118 2900186 CurvePDF
CDM32-7-2CDMF32-7-2 CDM32750 15 16–40 60–129 2900204 CurvePDF
CDM32-7CDMF32-7 CDM32750 15 16–40 67–138 2900204 CurvePDF
CDM32-8-2CDMF32-8-2 CDM32850 15 16–40 71–145 2900207 CurvePDF
CDM32-8CDMF32-8 CDM32850 15 16–40 77–154 2900207 CurvePDF
CDM32-9-2CDMF32-9-2 CDM32950 18.5 16–40 80–163 2900218 CurvePDF
CDM32-9CDMF32-9 CDM32950 18.5 16–40 88–172 2900218 CurvePDF
CDM32-10-2CDMF32-10-2 CDM321050 18.5 16–40 91–182 2900221 CurvePDF
CDM32-10CDMF32-10 CDM321050 18.5 16–40 98–193 2900221 CurvePDF
CDM32-11-2CDMF32-11-2 CDM321150 22 16–40 102–204 2900277 CurvePDF
CDM32-11CDMF32-11 CDM321150 22 16–40 109–210 2900277 CurvePDF
CDM32-12-2CDMF32-12-2 CDM321250 22 16–40 113–222 2900280 CurvePDF
CDM32-12CDMF32-12 CDM321250 22 16–40 120–231 2900280 CurvePDF
CDM32-13-2CDMF32-13-2 CDM321350 30 16–40 124–246 2900343 CurvePDF
CDM32-13CDMF32-13 CDM321350 30 16–40 131–253 2900343 CurvePDF
CDM32-14-2CDMF32-14-2 CDM321450 30 16–40 135–265 2900346 CurvePDF
CDM32-14CDMF32-14 CDM321450 30 16–40 142–273 2900346 CurvePDF
CDM32-15-2CDMF32-15-2 CDM321550 30 16–40 145–284 2900349 CurvePDF
CDM32-15CDMF32-15 CDM321550 30 16–40 152–292 2900349 CurvePDF
CDM32-16-2CDMF32-16-2 CDM321650 30 16–40 156–304 2900352 CurvePDF
CDM32-16CDMF32-16 CDM321650 30 16–40 163–312 2900352 CurvePDF
CDM42-1-1CDMF42-1-1 CDM42150 3 25–55 11–20 290083 CurvePDF
CDM42-1CDMF42-1 CDM42150 4 25–55 16–27 290090 CurvePDF
CDM42-2-2CDMF42-2-2 CDM42250 5.5 25–55 23–42 2900113 CurvePDF
CDM42-2CDMF42-2 CDM42250 7.5 25–55 31–50 2900121 CurvePDF
CDM42-3-2CDMF42-3-2 CDM42350 11 25–55 38–66 2900192 CurvePDF
CDM42-3CDMF42-3 CDM42350 11 25–55 47–75 2900192 CurvePDF
CDM42-4-2CDMF42-4-2 CDM42450 15 25–55 54–92 2900211 CurvePDF
CDM42-4CDMF42-4 CDM42450 15 25–55 62–100 2900211 CurvePDF
CDM42-5-2CDMF42-5-2 CDM42550 18.5 25–55 69–118 2900223 CurvePDF
CDM42-5CDMF42-5 CDM42550 18.5 25–55 78–125 2900223 CurvePDF
CDM42-6-2CDMF42-6-2 CDM42650 22 25–55 85–142 2900279 CurvePDF
CDM42-6CDMF42-6 CDM42650 22 25–55 93–150 2900279 CurvePDF
CDM42-7-2CDMF42-7-2 CDM42750 30 25–55 100–166 2900343 CurvePDF
CDM42-7CDMF42-7 CDM42750 30 25–55 109–175 2900343 CurvePDF
CDM42-8-2CDMF42-8-2 CDM42850 30 25–55 116–192 2900347 CurvePDF
CDM42-8CDMF42-8 CDM42850 30 25–55 124–202 2900347 CurvePDF
CDM42-9-2CDMF42-9-2 CDM42950 30 25–55 132–212 2900350 CurvePDF
CDM42-9CDMF42-9 CDM42950 37 25–55 140–220 2900370 CurvePDF
CDM42-10-2CDMF42-10-2 CDM421050 37 25–55 147–237 2900374 CurvePDF
CDM42-10CDMF42-10 CDM421050 37 25–55 155–245 2900374 CurvePDF
CDM42-11-2CDMF42-11-2 CDM421150 45 25–55 165–262 2900477 CurvePDF
CDM42-11CDMF42-11 CDM421150 45 25–55 173–269 2900477 CurvePDF
CDM42-12-2CDMF42-12-2 CDM421250 45 25–55 181–284 2900481 CurvePDF
CDM42-12CDMF42-12 CDM421250 45 25–55 190–290 2900481 CurvePDF
CDM42-13-2CDMF42-13-2 CDM421350 45 25–55 198–312 2900484 CurvePDF
CDM65-1-1CDMF65-1-1 CDM65150 4 30–80 8–20 2900101 CurvePDF
CDM65-1CDMF65-1 CDM65150 5.5 30–80 15–30 2900121 CurvePDF
CDM65-2-2CDMF65-2-2 CDM65250 7.5 30–80 17–42 2900133 CurvePDF
CDM65-2-1CDMF65-2-1 CDM65250 11 30–80 24–50 2900201 CurvePDF
CDM65-2CDMF65-2 CDM65250 11 30–80 30–60 2900201 CurvePDF
CDM65-3-2CDMF65-3-2 CDM65350 15 30–80 32–73 2900219 CurvePDF
CDM65-3-1CDMF65-3-1 CDM65350 15 30–80 39–80 2900219 CurvePDF
CDM65-3CDMF65-3 CDM65350 18.5 30–80 46–87 2900227 CurvePDF
CDM65-4-2CDMF65-4-2 CDM65450 18.5 30–80 47–98 2900231 CurvePDF
CDM65-4-1CDMF65-4-1 CDM65450 22 30–80 54–107 2900284 CurvePDF
CDM65-4CDMF65-4 CDM65450 22 30–80 61–116 2900284 CurvePDF
CDM65-5-2CDMF65-5-2 CDM65550 30 30–80 64–130 2900349 CurvePDF
CDM65-5-1CDMF65-5-1 CDM65550 30 30–80 71–138 2900349 CurvePDF
CDM65-5CDMF65-5 CDM65550 30 30–80 78–146 2900349 CurvePDF
CDM65-6-2CDMF65-6-2 CDM65650 30 30–80 81–158 2900353 CurvePDF
CDM65-6-1CDMF65-6-1 CDM65650 37 30–80 88–166 2900373 CurvePDF
CDM65-6CDMF65-6 CDM65650 37 30–80 95–175 2900373 CurvePDF
CDM65-7-2CDMF65-7-2 CDM65750 37 30–80 99–186 2900377 CurvePDF
CDM65-7-1CDMF65-7-1 CDM65750 37 30–80 106–196 2900377 CurvePDF
CDM65-7CDMF65-7 CDM65750 45 30–80 112–205 2900477 CurvePDF
CDM65-8-2CDMF65-8-2 CDM65850 45 30–80 116–216 2900481 CurvePDF
CDM65-8-1CDMF65-8-1 CDM65850 45 30–80 123–225 2900481 CurvePDF
CDM85-1-1CDMF85-1-1 CDM85150 5.5 50–110 6–26 2900110 CurvePDF
CDM85-1CDMF85-1 CDM85150 7.5 50–110 12–33 2900118 CurvePDF
CDM85-2-2CDMF85-2-2 CDM85250 11 50–110 15–47 2900190 CurvePDF
CDM85-2CDMF85-2 CDM85250 15 50–110 30–67 2900205 CurvePDF
CDM85-3-2CDMF85-3-2 CDM85350 18.5 50–110 32–75 2900217 CurvePDF
CDM85-3CDMF85-3 CDM85350 22 50–110 48–98 2900270 CurvePDF
CDM85-4-2CDMF85-4-2 CDM85450 30 50–110 50–115 2900335 CurvePDF
CDM85-4CDMF85-4 CDM85450 30 50–110 66–134 2900335 CurvePDF
CDM85-5-2CDMF85-5-2 CDM85550 37 50–110 68–150 2900359 CurvePDF
CDM85-5CDMF85-5 CDM85550 37 50–110 83–164 2900359 CurvePDF
CDM85-6-2CDMF85-6-2 CDM85650 45 50–110 86–177 2900463 CurvePDF
CDM85-6CDMF85-6 CDM85650 45 50–110 103–197 2900463 CurvePDF
CDM120-1CDMF120-1 CDM120150 11 60–150 15–23 2950226 CurvePDF
CDM120-2-2CDMF120-2-2 CDM120250 15 60–150 24–37 2950250 CurvePDF
CDM120-2-1CDMF120-2-1 CDM120250 18.5 60–150 27.5–43 2950263 CurvePDF
CDM120-2CDMF120-2 CDM120250 22 60–150 33.5–48 2950310 CurvePDF
CDM120-3-2CDMF120-3-2 CDM120350 30 60–150 41–59.5 2950375 CurvePDF
CDM120-3-1CDMF120-3-1 CDM120350 30 60–150 46–65.5 2950375 CurvePDF
CDM120-3CDMF120-3 CDM120350 30 60–150 51–71 2950375 CurvePDF
CDM120-4-2CDMF120-4-2 CDM120450 37 60–150 58–82 2950405 CurvePDF
CDM120-4-1CDMF120-4-1 CDM120450 37 60–150 64.5–91 2950405 CurvePDF
CDM120-4CDMF120-4 CDM120450 45 60–150 68.5–96 2950501 CurvePDF
CDM120-5-2CDMF120-5-2 CDM120550 45 60–150 75.5–108 2950509 CurvePDF
CDM120-5-1CDMF120-5-1 CDM120550 45 60–150 83–115 2950509 CurvePDF
CDM120-5CDMF120-5 CDM120550 55 60–150 86–121 2950632 CurvePDF
CDM120-6-2CDMF120-6-2 CDM120650 55 60–150 92.5–131 2950641 CurvePDF
CDM120-6-1CDMF120-6-1 CDM120650 55 60–150 100–139 2950641 CurvePDF
CDM120-6CDMF120-6 CDM120650 75 60–150 104–144 2950757 CurvePDF
CDM120-7-2CDMF120-7-2 CDM120750 75 60–150 109–154 2950766 CurvePDF
CDM120-7-1CDMF120-7-1 CDM120750 75 60–150 116.5–161 2950766 CurvePDF
CDM120-7CDMF120-7 CDM120750 75 60–150 123–166 2950766 CurvePDF
CDM150-1-1CDMF150-1-1 CDM150150 11 80–180 8.5–19.5 2950227 CurvePDF
CDM150-1CDMF150-1 CDM150150 15 80–180 15–25 2950240 CurvePDF
CDM150-2-2CDMF150-2-2 CDM150250 18.5 80–180 21–40 2950263 CurvePDF
CDM150-2-1CDMF150-2-1 CDM150250 22 80–180 27–47.5 2950311 CurvePDF
CDM150-2CDMF150-2 CDM150250 30 80–180 32–55 2950364 CurvePDF
CDM150-3-2CDMF150-3-2 CDM150350 30 80–180 39–69 2950374 CurvePDF
CDM150-3-1CDMF150-3-1 CDM150350 37 80–180 45–75 2950395 CurvePDF
CDM150-3CDMF150-3 CDM150350 37 80–180 50.5–83 2950395 CurvePDF
CDM150-4-2CDMF150-4-2 CDM150450 45 80–180 56–95 2950502 CurvePDF
CDM150-4-1CDMF150-4-1 CDM150450 45 80–180 62–104 2950502 CurvePDF
CDM150-4CDMF150-4 CDM150450 55 80–180 68–112 2950625 CurvePDF
CDM150-5-2CDMF150-5-2 CDM150550 55 80–180 73.5–125.5 2950636 CurvePDF
CDM150-5-1CDMF150-5-1 CDM150550 75 80–180 80–132 2950752 CurvePDF
CDM150-5CDMF150-5 CDM150550 75 80–180 86.5–140 2950752 CurvePDF
CDM150-6-2CDMF150-6-2 CDM150650 75 80–180 91–149 2950762 CurvePDF
CDM150-6-1CDMF150-6-1 CDM150650 75 80–180 97.5–158 2950762 CurvePDF
CDM150-6CDMF150-6 CDM150650 75 80–180 109–168 2950762 CurvePDF
CDM200-1-BCDMF200-1-B CDM200150 18.5 100–240 15.5–28 2950344 CurvePDF
CDM200-1-ACDMF200-1-A CDM200150 22 100–240 20–31 2950380 CurvePDF
CDM200-1CDMF200-1 CDM200150 30 100–240 30–40.5 2950437 CurvePDF
CDM200-2-2BCDMF200-2-2B CDM200250 37 100–240 32–57 2950481 CurvePDF
CDM200-2-2ACDMF200-2-2A CDM200250 45 100–240 40.5–63 2950536 CurvePDF
CDM200-2-ACDMF200-2-A CDM200250 55 100–240 51–73 2950631 CurvePDF
CDM200-2CDMF200-2 CDM200250 55 100–240 61.5–82.5 2950631 CurvePDF
CDM200-3-2BCDMF200-3-2B CDM200350 75 100–240 63–98 2950784 CurvePDF
CDM200-3-A-BCDMF200-3-A-B CDM200350 75 100–240 67–100.5 2950784 CurvePDF
CDM200-3-2ACDMF200-3-2A CDM200350 75 100–240 72–106 2950784 CurvePDF
CDM200-3-BCDMF200-3-B CDM200350 75 100–240 77.5–111 2950784 CurvePDF
CDM200-3-ACDMF200-3-A CDM200350 75 100–240 81.5–114 2950784 CurvePDF
CDM200-3CDMF200-3 CDM200350 90 100–240 92–123 2950853 CurvePDF
CDM200-4-2BCDMF200-4-2B CDM200450 90 100–240 94–139.5 2950866 CurvePDF
CDM200-4-2ACDMF200-4-2A CDM200450 110 100–240 102.5–147 29501205 CurvePDF
CDM200-4-ACDMF200-4-A CDM200450 110 100–240 113–157 29501205 CurvePDF
CDM200-4CDMF200-4 CDM200450 110 100–240 123.5–166 29501205 CurvePDF
CDM1-2CDMF1-2 CDM1260 0.37 0.6–2.8 8.4–17.5 350023 CurvePDF
CDM1-3CDMF1-3 CDM1360 0.37 0.6–2.8 12.5–26 350023 CurvePDF
CDM1-4CDMF1-4 CDM1460 0.37 0.6–2.8 16.8–34 350024 CurvePDF
CDM1-5CDMF1-5 CDM1560 0.55 0.6–2.8 21–43 350025 CurvePDF
CDM1-6CDMF1-6 CDM1660 0.55 0.6–2.8 25–51.5 350025 CurvePDF
CDM1-7CDMF1-7 CDM1760 0.75 0.6–2.8 29–60 350029 CurvePDF
CDM1-8CDMF1-8 CDM1860 0.75 0.6–2.8 33–68 350029 CurvePDF
CDM1-9CDMF1-9 CDM1960 0.75 0.6–2.8 38–77 350030 CurvePDF
CDM1-10CDMF1-10 CDM11060 1.1 0.6–2.8 42–85.5 350032 CurvePDF
CDM1-11CDMF1-11 CDM11160 1.1 0.6–2.8 46–94 350033 CurvePDF
CDM1-12CDMF1-12 CDM11260 1.1 0.6–2.8 50–103 350033 CurvePDF
CDM1-13CDMF1-13 CDM11360 1.1 0.6–2.8 55–112 350033 CurvePDF
CDM1-15CDMF1-15 CDM11560 1.5 0.6–2.8 64–129 350039 CurvePDF
CDM1-17CDMF1-17 CDM11760 1.5 0.6–2.8 72–146 350040 CurvePDF
CDM1-19CDMF1-19 CDM11960 2.2 0.6–2.8 81–162 350043 CurvePDF
CDM1-21CDMF1-21 CDM12160 2.2 0.6–2.8 90–180 350043 CurvePDF
CDM1-23CDMF1-23 CDM12360 2.2 0.6–2.8 98–197 350044 CurvePDF
CDM1-25CDMF1-25 CDM12560 2.2 0.6–2.8 107–215 350045 CurvePDF
CDM1-26CDMF1-26 CDM12660 2.2 0.6–2.8 111–223 350046 CurvePDF
CDM1-27CDMF1-27 CDM12760 3 0.6–2.8 115–232 350057 CurvePDF
CDM1-29CDMF1-29 CDM12960 3 0.6–2.8 123–249 350058 CurvePDF
CDM3-2CDMF3-2 CDM3260 0.37 1.4–5.2 9.2–21.2 350024 CurvePDF
CDM3-3CDMF3-3 CDM3360 0.55 1.4–5.2 14.6–32 350025 CurvePDF
CDM3-4CDMF3-4 CDM3460 0.75 1.4–5.2 20–43 350028 CurvePDF
CDM3-5CDMF3-5 CDM3560 1.1 1.4–5.2 24.5–54 350031 CurvePDF
CDM3-6CDMF3-6 CDM3660 1.1 1.4–5.2 29.5–65 350031 CurvePDF
CDM3-7CDMF3-7 CDM3760 1.1 1.4–5.2 35–76 350032 CurvePDF
CDM3-8CDMF3-8 CDM3860 1.5 1.4–5.2 40–86 350037 CurvePDF
CDM3-9CDMF3-9 CDM3960 1.5 1.4–5.2 45–97 350037 CurvePDF
CDM3-10CDMF3-10 CDM31060 2.2 1.4–5.2 50–108 350040 CurvePDF
CDM3-11CDMF3-11 CDM31160 2.2 1.4–5.2 56–119 350040 CurvePDF
CDM3-12CDMF3-12 CDM31260 2.2 1.4–5.2 60–130 350041 CurvePDF
CDM3-13CDMF3-13 CDM31360 2.2 1.4–5.2 66–141 350041 CurvePDF
CDM3-14CDMF3-14 CDM31460 2.2 1.4–5.2 70–152 350042 CurvePDF
CDM3-15CDMF3-15 CDM31560 3 1.4–5.2 77–163 350052 CurvePDF
CDM3-16CDMF3-16 CDM31660 3 1.4–5.2 82–174 350053 CurvePDF
CDM3-18CDMF3-18 CDM31860 3 1.4–5.2 92–196 350054 CurvePDF
CDM3-19CDMF3-19 CDM31960 3 1.4–5.2 97–206 350054 CurvePDF
CDM3-20CDMF3-20 CDM32060 4 1.4–5.2 103–218 350061 CurvePDF
CDM3-21CDMF3-21 CDM32160 4 1.4–5.2 108–228 350061 CurvePDF
CDM3-22CDMF3-22 CDM32260 4 1.4–5.2 113–239 350062 CurvePDF
CDM3-23CDMF3-23 CDM32360 4 1.4–5.2 117–250 350062 CurvePDF
CDM5-2CDMF5-2 CDM5260 0.55 3–10 6.2–21.2 350025 CurvePDF
CDM5-3CDMF5-3 CDM5360 0.75 3–10 11.5–31.8 350028 CurvePDF
CDM5-4CDMF5-4 CDM5460 1.1 3–10 16.8–42.5 350031 CurvePDF
CDM5-5CDMF5-5 CDM5560 1.5 3–10 23–53.3 350037 CurvePDF
CDM5-6CDMF5-6 CDM5660 1.5 3–10 27.5–64 350037 CurvePDF
CDM5-7CDMF5-7 CDM5760 2.2 3–10 32–75 350040 CurvePDF
CDM5-8CDMF5-8 CDM5860 2.2 3–10 36.5–85 350040 CurvePDF
CDM5-9CDMF5-9 CDM5960 2.2 3–10 41–96.5 350041 CurvePDF
CDM5-10CDMF5-10 CDM51060 3 3–10 46–107 350051 CurvePDF
CDM5-11CDMF5-11 CDM51160 3 3–10 50.5–118 350052 CurvePDF
CDM5-12CDMF5-12 CDM51260 3 3–10 56–129 350052 CurvePDF
CDM5-13CDMF5-13 CDM51360 4 3–10 61–140 350059 CurvePDF
CDM5-14CDMF5-14 CDM51460 4 3–10 66–151 350060 CurvePDF
CDM5-15CDMF5-15 CDM51560 4 3–10 71–161 350060 CurvePDF
CDM5-16CDMF5-16 CDM51660 4 3–10 76–172 350061 CurvePDF
CDM5-17CDMF5-17 CDM51760 5.5 3–10 81–183 350081 CurvePDF
CDM5-18CDMF5-18 CDM51860 5.5 3–10 86–194 350081 CurvePDF
CDM5-20CDMF5-20 CDM52060 5.5 3–10 95–215 350082 CurvePDF
CDM5-21CDMF5-21 CDM52160 5.5 3–10 100–226 350083 CurvePDF
CDM5-22CDMF5-22 CDM52260 5.5 3–10 107–236 350083 CurvePDF
CDM5-23CDMF5-23 CDM52360 5.5 3–10 113–248 350084 CurvePDF
CDM10-1CDMF10-1 CDM10160 0.75 6–17 6.5–15.8 350031 CurvePDF
CDM10-2CDMF10-2 CDM10260 1.5 6–17 13.5–32 350039 CurvePDF
CDM10-3CDMF10-3 CDM10360 2.2 6–17 23–48 350042 CurvePDF
CDM10-4CDMF10-4 CDM10460 3 6–17 30.5–64 350053 CurvePDF
CDM10-5CDMF10-5 CDM10560 4 6–17 39–80 350062 CurvePDF
CDM10-6CDMF10-6 CDM10660 4 6–17 47.5–96.5 350063 CurvePDF
CDM10-7CDMF10-7 CDM10760 5.5 6–17 56–113 350084 CurvePDF
CDM10-8CDMF10-8 CDM10860 5.5 6–17 64.5–130 350085 CurvePDF
CDM10-9CDMF10-9 CDM10960 7.5 6–17 73–146 350089 CurvePDF
CDM10-10CDMF10-10 CDM101060 7.5 6–17 82–163 350090 CurvePDF
CDM10-11CDMF10-11 CDM101160 7.5 6–17 89–179 350091 CurvePDF
CDM10-12CDMF10-12 CDM101260 7.5 6–17 98–197 350092 CurvePDF
CDM10-13CDMF10-13 CDM101360 11 6–17 107–213 3500162 CurvePDF
CDM10-14CDMF10-14 CDM101460 11 6–17 115–230 3500163 CurvePDF
CDM10-15CDMF10-15 CDM101560 11 6–17 123–246 3500164 CurvePDF
CDM15-1CDMF15-1 CDM15160 1.5 10–29 9.2–18 350047 CurvePDF
CDM15-2CDMF15-2 CDM15260 3 10–29 19.5–38 350060 CurvePDF
CDM15-3CDMF15-3 CDM15360 4 10–29 30–57 350068 CurvePDF
CDM15-4CDMF15-4 CDM15460 5.5 10–29 41–80 350090 CurvePDF
CDM15-5CDMF15-5 CDM15560 7.5 10–29 52–100 350094 CurvePDF
CDM15-6CDMF15-6 CDM15660 11 10–29 63–120 3500175 CurvePDF
CDM15-7CDMF15-7 CDM15760 11 10–29 74–141 3500177 CurvePDF
CDM15-8CDMF15-8 CDM15860 11 10–29 86–161 3500178 CurvePDF
CDM15-9CDMF15-9 CDM15960 15 10–29 97–183 3500180 CurvePDF
CDM15-10CDMF15-10 CDM151060 15 10–29 108–203 3500181 CurvePDF
CDM15-11CDMF15-11 CDM151160 15 10–29 119–222 3500182 CurvePDF
CDM15-12CDMF15-12 CDM151260 18.5 10–29 131–239 3500192 CurvePDF
CDM20-1CDMF20-1 CDM20160 2.2 13–35 10.7–19.5 350047 CurvePDF
CDM20-2CDMF20-2 CDM20260 4 13–35 21.5–40 350065 CurvePDF
CDM20-3CDMF20-3 CDM20360 5.5 13–35 33–60 350087 CurvePDF
CDM20-4CDMF20-4 CDM20460 7.5 13–35 44–80 350091 CurvePDF
CDM20-5CDMF20-5 CDM20560 11 13–35 56–100 3500158 CurvePDF
CDM20-6CDMF20-6 CDM20660 11 13–35 70–121 3500160 CurvePDF
CDM20-7CDMF20-7 CDM20760 15 13–35 84–141 3500176 CurvePDF
CDM20-8CDMF20-8 CDM20860 15 13–35 96–163 3500177 CurvePDF
CDM20-9CDMF20-9 CDM20960 18.5 13–35 108–183 3500187 CurvePDF
CDM20-10CDMF20-10 CDM201060 18.5 13–35 119–203 3500188 CurvePDF
CDM32-1-1CDMF32-1-1 CDM32160 3 20–48 7–24 350078 CurvePDF
CDM32-1CDMF32-1 CDM32160 4 20–48 14–33 350084 CurvePDF
CDM32-2-2CDMF32-2-2 CDM32260 5.5 20–48 17–46 350099 CurvePDF
CDM32-2CDMF32-2 CDM32260 7.5 20–48 27–56 3500107 CurvePDF
CDM32-3-2CDMF32-3-2 CDM32360 7.5 20–48 31–73 3500110 CurvePDF
CDM32-3CDMF32-3 CDM32360 11 20–48 40–85 3500178 CurvePDF
CDM32-4-2CDMF32-4-2 CDM32460 11 20–48 45–102 3500181 CurvePDF
CDM32-4CDMF32-4 CDM32460 15 20–48 55–114 3500196 CurvePDF
CDM32-5-2CDMF32-5-2 CDM32560 15 20–48 59–131 3500199 CurvePDF
CDM32-5CDMF32-5 CDM32560 18.5 20–48 69–141 3500207 CurvePDF
CDM32-6-2CDMF32-6-2 CDM32660 18.5 20–48 74–159 3500209 CurvePDF
CDM32-6CDMF32-6 CDM32660 18.5 20–48 81–170 3500209 CurvePDF
CDM32-7-2CDMF32-7-2 CDM32760 22 20–48 86–185 3500265 CurvePDF
CDM32-7CDMF32-7 CDM32760 22 20–48 97–197 3500265 CurvePDF
CDM32-8-2CDMF32-8-2 CDM32860 22 20–48 102–211 3500268 CurvePDF
CDM32-8CDMF32-8 CDM32860 30 20–48 111–222 3500329 CurvePDF
CDM32-9-2CDMF32-9-2 CDM32960 30 20–48 117–238 3500332 CurvePDF
CDM32-9CDMF32-9 CDM32960 30 20–48 127–250 3500332 CurvePDF
CDM32-10-2CDMF32-10-2 CDM321060 30 20–48 133–270 3500335 CurvePDF
CDM42-1-1CDMF42-1-1 CDM42160 5.5 30–65 16–31 3500109 CurvePDF
CDM42-1CDMF42-1 CDM42160 7.5 30–65 22–39 3500118 CurvePDF
CDM42-2-2CDMF42-2-2 CDM42260 11 30–65 33–60 3500189 CurvePDF
CDM42-2CDMF42-2 CDM42260 15 30–65 44–74 3500204 CurvePDF
CDM42-3-2CDMF42-3-2 CDM42360 18.5 30–65 55–89 3500215 CurvePDF
CDM42-3CDMF42-3 CDM42360 18.5 30–65 68–111 3500215 CurvePDF
CDM42-4-2CDMF42-4-2 CDM42460 22 30–65 78–128 3500272 CurvePDF
CDM42-4CDMF42-4 CDM42460 30 30–65 89–138 3500333 CurvePDF
CDM42-5-2CDMF42-5-2 CDM42560 30 30–65 99–157 3500337 CurvePDF
CDM42-5CDMF42-5 CDM42560 30 30–65 112–177 3500337 CurvePDF
CDM42-6-2CDMF42-6-2 CDM42660 37 30–65 122–197 3500360 CurvePDF
CDM42-6CDMF42-6 CDM42660 37 30–65 134–210 3500360 CurvePDF
CDM42-7-2CDMF42-7-2 CDM42760 45 30–65 144–221 3500463 CurvePDF
CDM42-7CDMF42-7 CDM42760 45 30–65 157–237 3500463 CurvePDF
CDM65-1-1CDMF65-1-1 CDM65160 7.5 40–100 10–30 3500129 CurvePDF
CDM65-1CDMF65-1 CDM65160 11 40–100 21–43 3500197 CurvePDF
CDM65-2-2CDMF65-2-2 CDM65260 15 40–100 23–54 3500216 CurvePDF
CDM65-2CDMF65-2 CDM65260 22 40–100 42–82 3500277 CurvePDF
CDM65-3-2CDMF65-3-2 CDM65360 22 40–100 45–97 3500280 CurvePDF
CDM65-3CDMF65-3 CDM65360 30 40–100 65–122 3500341 CurvePDF
CDM65-4-2CDMF65-4-2 CDM65460 37 40–100 66–137 3500365 CurvePDF
CDM65-4CDMF65-4 CDM65460 45 40–100 86–159 3500465 CurvePDF
CDM65-5-2CDMF65-5-2 CDM65560 45 40–100 91–171 3500469 CurvePDF
CDM85-1-1CDMF85-1-1 CDM85160 11 60–130 9–36 3500186 CurvePDF
CDM85-1CDMF85-1 CDM85160 15 60–130 18–44 3500201 CurvePDF
CDM85-2-2CDMF85-2-2 CDM85260 18.5 60–130 22–66 3500213 CurvePDF
CDM85-2-1CDMF85-2-1 CDM85260 22 60–130 33–80 3500266 CurvePDF
CDM85-2CDMF85-2 CDM85260 30 60–130 44–99 3500327 CurvePDF
CDM85-3-2CDMF85-3-2 CDM85360 37 60–130 46–114 3500351 CurvePDF
CDM85-3-1CDMF85-3-1 CDM85360 37 60–130 56–129 3500351 CurvePDF
CDM85-3CDMF85-3 CDM85360 45 60–130 69–142 3500451 CurvePDF
CDM85-4-2CDMF85-4-2 CDM85460 45 60–130 72–163 3500455 CurvePDF
CDM120-1-1CDMF120-1-1 CDM120160 15 60–160 20–28 3540235 CurvePDF
CDM120-1CDMF120-1 CDM120160 18.5 60–160 24.4–32 3540250 CurvePDF
CDM120-2-2CDMF120-2-2 CDM120260 30 60–160 38.5–53 3540350 CurvePDF
CDM120-2-1CDMF120-2-1 CDM120260 30 60–160 45–61.7 3540350 CurvePDF
CDM120-2CDMF120-2 CDM120260 37 60–160 54.6–70.5 3540380 CurvePDF
CDM120-3-2CDMF120-3-2 CDM120360 45 60–160 65–85 3540445 CurvePDF
CDM120-3-1CDMF120-3-1 CDM120360 45 60–160 73.3–95 3540445 CurvePDF
CDM120-3CDMF120-3 CDM120360 55 60–160 82.7–104 3540545 CurvePDF
CDM120-4-2CDMF120-4-2 CDM120460 75 60–160 93–118.5 3540675 CurvePDF
CDM120-4-1CDMF120-4-1 CDM120460 75 60–160 103–130 3540675 CurvePDF
CDM120-4CDMF120-4 CDM120460 75 60–160 109.5–139 3540675 CurvePDF
CDM120-5-2CDMF120-5-2 CDM120560 75 60–160 122–156 3540690 CurvePDF
CDM150-1-1CDMF150-1-1 CDM150160 15 80–180 18–28 3540235 CurvePDF
CDM150-1CDMF150-1 CDM150160 22 80–180 27–37 3540280 CurvePDF
CDM150-2-2CDMF150-2-2 CDM150260 30 80–180 43–60 3540360 CurvePDF
CDM150-2-1CDMF150-2-1 CDM150260 37 80–180 51–70 3540380 CurvePDF
CDM150-2CDMF150-2 CDM150260 45 80–180 59–80 3540435 CurvePDF
CDM150-3-2CDMF150-3-2 CDM150360 55 80–180 72.5–99 3540545 CurvePDF
CDM150-3-1CDMF150-3-1 CDM150360 75 80–180 80–110 3540665 CurvePDF
CDM150-3CDMF150-3 CDM150360 75 80–180 89.4–121 3540665 CurvePDF
CDM150-4-2CDMF150-4-2 CDM150460 75 80–180 102.5–139 3540680 CurvePDF
CDM200-1-BCDMF200-1-B CDM200160 30 100–240 29–40 3540348 CurvePDF
CDM200-1-ACDMF200-1-A CDM200160 37 100–240 34.5–45 3540395 CurvePDF
CDM200-1CDMF200-1 CDM200160 45 100–240 48.5–59 3540446 CurvePDF
CDM200-2-2BCDMF200-2-2B CDM200260 55 100–240 58.5–81.6 3540498 CurvePDF
CDM200-2-2ACDMF200-2-2A CDM200260 75 100–240 70–92 3540591 CurvePDF
CDM200-2-BCDMF200-2-B CDM200260 75 100–240 79–101 3540710 CurvePDF
CDM200-2-ACDMF200-2-A CDM200260 90 100–240 84–106 3540710 CurvePDF
CDM200-2CDMF200-2 CDM200260 90 100–240 98.5–120 3540710 CurvePDF
CDM200-3-2BCDMF200-3-2B CDM200360 110 100–240 108.5–140 3540855 CurvePDF
CDM200-3-A-BCDMF200-3-A-B CDM200360 110 100–240 113.5–145 3540855 CurvePDF
CDM200-3-2ACDMF200-3-2A CDM200360 110 100–240 120–152 3540855 CurvePDF

Performance range

Every model of the CDM / CDMF range on one chart: each line is the performance curve of one model. Click a line or dot to open that model with its full data.

0.51251020501002005102050100200Flow (m³/h)Head (m)CDM1-2 · 50 HzCDM1-3 · 50 HzCDM1-4 · 50 HzCDM1-5 · 50 HzCDM1-6 · 50 HzCDM1-7 · 50 HzCDM1-8 · 50 HzCDM1-9 · 50 HzCDM1-10 · 50 HzCDM1-11 · 50 HzCDM1-12 · 50 HzCDM1-13 · 50 HzCDM1-15 · 50 HzCDM1-17 · 50 HzCDM1-19 · 50 HzCDM1-21 · 50 HzCDM1-22 · 50 HzCDM1-23 · 50 HzCDM1-25 · 50 HzCDM1-27 · 50 HzCDM1-30 · 50 HzCDM1-32 · 50 HzCDM1-33 · 50 HzCDM1-34 · 50 HzCDM1-36 · 50 HzCDM1-38 · 50 HzCDM1-40 · 50 HzCDM3-2 · 50 HzCDM3-3 · 50 HzCDM3-4 · 50 HzCDM3-5 · 50 HzCDM3-6 · 50 HzCDM3-7 · 50 HzCDM3-8 · 50 HzCDM3-9 · 50 HzCDM3-10 · 50 HzCDM3-11 · 50 HzCDM3-12 · 50 HzCDM3-13 · 50 HzCDM3-14 · 50 HzCDM3-15 · 50 HzCDM3-16 · 50 HzCDM3-18 · 50 HzCDM3-19 · 50 HzCDM3-20 · 50 HzCDM3-21 · 50 HzCDM3-22 · 50 HzCDM3-23 · 50 HzCDM3-24 · 50 HzCDM3-25 · 50 HzCDM3-27 · 50 HzCDM3-28 · 50 HzCDM3-29 · 50 HzCDM3-31 · 50 HzCDM5-2 · 50 HzCDM5-3 · 50 HzCDM5-4 · 50 HzCDM5-5 · 50 HzCDM5-6 · 50 HzCDM5-7 · 50 HzCDM5-8 · 50 HzCDM5-9 · 50 HzCDM5-10 · 50 HzCDM5-11 · 50 HzCDM5-12 · 50 HzCDM5-13 · 50 HzCDM5-14 · 50 HzCDM5-15 · 50 HzCDM5-16 · 50 HzCDM5-17 · 50 HzCDM5-18 · 50 HzCDM5-20 · 50 HzCDM5-21 · 50 HzCDM5-22 · 50 HzCDM5-23 · 50 HzCDM5-24 · 50 HzCDM5-25 · 50 HzCDM5-27 · 50 HzCDM5-28 · 50 HzCDM5-29 · 50 HzCDM5-30 · 50 HzCDM5-33 · 50 HzCDM10-1 · 50 HzCDM10-2 · 50 HzCDM10-3 · 50 HzCDM10-4 · 50 HzCDM10-5 · 50 HzCDM10-6 · 50 HzCDM10-7 · 50 HzCDM10-8 · 50 HzCDM10-9 · 50 HzCDM10-10 · 50 HzCDM10-11 · 50 HzCDM10-12 · 50 HzCDM10-13 · 50 HzCDM10-14 · 50 HzCDM10-15 · 50 HzCDM10-16 · 50 HzCDM10-17 · 50 HzCDM10-18 · 50 HzCDM10-19 · 50 HzCDM10-20 · 50 HzCDM10-21 · 50 HzCDM10-22 · 50 HzCDM15-1 · 50 HzCDM15-2 · 50 HzCDM15-3 · 50 HzCDM15-4 · 50 HzCDM15-5 · 50 HzCDM15-6 · 50 HzCDM15-7 · 50 HzCDM15-8 · 50 HzCDM15-9 · 50 HzCDM15-10 · 50 HzCDM15-11 · 50 HzCDM15-12 · 50 HzCDM15-13 · 50 HzCDM15-14 · 50 HzCDM15-15 · 50 HzCDM15-16 · 50 HzCDM15-17 · 50 HzCDM15-18 · 50 HzCDM20-1 · 50 HzCDM20-2 · 50 HzCDM20-3 · 50 HzCDM20-4 · 50 HzCDM20-5 · 50 HzCDM20-6 · 50 HzCDM20-7 · 50 HzCDM20-8 · 50 HzCDM20-10 · 50 HzCDM20-12 · 50 HzCDM20-14 · 50 HzCDM20-17 · 50 HzCDM32-1-1 · 50 HzCDM32-1 · 50 HzCDM32-2-2 · 50 HzCDM32-2 · 50 HzCDM32-3-2 · 50 HzCDM32-3 · 50 HzCDM32-4-2 · 50 HzCDM32-4 · 50 HzCDM32-5-2 · 50 HzCDM32-5 · 50 HzCDM32-6-2 · 50 HzCDM32-6 · 50 HzCDM32-7-2 · 50 HzCDM32-7 · 50 HzCDM32-8-2 · 50 HzCDM32-8 · 50 HzCDM32-9-2 · 50 HzCDM32-9 · 50 HzCDM32-10-2 · 50 HzCDM32-10 · 50 HzCDM32-11-2 · 50 HzCDM32-11 · 50 HzCDM32-12-2 · 50 HzCDM32-12 · 50 HzCDM32-13-2 · 50 HzCDM32-13 · 50 HzCDM32-14-2 · 50 HzCDM32-14 · 50 HzCDM32-15-2 · 50 HzCDM32-15 · 50 HzCDM32-16-2 · 50 HzCDM32-16 · 50 HzCDM42-1-1 · 50 HzCDM42-1 · 50 HzCDM42-2-2 · 50 HzCDM42-2 · 50 HzCDM42-3-2 · 50 HzCDM42-3 · 50 HzCDM42-4-2 · 50 HzCDM42-4 · 50 HzCDM42-5-2 · 50 HzCDM42-5 · 50 HzCDM42-6-2 · 50 HzCDM42-6 · 50 HzCDM42-7-2 · 50 HzCDM42-7 · 50 HzCDM42-8-2 · 50 HzCDM42-8 · 50 HzCDM42-9-2 · 50 HzCDM42-9 · 50 HzCDM42-10-2 · 50 HzCDM42-10 · 50 HzCDM42-11-2 · 50 HzCDM42-11 · 50 HzCDM42-12-2 · 50 HzCDM42-12 · 50 HzCDM42-13-2 · 50 HzCDM65-1-1 · 50 HzCDM65-1 · 50 HzCDM65-2-2 · 50 HzCDM65-2-1 · 50 HzCDM65-2 · 50 HzCDM65-3-2 · 50 HzCDM65-3-1 · 50 HzCDM65-3 · 50 HzCDM65-4-2 · 50 HzCDM65-4-1 · 50 HzCDM65-4 · 50 HzCDM65-5-2 · 50 HzCDM65-5-1 · 50 HzCDM65-5 · 50 HzCDM65-6-2 · 50 HzCDM65-6-1 · 50 HzCDM65-6 · 50 HzCDM65-7-2 · 50 HzCDM65-7-1 · 50 HzCDM65-7 · 50 HzCDM65-8-2 · 50 HzCDM65-8-1 · 50 HzCDM85-1-1 · 50 HzCDM85-1 · 50 HzCDM85-2-2 · 50 HzCDM85-2 · 50 HzCDM85-3-2 · 50 HzCDM85-3 · 50 HzCDM85-4-2 · 50 HzCDM85-4 · 50 HzCDM85-5-2 · 50 HzCDM85-5 · 50 HzCDM85-6-2 · 50 HzCDM85-6 · 50 HzCDM120-1 · 50 HzCDM120-2-2 · 50 HzCDM120-2-1 · 50 HzCDM120-2 · 50 HzCDM120-3-2 · 50 HzCDM120-3-1 · 50 HzCDM120-3 · 50 HzCDM120-4-2 · 50 HzCDM120-4-1 · 50 HzCDM120-4 · 50 HzCDM120-5-2 · 50 HzCDM120-5-1 · 50 HzCDM120-5 · 50 HzCDM120-6-2 · 50 HzCDM120-6-1 · 50 HzCDM120-6 · 50 HzCDM120-7-2 · 50 HzCDM120-7-1 · 50 HzCDM120-7 · 50 HzCDM150-1-1 · 50 HzCDM150-1 · 50 HzCDM150-2-2 · 50 HzCDM150-2-1 · 50 HzCDM150-2 · 50 HzCDM150-3-2 · 50 HzCDM150-3-1 · 50 HzCDM150-3 · 50 HzCDM150-4-2 · 50 HzCDM150-4-1 · 50 HzCDM150-4 · 50 HzCDM150-5-2 · 50 HzCDM150-5-1 · 50 HzCDM150-5 · 50 HzCDM150-6-2 · 50 HzCDM150-6-1 · 50 HzCDM150-6 · 50 HzCDM200-1-B · 50 HzCDM200-1-A · 50 HzCDM200-1 · 50 HzCDM200-2-2B · 50 HzCDM200-2-2A · 50 HzCDM200-2-A · 50 HzCDM200-2 · 50 HzCDM200-3-2B · 50 HzCDM200-3-A-B · 50 HzCDM200-3-2A · 50 HzCDM200-3-B · 50 HzCDM200-3-A · 50 HzCDM200-3 · 50 HzCDM200-4-2B · 50 HzCDM200-4-2A · 50 HzCDM200-4-A · 50 HzCDM200-4 · 50 HzCDM1-2 · 60 HzCDM1-3 · 60 HzCDM1-4 · 60 HzCDM1-5 · 60 HzCDM1-6 · 60 HzCDM1-7 · 60 HzCDM1-8 · 60 HzCDM1-9 · 60 HzCDM1-10 · 60 HzCDM1-11 · 60 HzCDM1-12 · 60 HzCDM1-13 · 60 HzCDM1-15 · 60 HzCDM1-17 · 60 HzCDM1-19 · 60 HzCDM1-21 · 60 HzCDM1-23 · 60 HzCDM1-25 · 60 HzCDM1-26 · 60 HzCDM1-27 · 60 HzCDM1-29 · 60 HzCDM3-2 · 60 HzCDM3-3 · 60 HzCDM3-4 · 60 HzCDM3-5 · 60 HzCDM3-6 · 60 HzCDM3-7 · 60 HzCDM3-8 · 60 HzCDM3-9 · 60 HzCDM3-10 · 60 HzCDM3-11 · 60 HzCDM3-12 · 60 HzCDM3-13 · 60 HzCDM3-14 · 60 HzCDM3-15 · 60 HzCDM3-16 · 60 HzCDM3-18 · 60 HzCDM3-19 · 60 HzCDM3-20 · 60 HzCDM3-21 · 60 HzCDM3-22 · 60 HzCDM3-23 · 60 HzCDM5-2 · 60 HzCDM5-3 · 60 HzCDM5-4 · 60 HzCDM5-5 · 60 HzCDM5-6 · 60 HzCDM5-7 · 60 HzCDM5-8 · 60 HzCDM5-9 · 60 HzCDM5-10 · 60 HzCDM5-11 · 60 HzCDM5-12 · 60 HzCDM5-13 · 60 HzCDM5-14 · 60 HzCDM5-15 · 60 HzCDM5-16 · 60 HzCDM5-17 · 60 HzCDM5-18 · 60 HzCDM5-20 · 60 HzCDM5-21 · 60 HzCDM5-22 · 60 HzCDM5-23 · 60 HzCDM10-1 · 60 HzCDM10-2 · 60 HzCDM10-3 · 60 HzCDM10-4 · 60 HzCDM10-5 · 60 HzCDM10-6 · 60 HzCDM10-7 · 60 HzCDM10-8 · 60 HzCDM10-9 · 60 HzCDM10-10 · 60 HzCDM10-11 · 60 HzCDM10-12 · 60 HzCDM10-13 · 60 HzCDM10-14 · 60 HzCDM10-15 · 60 HzCDM15-1 · 60 HzCDM15-2 · 60 HzCDM15-3 · 60 HzCDM15-4 · 60 HzCDM15-5 · 60 HzCDM15-6 · 60 HzCDM15-7 · 60 HzCDM15-8 · 60 HzCDM15-9 · 60 HzCDM15-10 · 60 HzCDM15-11 · 60 HzCDM15-12 · 60 HzCDM20-1 · 60 HzCDM20-2 · 60 HzCDM20-3 · 60 HzCDM20-4 · 60 HzCDM20-5 · 60 HzCDM20-6 · 60 HzCDM20-7 · 60 HzCDM20-8 · 60 HzCDM20-9 · 60 HzCDM20-10 · 60 HzCDM32-1-1 · 60 HzCDM32-1 · 60 HzCDM32-2-2 · 60 HzCDM32-2 · 60 HzCDM32-3-2 · 60 HzCDM32-3 · 60 HzCDM32-4-2 · 60 HzCDM32-4 · 60 HzCDM32-5-2 · 60 HzCDM32-5 · 60 HzCDM32-6-2 · 60 HzCDM32-6 · 60 HzCDM32-7-2 · 60 HzCDM32-7 · 60 HzCDM32-8-2 · 60 HzCDM32-8 · 60 HzCDM32-9-2 · 60 HzCDM32-9 · 60 HzCDM32-10-2 · 60 HzCDM42-1-1 · 60 HzCDM42-1 · 60 HzCDM42-2-2 · 60 HzCDM42-2 · 60 HzCDM42-3-2 · 60 HzCDM42-3 · 60 HzCDM42-4-2 · 60 HzCDM42-4 · 60 HzCDM42-5-2 · 60 HzCDM42-5 · 60 HzCDM42-6-2 · 60 HzCDM42-6 · 60 HzCDM42-7-2 · 60 HzCDM42-7 · 60 HzCDM65-1-1 · 60 HzCDM65-1 · 60 HzCDM65-2-2 · 60 HzCDM65-2 · 60 HzCDM65-3-2 · 60 HzCDM65-3 · 60 HzCDM65-4-2 · 60 HzCDM65-4 · 60 HzCDM65-5-2 · 60 HzCDM85-1-1 · 60 HzCDM85-1 · 60 HzCDM85-2-2 · 60 HzCDM85-2-1 · 60 HzCDM85-2 · 60 HzCDM85-3-2 · 60 HzCDM85-3-1 · 60 HzCDM85-3 · 60 HzCDM85-4-2 · 60 HzCDM120-1-1 · 60 HzCDM120-1 · 60 HzCDM120-2-2 · 60 HzCDM120-2-1 · 60 HzCDM120-2 · 60 HzCDM120-3-2 · 60 HzCDM120-3-1 · 60 HzCDM120-3 · 60 HzCDM120-4-2 · 60 HzCDM120-4-1 · 60 HzCDM120-4 · 60 HzCDM120-5-2 · 60 HzCDM150-1-1 · 60 HzCDM150-1 · 60 HzCDM150-2-2 · 60 HzCDM150-2-1 · 60 HzCDM150-2 · 60 HzCDM150-3-2 · 60 HzCDM150-3-1 · 60 HzCDM150-3 · 60 HzCDM150-4-2 · 60 HzCDM200-1-B · 60 HzCDM200-1-A · 60 HzCDM200-1 · 60 HzCDM200-2-2B · 60 HzCDM200-2-2A · 60 HzCDM200-2-B · 60 HzCDM200-2-A · 60 HzCDM200-2 · 60 HzCDM200-3-2B · 60 HzCDM200-3-A-B · 60 HzCDM200-3-2A · 60 Hz

Logarithmic scales. Published catalogue data for clean water; the correct model for your duty is confirmed by our engineers.

Dimensions & weight

Net weight and the main dimensions of each model, in millimetres, from the catalogue. Open a model for the labelled dimension drawing.

ModelHzWeight (kg)H1H2HD1D2weight_cdmf_kgH_oth
CDM1-2502318722048214010319457
CDM1-3502320722050214010319477
CDM1-4502422722052214010320497
CDM1-5502424722054214010320517
CDM1-6502526722056214010321537
CDM1-7502528722058214010321557
CDM1-8502730722060214010323577
CDM1-9502732722062214010323597
CDM1-10502834722064214010324617
CDM1-11502836722066214010324637
CDM1-12503139725072214810827697
CDM1-13503141725074214810827717
CDM1-15503245725078214810828757
CDM1-17503549725082214810831797
CDM1-19503653725086214810832837
CDM1-21503657725090214810832877
CDM1-22503759725092214810833897
CDM1-23504362729399517212039970
CDM1-2550446672931035172120401010
CDM1-2750457072931075172120411050
CDM1-3050467672931135172120421110
CDM1-3250498072931175172120451150
CDM1-3350498272931195172120451170
CDM1-3450508472931215172120461190
CDM1-3650518872931255172120471230
CDM1-3850519272931295172120471270
CDM1-4050529672931335172120481310
CDM3-2502418722048214010320457
CDM3-3502420722050214010320477
CDM3-4502522722052214010321497
CDM3-5502624722054214010322517
CDM3-6502726722056214010323537
CDM3-7503029725062214810826597
CDM3-8503031725064214810826617
CDM3-9503233725066214810828637
CDM3-10503335725068214810829657
CDM3-11503337725070214810829677
CDM3-12503439725072214810830697
CDM3-13503942729379517212035770
CDM3-14504044729381517212036790
CDM3-15504046729383517212036810
CDM3-16504148729385517212037830
CDM3-18504352729389517212039870
CDM3-19504454729391517212040890
CDM3-20504456729393517212040910
CDM3-21504558729395517212041930
CDM3-22504560729397517212041950
CDM3-23504662729399517212042970
CDM3-245046647293101517212042990
CDM3-2550576773451097197132531072
CDM3-2750587173451137197132541112
CDM3-2850587373451157197132541132
CDM3-2950587573451177197132541152
CDM3-3150597973451217197132551192
CDM5-2502420122049614010319471
CDM5-3502622822052314010321498
CDM5-4502725522055014010322525
CDM5-5503029225061714810825592
CDM5-6503231925064414810827619
CDM5-7503234625067114810827646
CDM5-8503337325069814810828673
CDM5-9503841029377817212033753
CDM5-10503943729380517212034780
CDM5-11503946429383217212034807
CDM5-12504249129385917212037834
CDM5-13504251829388617212037861
CDM5-14504354529391317212038888
CDM5-15504357229394017212038915
CDM5-16504459929396717212039942
CDM5-1750556363451056197132501031
CDM5-1850556633451083197132501058
CDM5-2050567173451137197132511112
CDM5-2150577443451164197132521139
CDM5-2250647713481194215151591169
CDM5-2350657983481221215151601196
CDM5-2450658253481248215151601223
CDM5-2550668523481275215151611250
CDM5-2750679063481329215151621304
CDM5-2850679333481356215151621331
CDM5-29508710353901500260168821475
CDM5-30508810623901527260168831502
CDM5-33508911433901608260168841583
CDM10-1503126725059714810829—
CDM10-2503226725059714810830—
CDM10-3503529725062714810833—
CDM10-4504133729371017212039—
CDM10-5504536729374017212043—
CDM10-6504639729377017212044—
CDM10-7505743734586219713255—
CDM10-8505846734589219713256—
CDM10-9506549734892521515163—
CDM10-10506652734895521515164—
CDM10-11506755734898521515165—
CDM10-125068587348101521515166—
CDM10-135088695390116526016886—
CDM10-145089725390119526016887—
CDM10-155090755390122526016888—
CDM10-165099785390125526016897—
CDM10-1750100815390128526016898—
CDM10-1850101845390131526016899—
CDM10-19501028753901345260168100—
CDM10-20501039053901375260168101—
CDM10-21501049353901405260168102—
CDM10-22501709955001575330205168—
CDM15-1504029725063714810833—
CDM15-2504830729369017212041—
CDM15-3505936234579719713252—
CDM15-4506640734884521515159—
CDM15-5506845234889021515161—
CDM15-65090575390105526016883—
CDM15-75091620390110026016884—
CDM15-85098665390114526016891—
CDM15-95099710390119026016892—
CDM15-10501577855001375330205150—
CDM15-11501598305001420330205152—
CDM15-12501608755001465330205153—
CDM15-13501629205001510330205155—
CDM15-14501639655001555330205156—
CDM15-155017910105001600330205172—
CDM15-165018110555001645330205174—
CDM15-175018211005001690330205175—
CDM15-185018411455001735330205177—
CDM20-1504029725063714810833—
CDM20-2504830729369017212041—
CDM20-3506636234880021515159—
CDM20-4508848539096526016881—
CDM20-55090530390101026016883—
CDM20-65099575390105526016892—
CDM20-750100620390110026016893—
CDM20-8501676955001285330205160—
CDM20-10501707855001375330205163—
CDM20-12501888755001465330205181—
CDM20-14501919655001555330205184—
CDM20-175021211005451735330205205—
CDM32-1-1506632929372717212054—
CDM32-1506832929372717212056—
CDM32-2-2507339934584919713269—
CDM32-2507939934885221515175—
CDM32-3-250102560390105526016898—
CDM32-350102560390105526016898—
CDM32-4-2501136303901125260168109—
CDM32-4501136303901125260168109—
CDM32-5-2501847305001335330205179—
CDM32-5501847305001335330205179—
CDM32-6-2501868005001405330205182—
CDM32-6501868005001405330205182—
CDM32-7-2502048705001475330205200—
CDM32-7502048705001475330205200—
CDM32-8-2502079405001545330205203—
CDM32-8502079405001545330205203—
CDM32-9-25021810105451660330205214—
CDM32-95021810105451660330205214—
CDM32-10-25022110805451730330205217—
CDM32-105022110805451730330205217—
CDM32-11-25027711505761831375230272—
CDM32-115027711505761831375230272—
CDM32-12-25028012205761901375230275—
CDM32-125028012205761901375230275—
CDM32-13-25034312906502045418256339—
CDM32-135034312906502045418256339—
CDM32-14-25034613606502115418256342—
CDM32-145034613606502115418256342—
CDM32-15-25034914306502185418256345—
CDM32-155034914306502185418256345—
CDM32-16-25035215006502255418256347—
CDM32-165035215006502255418256347—
CDM42-1-1508335034583519713273—
CDM42-1509035034883821515180—
CDM42-2-2501135213901051260168103—
CDM42-2501215213901051260168111—
CDM42-3-2501926315001271330205182—
CDM42-3501926315001271330205182—
CDM42-4-2502117115001351330205201—
CDM42-4502117115001351330205201—
CDM42-5-2502237915451476330205212—
CDM42-5502237915451476330205212—
CDM42-6-2502798715761587375230269—
CDM42-6502798715761587375230269—
CDM42-7-2503439516501741418256333—
CDM42-7503439516501741418256333—
CDM42-8-25034710316501821418256337—
CDM42-85034710316501821418256337—
CDM42-9-25035011116501901418256340—
CDM42-95037011116501901418256360—
CDM42-10-25037411916501981418256364—
CDM42-105037411916501981418256364—
CDM42-11-25047712717002111465280467—
CDM42-115047712717002111465280467—
CDM42-12-25048113517002191465280471—
CDM42-125048113517002191465280471—
CDM42-13-25048414317002271465280474—
CDM65-1-15010135334884121515170—
CDM65-15012144439097426016890—
CDM65-2-2501335273901057260168102—
CDM65-2-1502015575001197330205170—
CDM65-2502015575001197330205170—
CDM65-3-2502196405001280330205188—
CDM65-3-1502196405001280330205188—
CDM65-3502276405451325330205196—
CDM65-4-2502317235761439375230200—
CDM65-4-1502847235761439375230253—
CDM65-4502847236501513418256253—
CDM65-5-2503498066501596418256318—
CDM65-5-1503498066501596418256318—
CDM65-5503498066501596418256318—
CDM65-6-2503538896501679418256322—
CDM65-6-1503738896501679418256342—
CDM65-6503738896501679418256342—
CDM65-7-2503779726501762418256346—
CDM65-7-1503779726501762418256346—
CDM65-7504779727001812465280446—
CDM65-8-25048110557001895465280450—
CDM65-8-15048110557001895465280450—
CDM85-1-150110453390983260168101—
CDM85-150118453390983260168109—
CDM85-2-2501905755001215330205181—
CDM85-2502055755001215330205196—
CDM85-3-2502176675451352330205208—
CDM85-3502706675761383375230261—
CDM85-4-2503357596501549418256326—
CDM85-4503357596501549418256326—
CDM85-5-2503598516501641418256350—
CDM85-5503598516501641418256350—
CDM85-6-2504639437001783465280454—
CDM85-6504639437001783465280454—
CDM120-1502266605001340330205213—
CDM120-2-2502508205001500330205237—
CDM120-2-1502638205451545330205250—
CDM120-2503108205761576375230297—
CDM120-3-2503759806501810418256362—
CDM120-3-1503759806501810418256362—
CDM120-3503759806501810418256362—
CDM120-4-25040511406501970418256392—
CDM120-4-15040511406501970418256392—
CDM120-45050111407002020465280488—
CDM120-5-25050913007002180465280496—
CDM120-5-15050913007002180465280496—
CDM120-55063213307702280506305619—
CDM120-6-25064114907702440506305628—
CDM120-6-15064114907702440506305628—
CDM120-65075714908352505560335744—
CDM120-7-25076616508352665560335753—
CDM120-7-15076616508352665560335753—
CDM120-75076616508352665560335753—
CDM150-1-1502276605001340330205214—
CDM150-1502406605001340330205227—
CDM150-2-2502638205451545330205250—
CDM150-2-1503118205761576375230295—
CDM150-2503648206501650418256351—
CDM150-3-2503749806501810418256361—
CDM150-3-1503959806501810418256382—
CDM150-3503959806501810418256382—
CDM150-4-25050211407002020465280489—
CDM150-4-15050211407002020465280489—
CDM150-45062511707702120506305612—
CDM150-5-25063613307702280506305623—
CDM150-5-15075213308352345560335739—
CDM150-55075213308352345560335739—
CDM150-6-25076214908352505560335749—
CDM150-6-15076214908352505560335749—
CDM150-65076214908352505560335749—
CDM200-1-B503446805451425330205314—
CDM200-1-A503806805761456375230350—
CDM200-1504376806501530418256407—
CDM200-2-2B504818746501724418256451—
CDM200-2-2A505368747001774465280506—
CDM200-2-A506319047701874506305601—
CDM200-2506319047701874506305601—
CDM200-3-2B5078410988352133560335754—
CDM200-3-A-B5078410988352133560335754—
CDM200-3-2A5078410988352133560335754—
CDM200-3-B5078410988352133560335754—
CDM200-3-A5078410988352133560335754—
CDM200-35085310988852183560335823—
CDM200-4-2B5086612928852377560335836—
CDM200-4-2A5012051292104025326554001175—
CDM200-4-A5012051292104025326554001175—
CDM200-45012051292104025326554001175—
CDM1-2602318722048214010319457
CDM1-3602320722050214010319477
CDM1-4602422722052214010320497
CDM1-5602524722054214010321517
CDM1-6602526722056214010321537
CDM1-7602929725062214810825597
CDM1-8602931725064214810825617
CDM1-9603033725066214810826637
CDM1-10603235725068214810828657
CDM1-11603337725070214810829677
CDM1-12603339725072214810829697
CDM1-13603341725074214810829717
CDM1-15603946729383517212035810
CDM1-17604050729387517212036850
CDM1-19604354729391517212039890
CDM1-21604358729395517212039930
CDM1-23604462729399517212040970
CDM1-2560456672931035172120411010
CDM1-2660466872931055172120421030
CDM1-2760577173451137197132531112
CDM1-2960587573451177197132541152
CDM3-2602418722048214010320457
CDM3-3602520722050214010321477
CDM3-4602823725056214810824537
CDM3-5603125725058214810827557
CDM3-6603127725060214810827577
CDM3-7603229725062214810828597
CDM3-8603732729369517212033670
CDM3-9603734729371517212033690
CDM3-10604036729373517212036710
CDM3-11604038729375517212036730
CDM3-12604140729377517212037750
CDM3-13604142729379517212037770
CDM3-14604244729381517212038790
CDM3-15605247734589719713248872
CDM3-16605349734591719713249892
CDM3-18605453734595719713250932
CDM3-19605455734597719713250952
CDM3-206061577348100021515157975
CDM3-216061597348102021515157995
CDM3-2260626173481040215151581015
CDM3-2360626373481060215151581035
CDM5-2602520122049614010320471
CDM5-3602823825056314810823538
CDM5-4603126525059014810826565
CDM5-5603730229367017212032645
CDM5-6603732929369717212032672
CDM5-7604035629372417212035699
CDM5-8604038329375117212035726
CDM5-9604141029377817212036753
CDM5-10605144734586719713246842
CDM5-11605247434589419713247869
CDM5-12605250134592119713247896
CDM5-13605952834895121515154926
CDM5-14606055534897821515155953
CDM5-156060582348100521515155980
CDM5-1660616093481032215151561007
CDM5-1760817113901176260168761151
CDM5-1860817383901203260168761178
CDM5-2060827923901257260168771232
CDM5-2160838193901284260168781259
CDM5-2260838463901311260168781286
CDM5-2360848733901338260168791313
CDM10-1603126725059714810829—
CDM10-2603927729365017212037—
CDM10-3604230729368017212040—
CDM10-4605334734577219713251—
CDM10-5606237734880521515160—
CDM10-6606340734883521515161—
CDM10-7608451539098526016882—
CDM10-86085545390101526016883—
CDM10-96089575390104526016887—
CDM10-106090605390107526016888—
CDM10-116091635390110526016889—
CDM10-126092665390113526016890—
CDM10-13601627255001305330205160—
CDM10-14601637555001335330205161—
CDM10-15601647855001365330205162—
CDM15-1604730729369017212040—
CDM15-2606031734575219713253—
CDM15-3606836234880021515161—
CDM15-4609048539096526016883—
CDM15-56094530390101026016887—
CDM15-6601756055001195330205168—
CDM15-7601776505001240330205170—
CDM15-8601786955001285330205171—
CDM15-9601807405001330330205173—
CDM15-10601817855001375330205174—
CDM15-11601828305001420330205175—
CDM15-12601928755451510330205185—
CDM20-1604730729369017212040—
CDM20-2606531734875521515158—
CDM20-3608744039092026016880—
CDM20-4609148539096526016884—
CDM20-5601585605001150330205151—
CDM20-6601606055001195330205153—
CDM20-7601766505001240330205169—
CDM20-8601776955001285330205170—
CDM20-9601877405451375330205180—
CDM20-10601887855451420330205181—
CDM32-1-1607832934577919713266—
CDM32-1608432934878221515172—
CDM32-2-2609949039098526016895—
CDM32-260107490390985260168103—
CDM32-3-2601105603901055260168106—
CDM32-3601785905001195330205174—
CDM32-4-2601816605001265330205177—
CDM32-4601966605001265330205192—
CDM32-5-2601997305001335330205194—
CDM32-5602077305451380330205202—
CDM32-6-2602098005451450330205205—
CDM32-6602098005451450330205205—
CDM32-7-2602658705761551375230261—
CDM32-7602658705761551375230261—
CDM32-8-2602689405761621375230264—
CDM32-8603299406501695418256325—
CDM32-9-26033210106501765418256328—
CDM32-96033210106501765418256328—
CDM32-10-26033510806501835418256331—
CDM42-1-16010944139097126016899—
CDM42-160118441390971260168108—
CDM42-2-2601895535001193330205179—
CDM42-2602045535001193330205194—
CDM42-3-2602156335451318330205205—
CDM42-3602156335451318330205205—
CDM42-4-2602727135761429375230262—
CDM42-4603337136501503418256323—
CDM42-5-2603377936501583418256326—
CDM42-5603377936501583418256326—
CDM42-6-2603608736501663418256350—
CDM42-6603608736501663418256350—
CDM42-7-2604639537001793465280453—
CDM42-7604639537001793465280453—
CDM65-1-16012944139097126016898—
CDM65-1601974765001116330205166—
CDM65-2-2602165595001199330205185—
CDM65-2602775595761275375230246—
CDM65-3-2602806415761357375230249—
CDM65-3603416416501431418256310—
CDM65-4-2603657246501514418256334—
CDM65-4604657247001564465280434—
CDM65-5-2604698067001646465280438—
CDM85-1-1601863765001016330205177—
CDM85-1602013765001016330205192—
CDM85-2-2602135785451263330205204—
CDM85-2-1602665785761294375230257—
CDM85-2603275786501368418256318—
CDM85-3-2603516706501460418256342—
CDM85-3-1603516706501460418256342—
CDM85-3604516707001510465280442—
CDM85-4-2604557627001602465280446—
CDM120-1-1602356605001340330205222—
CDM120-1602506605451385330205237—
CDM120-2-2603508206501650418256337—
CDM120-2-1603508206501650418256337—
CDM120-2603808206501650418256367—
CDM120-3-2604459807001860465280432—
CDM120-3-1604459807001860465280432—
CDM120-36054510107701960506305532—
CDM120-4-26067511708352185560335662—
CDM120-4-16067511708352185560335662—
CDM120-46067511708352185560335662—
CDM120-5-26069013308352345560335677—
CDM150-1-1602356605001340330205222—
CDM150-1602806605761416375230267—
CDM150-2-2603608206501650418256347—
CDM150-2-1603808206501650418256367—
CDM150-2604358207001700465280422—
CDM150-3-26054510107701960506305532—
CDM150-3-16066510108352025560335652—
CDM150-36066510108352025560335652—
CDM150-4-26068011708352185560335667—
CDM200-1-B603486806501530418256323—
CDM200-1-A603956806501530418256370—
CDM200-1604466807001580465280421—
CDM200-2-2B604989767701946506305473—
CDM200-2-2A605919768352011560335566—
CDM200-2-B607109768352011560335685—
CDM200-2-A607109768852061560335685—
CDM200-2607109768852061560335685—
CDM200-3-2B60855117010402410655400830—
CDM200-3-A-B60855117010402410655400830—
CDM200-3-2A60855117010402410655400830—

Spare parts for CDM / CDMF

Parts list of the series with the material of each part. To order, send the model code and the part you need.

Parts list (PDF) Request spare parts quote
No.PartMaterialStandardApplies to
1Motor—— All sizes
2BracketCast ironASTM25B CDM32, CDM42, CDM65, CDM85, CDM120, CDM150 +1
2Pump head (CDM)Cast ironASTM25B All sizes
2Pump head (CDMF)Cast ironASTM25B CDM1, CDM3, CDM5, CDM10, CDM15, CDM20
3Lining (CDMF)Stainless steelAISI304 CDM1, CDM3, CDM5, CDM10, CDM15, CDM20
3Pump head (CDMF)Stainless steelAISI304 CDM32, CDM42, CDM65, CDM85, CDM120, CDM150 +1
4Mechanical sealTungsten carbide / Carbon— All sizes
5DischargeStainless steelAISI304 CDM120, CDM150, CDM200
5Top diffuserStainless steelAISI304 CDM1, CDM3, CDM5, CDM10, CDM15, CDM20 +4
6DiffuserStainless steelAISI304 All sizes
7Support diffuserStainless steelAISI304 All sizes
8InducerStainless steelAISI304 All sizes
9Inlet & outlet chamberStainless steelAISI304 CDM32, CDM42, CDM65, CDM85
9Inlet & outlet chamber (CDM)Cast ironASTM25B CDM1, CDM3, CDM5, CDM10, CDM15, CDM20
9Inlet & outlet chamber (CDM)Stainless steelASTM25B (as printed) CDM120, CDM150, CDM200
9Inlet & outlet chamber (CDMF)Stainless steelAISI304 CDM1, CDM3, CDM5, CDM10, CDM15, CDM20 +3
10Base plate (CDMF)Cast aluminum— CDM1, CDM3, CDM5, CDM10, CDM15, CDM20
10Base plate (CDMF)Cast ironASTM25B CDM32, CDM42, CDM65, CDM85
10Base plate (not on CDM200)Cast ironASTM25B CDM120, CDM150, CDM200
11BearingTungsten carbide— CDM1, CDM3, CDM5, CDM10, CDM15, CDM20 +3
11Bottom bearing (CDM)Tungsten carbide— CDM32, CDM42, CDM65, CDM85
11Bottom bearing (CDMF)Tungsten carbide— CDM32, CDM42, CDM65, CDM85
12ImpellerStainless steelAISI304 All sizes
13ShaftStainless steelAISI304 All sizes
14Impeller sleeveStainless steelAISI304 CDM1, CDM3, CDM5, CDM10, CDM15, CDM20
14Intermediate bearing (CDM)Tungsten carbide— CDM32, CDM42, CDM65, CDM85
14Intermediate bearing (CDMF)Tungsten carbide— CDM32, CDM42, CDM65, CDM85
15CylinderStainless steelAISI304 All sizes
16CouplingCarbon steel / Powder metallurgy— All sizes

Technical data

Liquid temperature

  • -15 to +70 °C (normal type); hot-water type -15 to +120 °C

Ambient conditions

  • Up to +40 °C and 1000 m altitude without motor derating

Motor

  • Totally enclosed, fan-cooled 2-pole standard motor, IP55, insulation class F

Supply voltage

  • 1 x 200-230 / 240 V
  • 3 x 200-220 / 346-380 V
  • 3 x 220-240 / 380-415 V
  • 3 x 200-230 / 346-400 V
  • 3 x 200-255 / 380-440 V
  • 3 x 220-277 / 380-485 V

Typical applications

  • Boosting: water works, zone supply, mains and high-rise buildings
  • Pressuring: water circulation, washing, high-pressure flushing, fire fighting
  • HVAC: air conditioning
  • Water treatment: ultrafiltration, R/O, distillation, separators, swimming pools

Pumped liquid

  • Thin, clean, non-flammable, non-explosive, solid-free and fibre-free liquid, physically and chemically water-like. CDM suits non-corrosive liquid; CDMF suits lightly corrosive liquid.

Data basis

  • 50 Hz, 2900 rpm (2950 rpm for CDM120, 150, 200), 20 °C air-free water, kinematic viscosity 1 mm²/s; curve tolerance ISO 9906:2012 Grade 3B
  • 60 Hz, 3500 rpm (3540 rpm for CDM120, 150, 200), 20 °C air-free water, kinematic viscosity 1 mm²/s; curve tolerance ISO 9906:2012 Grade 3B

Performance values are taken from the published CNP catalogue data. Our engineers confirm the final selection for your liquid, temperature, supply and site before quoting.

Other vertical multistage pumps

CDL / CDLF

Vertical multistage centrifugal pump

  • Flow 0.4–240 m³/h
  • Head up to 305 m
  • 0.37–110 kW
View series

Need a pump or a spare part?

Send us the flow and head you need, or the model code and nameplate details of the pump you are repairing. Our team replies with a quotation.

Request a Quotation +92 345 9547419
