Vertical multistage centrifugal pump

CDLK / CDLKF (immersion)

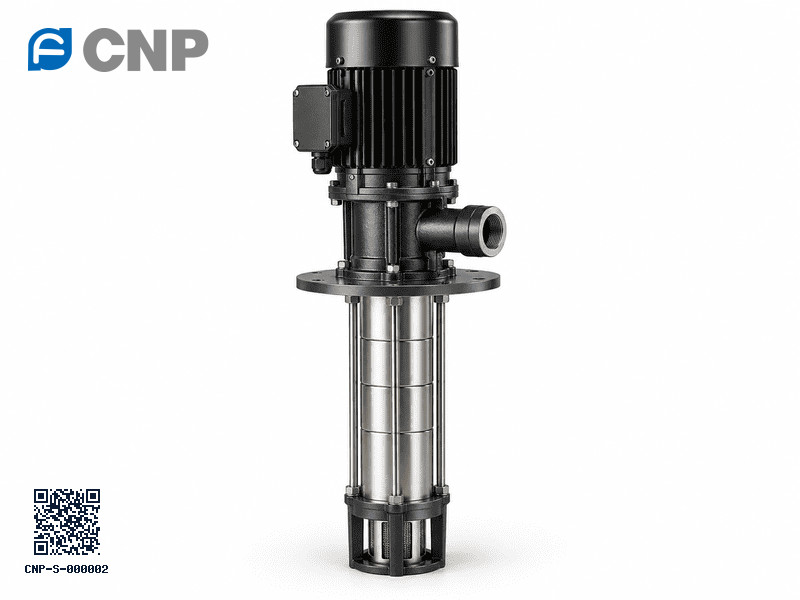

Immersion-type multistage pumps for machine tools and tanks, CDLK / CDLKF

Vertical multistage pumps built to be mounted on a tank or vessel with the hydraulic part immersed. A cavity body can be added to change the pump length to match the tank depth. Typical for cooling, lubricating and cleaning circuits on machine tools.

  • Pump length adjustable with a cavity body
  • Cooling liquid, cutting and lubricating liquid, condensate
  • Optional intelligent protector (dry running, phase loss, overload)
  • Threaded connection on small sizes, DIN flange on larger sizes
View 277 models Find a pump
CDLK / CDLKF (immersion)CNP-S-000002
Flow
0.4–65 m³/h
Head
up to 305 m
Power
0.37–45 kW
Mains
50 Hz / 60 Hz
Models
277
Liquid temp.
-15 to +70 °C (normal type); warm-water type -15 to +105 °C

Sizes

SizeDescriptionRated flowFlow rangeMax pressureMotorConnectionModels
CDLK1 / CDLKF1 Immersion-type multistage centrifugal pump 1 m³/h 0.4–2 m³/h 21 bar 0.37–2.2 kW Thread G1 1/4" 40
CDLK2 / CDLKF2 Immersion-type multistage centrifugal pump 2 m³/h 1–3.5 m³/h 23 bar 0.37–3 kW Thread G1 1/4" 24
CDLK3 / CDLKF3 Immersion-type multistage centrifugal pump 3 m³/h 1.2–4 m³/h 22 bar 0.37–3 kW Thread G1 1/4" 41
CDLK4 / CDLKF4 Immersion-type multistage centrifugal pump 4 m³/h 1.5–7 m³/h 21 bar 0.37–4 kW Thread G1 1/4" 24
CDLK8 / CDLKF8 Immersion-type multistage centrifugal pump 8 m³/h 5–12 m³/h 21 bar 0.75–7.5 kW Thread G2" 21
CDLK15 / CDLKF15 Immersion-type multistage centrifugal pump 15 m³/h 8–22 m³/h 22 bar 2.2–15 kW Thread G2" 22
CDLK20 / CDLKF20 Immersion-type multistage centrifugal pump 20 m³/h 10–28 m³/h 23 bar 2.2–18.5 kW Thread G2" 19
CDLK32 / CDLKF32 Immersion-type multistage centrifugal pump 32 m³/h 16–40 m³/h 26 bar 1.5–30 kW DIN flange DN65 47
CDLK42 / CDLKF42 Immersion-type multistage centrifugal pump 42 m³/h 25–55 m³/h 30 bar 3–45 kW DIN flange DN80 39

Models

Filter by duty point, mains frequency or size. Click a model for its performance curve and data.

Model table (PDF)
ModelSizeStagesHzMotor kWFlow m³/hHead mrpmkg
CDLK1-20/2CDLKF1-20/2 CDLK1250 0.37 0.4–2 9–13 290015 CurvePDF
CDLK1-30/3CDLKF1-30/3 CDLK1350 0.37 0.4–2 12–19 290015 CurvePDF
CDLK1-40/4CDLKF1-40/4 CDLK1450 0.37 0.4–2 16–24 290016 CurvePDF
CDLK1-50/5CDLKF1-50/5 CDLK1550 0.37 0.4–2 20–30 290016 CurvePDF
CDLK1-60/6CDLKF1-60/6 CDLK1650 0.37 0.4–2 23–36 290017 CurvePDF
CDLK1-70/7CDLKF1-70/7 CDLK1750 0.37 0.4–2 27–42 290017 CurvePDF
CDLK1-80/8CDLKF1-80/8 CDLK1850 0.55 0.4–2 30–48 290018 CurvePDF
CDLK1-90/9CDLKF1-90/9 CDLK1950 0.55 0.4–2 33–54 290018 CurvePDF
CDLK1-100/10CDLKF1-100/10 CDLK11050 0.55 0.4–2 36–60 290019 CurvePDF
CDLK1-110/11CDLKF1-110/11 CDLK11150 0.55 0.4–2 40–66 290019 CurvePDF
CDLK1-120/12CDLKF1-120/12 CDLK11250 0.75 0.4–2 44–72 290020 CurvePDF
CDLK1-130/13CDLKF1-130/13 CDLK11350 0.75 0.4–2 47–78 290020 CurvePDF
CDLK1-150/15CDLKF1-150/15 CDLK11550 0.75 0.4–2 55–89 290021 CurvePDF
CDLK1-170/17CDLKF1-170/17 CDLK11750 1.1 0.4–2 62–101 290024 CurvePDF
CDLK1-190/19CDLKF1-190/19 CDLK11950 1.1 0.4–2 69–113 290025 CurvePDF
CDLK1-210/21CDLKF1-210/21 CDLK12150 1.1 0.4–2 75–124 290025 CurvePDF
CDLK1-230/23CDLKF1-230/23 CDLK12350 1.1 0.4–2 82–137 290026 CurvePDF
CDLK1-250/25CDLKF1-250/25 CDLK12550 1.5 0.4–2 89–149 290029 CurvePDF
CDLK1-270/27CDLKF1-270/27 CDLK12750 1.5 0.4–2 95–161 290030 CurvePDF
CDLK1-300/30CDLKF1-300/30 CDLK13050 1.5 0.4–2 106–178 290031 CurvePDF
CDLK1-330/33CDLKF1-330/33 CDLK13350 2.2 0.4–2 118–196 290034 CurvePDF
CDLK1-360/36CDLKF1-360/36 CDLK13650 2.2 0.4–2 130–214 290035 CurvePDF
CDLK2-20/2CDLKF2-20/2 CDLK2250 0.37 1–3.5 8–18 290015 CurvePDF
CDLK2-30/3CDLKF2-30/3 CDLK2350 0.37 1–3.5 12–27 290015 CurvePDF
CDLK2-40/4CDLKF2-40/4 CDLK2450 0.55 1–3.5 16–36 290016 CurvePDF
CDLK2-50/5CDLKF2-50/5 CDLK2550 0.55 1–3.5 20–45 290017 CurvePDF
CDLK2-60/6CDLKF2-60/6 CDLK2650 0.75 1–3.5 24–53 290019 CurvePDF
CDLK2-70/7CDLKF2-70/7 CDLK2750 0.75 1–3.5 28–63 290019 CurvePDF
CDLK2-90/9CDLKF2-90/9 CDLK2950 1.1 1–3.5 37–80 290022 CurvePDF
CDLK2-110/11CDLKF2-110/11 CDLK21150 1.1 1–3.5 44–98 290024 CurvePDF
CDLK2-130/13CDLKF2-130/13 CDLK21350 1.5 1–3.5 52–116 290026 CurvePDF
CDLK2-150/15CDLKF2-150/15 CDLK21550 1.5 1–3.5 60–134 290028 CurvePDF
CDLK2-180/18CDLKF2-180/18 CDLK21850 2.2 1–3.5 76–161 290032 CurvePDF
CDLK2-220/22CDLKF2-220/22 CDLK22250 2.2 1–3.5 90–197 290036 CurvePDF
CDLK2-260/26CDLKF2-260/26 CDLK22650 3 1–3.5 110–232 290041 CurvePDF
CDLK3-20/2CDLKF3-20/2 CDLK3250 0.37 1.2–4 6–12.5 290015 CurvePDF
CDLK3-30/3CDLKF3-30/3 CDLK3350 0.37 1.2–4 9–19 290015 CurvePDF
CDLK3-40/4CDLKF3-40/4 CDLK3450 0.37 1.2–4 12–25 290016 CurvePDF
CDLK3-50/5CDLKF3-50/5 CDLK3550 0.37 1.2–4 16–31 290016 CurvePDF
CDLK3-60/6CDLKF3-60/6 CDLK3650 0.55 1.2–4 19–36 290018 CurvePDF
CDLK3-70/7CDLKF3-70/7 CDLK3750 0.55 1.2–4 22–43 290018 CurvePDF
CDLK3-80/8CDLKF3-80/8 CDLK3850 0.75 1.2–4 25–49 290020 CurvePDF
CDLK3-90/9CDLKF3-90/9 CDLK3950 0.75 1.2–4 28–55 290020 CurvePDF
CDLK3-100/10CDLKF3-100/10 CDLK31050 0.75 1.2–4 31–61 290021 CurvePDF
CDLK3-110/11CDLKF3-110/11 CDLK31150 1.1 1.2–4 34–67 290023 CurvePDF
CDLK3-120/12CDLKF3-120/12 CDLK31250 1.1 1.2–4 37–73 290023 CurvePDF
CDLK3-130/13CDLKF3-130/13 CDLK31350 1.1 1.2–4 40–78 290024 CurvePDF
CDLK3-150/15CDLKF3-150/15 CDLK31550 1.1 1.2–4 46–90 290025 CurvePDF
CDLK3-170/17CDLKF3-170/17 CDLK31750 1.5 1.2–4 52–103 290027 CurvePDF
CDLK3-190/19CDLKF3-190/19 CDLK31950 1.5 1.2–4 58–115 290029 CurvePDF
CDLK3-210/21CDLKF3-210/21 CDLK32150 2.2 1.2–4 64–128 290032 CurvePDF
CDLK3-230/23CDLKF3-230/23 CDLK32350 2.2 1.2–4 70–140 290034 CurvePDF
CDLK3-250/25CDLKF3-250/25 CDLK32550 2.2 1.2–4 76–151 290036 CurvePDF
CDLK3-270/27CDLKF3-270/27 CDLK32750 2.2 1.2–4 82–164 290038 CurvePDF
CDLK3-290/29CDLKF3-290/29 CDLK32950 2.2 1.2–4 88–175 290040 CurvePDF
CDLK3-310/31CDLKF3-310/31 CDLK33150 3 1.2–4 94–187 290044 CurvePDF
CDLK3-330/33CDLKF3-330/33 CDLK33350 3 1.2–4 100–199 290046 CurvePDF
CDLK3-360/36CDLKF3-360/36 CDLK33650 3 1.2–4 109–218 290049 CurvePDF
CDLK4-20/2CDLKF4-20/2 CDLK4250 0.37 1.5–7 8–19 290016 CurvePDF
CDLK4-30/3CDLKF4-30/3 CDLK4350 0.55 1.5–7 13–28 290018 CurvePDF
CDLK4-40/4CDLKF4-40/4 CDLK4450 0.75 1.5–7 19–38 290020 CurvePDF
CDLK4-50/5CDLKF4-50/5 CDLK4550 1.1 1.5–7 23–47 290022 CurvePDF
CDLK4-60/6CDLKF4-60/6 CDLK4650 1.1 1.5–7 28–56 290023 CurvePDF
CDLK4-70/7CDLKF4-70/7 CDLK4750 1.5 1.5–7 33–66 290025 CurvePDF
CDLK4-80/8CDLKF4-80/8 CDLK4850 1.5 1.5–7 38–74 290026 CurvePDF
CDLK4-100/10CDLKF4-100/10 CDLK41050 2.2 1.5–7 48–96 290032 CurvePDF
CDLK4-120/12CDLKF4-120/12 CDLK41250 2.2 1.5–7 58–114 290034 CurvePDF
CDLK4-140/14CDLKF4-140/14 CDLK41450 3 1.5–7 68–136 290038 CurvePDF
CDLK4-160/16CDLKF4-160/16 CDLK41650 3 1.5–7 78–152 290040 CurvePDF
CDLK4-190/19CDLKF4-190/19 CDLK41950 4 1.5–7 93–183 290046 CurvePDF
CDLK4-220/22CDLKF4-220/22 CDLK42250 4 1.5–7 108–211 290049 CurvePDF
CDLK8-20/2CDLKF8-20/2 CDLK8250 0.75 5–12 13–20 290025 CurvePDF
CDLK8-30/3CDLKF8-30/3 CDLK8350 1.1 5–12 19–30 290027 CurvePDF
CDLK8-40/4CDLKF8-40/4 CDLK8450 1.5 5–12 26–41 290031 CurvePDF
CDLK8-50/5CDLKF8-50/5 CDLK8550 2.2 5–12 32–52 290035 CurvePDF
CDLK8-60/6CDLKF8-60/6 CDLK8650 2.2 5–12 39–62 290036 CurvePDF
CDLK8-80/8CDLKF8-80/8 CDLK8850 3 5–12 52–83 290042 CurvePDF
CDLK8-100/10CDLKF8-100/10 CDLK81050 4 5–12 65–104 290050 CurvePDF
CDLK8-120/12CDLKF8-120/12 CDLK81250 4 5–12 78–124 290054 CurvePDF
CDLK8-140/14CDLKF8-140/14 CDLK81450 5.5 5–12 92–145 290064 CurvePDF
CDLK8-160/16CDLKF8-160/16 CDLK81650 5.5 5–12 106–166 290066 CurvePDF
CDLK8-180/18CDLKF8-180/18 CDLK81850 7.5 5–12 120–187 290079 CurvePDF
CDLK8-200/20CDLKF8-200/20 CDLK82050 7.5 5–12 135–208 290081 CurvePDF
CDLK15-20/2CDLKF15-20/2 CDLK15250 2.2 8–22 16–25 290037 CurvePDF
CDLK15-30/3CDLKF15-30/3 CDLK15350 3 8–22 25–39 290047 CurvePDF
CDLK15-40/4CDLKF15-40/4 CDLK15450 4 8–22 33–52 290052 CurvePDF
CDLK15-50/5CDLKF15-50/5 CDLK15550 4 8–22 42–65 290067 CurvePDF
CDLK15-60/6CDLKF15-60/6 CDLK15650 5.5 8–22 51–78 290072 CurvePDF
CDLK15-70/7CDLKF15-70/7 CDLK15750 5.5 8–22 60–92 290077 CurvePDF
CDLK15-80/8CDLKF15-80/8 CDLK15850 7.5 8–22 69–106 290078 CurvePDF
CDLK15-90/9CDLKF15-90/9 CDLK15950 7.5 8–22 79–120 290079 CurvePDF
CDLK15-100/10CDLKF15-100/10 CDLK151050 11 8–22 88–133 2900135 CurvePDF
CDLK15-120/12CDLKF15-120/12 CDLK151250 11 8–22 106–160 2900140 CurvePDF
CDLK15-140/14CDLKF15-140/14 CDLK151450 11 8–22 124–187 2900145 CurvePDF
CDLK15-170/17CDLKF15-170/17 CDLK151750 15 8–22 151–227 2900164 CurvePDF
CDLK20-20/2CDLKF20-20/2 CDLK20250 2.2 10–28 15–27 290035 CurvePDF
CDLK20-30/3CDLKF20-30/3 CDLK20350 4 10–28 24–40 290050 CurvePDF
CDLK20-40/4CDLKF20-40/4 CDLK20450 5.5 10–28 33–54 290065 CurvePDF
CDLK20-50/5CDLKF20-50/5 CDLK20550 5.5 10–28 40–67 290067 CurvePDF
CDLK20-60/6CDLKF20-60/6 CDLK20650 7.5 10–28 49–81 290074 CurvePDF
CDLK20-70/7CDLKF20-70/7 CDLK20750 7.5 10–28 58–95 290076 CurvePDF
CDLK20-80/8CDLKF20-80/8 CDLK20850 11 10–28 67–109 2900130 CurvePDF
CDLK20-100/10CDLKF20-100/10 CDLK201050 11 10–28 85–136 2900135 CurvePDF
CDLK20-120/12CDLKF20-120/12 CDLK201250 15 10–28 102–164 2900150 CurvePDF
CDLK20-140/14CDLKF20-140/14 CDLK201450 15 10–28 119–192 2900155 CurvePDF
CDLK20-170/17CDLKF20-170/17 CDLK201750 18.5 10–28 145–234 2900180 CurvePDF
CDLK32-10/1-1CDLKF32-10/1-1 CDLK32150 1.5 16–40 4–14 290045 CurvePDF
CDLK32-10/1CDLKF32-10/1 CDLK32150 2.2 16–40 8–18 290047 CurvePDF
CDLK32-20/2-2CDLKF32-20/2-2 CDLK32250 3 16–40 11–29 290054 CurvePDF
CDLK32-20/2CDLKF32-20/2 CDLK32250 4 16–40 18–36 290060 CurvePDF
CDLK32-30/3-2CDLKF32-30/3-2 CDLK32350 5.5 16–40 21–47 290070 CurvePDF
CDLK32-30/3CDLKF32-30/3 CDLK32350 5.5 16–40 27–54 290070 CurvePDF
CDLK32-40/4-2CDLKF32-40/4-2 CDLK32450 7.5 16–40 30–65 290078 CurvePDF
CDLK32-40/4CDLKF32-40/4 CDLK32450 7.5 16–40 37–72 290078 CurvePDF
CDLK32-50/5-2CDLKF32-50/5-2 CDLK32550 11 16–40 41–83 2900150 CurvePDF
CDLK32-50/5CDLKF32-50/5 CDLK32550 11 16–40 47–90 2900150 CurvePDF
CDLK32-60/6-2CDLKF32-60/6-2 CDLK32650 11 16–40 51–101 2900152 CurvePDF
CDLK32-60/6CDLKF32-60/6 CDLK32650 11 16–40 57–108 2900152 CurvePDF
CDLK32-70/7-2CDLKF32-70/7-2 CDLK32750 15 16–40 60–119 2900165 CurvePDF
CDLK32-70/7CDLKF32-70/7 CDLK32750 15 16–40 67–126 2900165 CurvePDF
CDLK32-80/8-2CDLKF32-80/8-2 CDLK32850 15 16–40 71–136 2900167 CurvePDF
CDLK32-80/8CDLKF32-80/8 CDLK32850 15 16–40 77–144 2900167 CurvePDF
CDLK32-90/9-2CDLKF32-90/9-2 CDLK32950 18.5 16–40 82–154 2900185 CurvePDF
CDLK32-90/9CDLKF32-90/9 CDLK32950 18.5 16–40 88–162 2900185 CurvePDF
CDLK32-100/10-2CDLKF32-100/10-2 CDLK321050 18.5 16–40 91–175 2900187 CurvePDF
CDLK32-100/10CDLKF32-100/10 CDLK321050 18.5 16–40 98–182 2900187 CurvePDF
CDLK32-110/11-2CDLKF32-110/11-2 CDLK321150 22 16–40 102–193 2900227 CurvePDF
CDLK32-110/11CDLKF32-110/11 CDLK321150 22 16–40 109–200 2900227 CurvePDF
CDLK32-120/12-2CDLKF32-120/12-2 CDLK321250 22 16–40 113–211 2900231 CurvePDF
CDLK32-120/12CDLKF32-120/12 CDLK321250 22 16–40 120–218 2900231 CurvePDF
CDLK32-130/13-2CDLKF32-130/13-2 CDLK321350 30 16–40 124–230 2900293 CurvePDF
CDLK32-130/13CDLKF32-130/13 CDLK321350 30 16–40 131–237 2900293 CurvePDF
CDLK32-140/14-2CDLKF32-140/14-2 CDLK321450 30 16–40 135–247 2900297 CurvePDF
CDLK32-140/14CDLKF32-140/14 CDLK321450 30 16–40 142–255 2900297 CurvePDF
CDLK42-10/1-1CDLKF42-10/1-1 CDLK42150 3 25–55 11–20 290055 CurvePDF
CDLK42-10/1CDLKF42-10/1 CDLK42150 4 25–55 16–24 290061 CurvePDF
CDLK42-20/2-2CDLKF42-20/2-2 CDLK42250 5.5 25–55 23–40 290074 CurvePDF
CDLK42-20/2CDLKF42-20/2 CDLK42250 7.5 25–55 31–48 290080 CurvePDF
CDLK42-30/3-2CDLKF42-30/3-2 CDLK42350 11 25–55 38–63 2900150 CurvePDF
CDLK42-30/3CDLKF42-30/3 CDLK42350 11 25–55 47–71 2900150 CurvePDF
CDLK42-40/4-2CDLKF42-40/4-2 CDLK42450 15 25–55 54–87 2900163 CurvePDF
CDLK42-40/4CDLKF42-40/4 CDLK42450 15 25–55 62–95 2900163 CurvePDF
CDLK42-50/5-2CDLKF42-50/5-2 CDLK42550 18.5 25–55 69–111 2900185 CurvePDF
CDLK42-50/5CDLKF42-50/5 CDLK42550 18.5 25–55 78–119 2900185 CurvePDF
CDLK42-60/6-2CDLKF42-60/6-2 CDLK42650 22 25–55 85–135 2900226 CurvePDF
CDLK42-60/6CDLKF42-60/6 CDLK42650 22 25–55 93–143 2900226 CurvePDF
CDLK42-70/7-2CDLKF42-70/7-2 CDLK42750 30 25–55 100–158 2900287 CurvePDF
CDLK42-70/7CDLKF42-70/7 CDLK42750 30 25–55 109–166 2900287 CurvePDF
CDLK42-80/8-2CDLKF42-80/8-2 CDLK42850 30 25–55 116–182 2900291 CurvePDF
CDLK42-80/8CDLKF42-80/8 CDLK42850 30 25–55 124–190 2900291 CurvePDF
CDLK42-90/9-2CDLKF42-90/9-2 CDLK42950 30 25–55 132–205 2900295 CurvePDF
CDLK42-90/9CDLKF42-90/9 CDLK42950 37 25–55 140–214 2900316 CurvePDF
CDLK42-100/10-2CDLKF42-100/10-2 CDLK421050 37 25–55 147–230 2900320 CurvePDF
CDLK42-100/10CDLKF42-100/10 CDLK421050 37 25–55 155–238 2900320 CurvePDF
CDLK42-110/11-2CDLKF42-110/11-2 CDLK421150 45 25–55 165–255 2900388 CurvePDF
CDLK42-110/11CDLKF42-110/11 CDLK421150 45 25–55 173–263 2900388 CurvePDF
CDLK42-120/12-2CDLKF42-120/12-2 CDLK421250 45 25–55 181–280 2900392 CurvePDF
CDLK42-120/12CDLKF42-120/12 CDLK421250 45 25–55 190–289 2900392 CurvePDF
CDLK42-130/13-2CDLKF42-130/13-2 CDLK421350 45 25–55 198–305 2900396 CurvePDF
CDLK1-20/2CDLKF1-20/2 CDLK1260 0.37 0.6–2 13–17.5 350015 CurvePDF
CDLK1-30/3CDLKF1-30/3 CDLK1360 0.37 0.6–2 20–26.5 350015 CurvePDF
CDLK1-40/4CDLKF1-40/4 CDLK1460 0.37 0.6–2 26–35 350015 CurvePDF
CDLK1-50/5CDLKF1-50/5 CDLK1560 0.55 0.6–2 33–43 350016 CurvePDF
CDLK1-60/6CDLKF1-60/6 CDLK1660 0.55 0.6–2 39–52 350016 CurvePDF
CDLK1-70/7CDLKF1-70/7 CDLK1760 0.75 0.6–2 46–60 350019 CurvePDF
CDLK1-80/8CDLKF1-80/8 CDLK1860 0.75 0.6–2 53–68 350019 CurvePDF
CDLK1-90/9CDLKF1-90/9 CDLK1960 0.75 0.6–2 60–76 350020 CurvePDF
CDLK1-100/10CDLKF1-100/10 CDLK11060 1.1 0.6–2 67–85 350022 CurvePDF
CDLK1-110/11CDLKF1-110/11 CDLK11160 1.1 0.6–2 73–95 350022 CurvePDF
CDLK1-120/12CDLKF1-120/12 CDLK11260 1.1 0.6–2 79–103 350024 CurvePDF
CDLK1-130/13CDLKF1-130/13 CDLK11360 1.1 0.6–2 86–112 350024 CurvePDF
CDLK1-150/15CDLKF1-150/15 CDLK11560 1.5 0.6–2 99–127 350029 CurvePDF
CDLK1-170/17CDLKF1-170/17 CDLK11760 1.5 0.6–2 112–144 350029 CurvePDF
CDLK1-190/19CDLKF1-190/19 CDLK11960 2.2 0.6–2 124–160 350033 CurvePDF
CDLK1-210/21CDLKF1-210/21 CDLK12160 2.2 0.6–2 138–177 350033 CurvePDF
CDLK1-230/23CDLKF1-230/23 CDLK12360 2.2 0.6–2 152–193 350033 CurvePDF
CDLK1-250/25CDLKF1-250/25 CDLK12560 3 0.6–2 164–210 350040 CurvePDF
CDLK2-20/2CDLKF2-20/2 CDLK2260 0.55 1–4.5 9–26 350015 CurvePDF
CDLK2-30/3CDLKF2-30/3 CDLK2360 0.75 1–4.5 15–39 350018 CurvePDF
CDLK2-40/4CDLKF2-40/4 CDLK2460 1.1 1–4.5 20–52 350020 CurvePDF
CDLK2-50/5CDLKF2-50/5 CDLK2560 1.1 1–4.5 25–65 350020 CurvePDF
CDLK2-60/6CDLKF2-60/6 CDLK2660 1.1 1–4.5 30–78 350022 CurvePDF
CDLK2-70/7CDLKF2-70/7 CDLK2760 1.5 1–4.5 35–91 350027 CurvePDF
CDLK2-90/9CDLKF2-90/9 CDLK2960 2.2 1–4.5 45–117 350031 CurvePDF
CDLK2-110/11CDLKF2-110/11 CDLK21160 2.2 1–4.5 56–143 350031 CurvePDF
CDLK2-130/13CDLKF2-130/13 CDLK21360 3 1–4.5 66–171 350037 CurvePDF
CDLK2-150/15CDLKF2-150/15 CDLK21560 3 1–4.5 77–195 350037 CurvePDF
CDLK2-180/18CDLKF2-180/18 CDLK21860 4 1–4.5 94–234 350042 CurvePDF
CDLK3-20/2CDLKF3-20/2 CDLK3260 0.37 1.5–5 8–17.5 350015 CurvePDF
CDLK3-30/3CDLKF3-30/3 CDLK3360 0.55 1.5–5 12–26.5 350015 CurvePDF
CDLK3-40/4CDLKF3-40/4 CDLK3460 0.55 1.5–5 17–35 350015 CurvePDF
CDLK3-50/5CDLKF3-50/5 CDLK3560 0.75 1.5–5 23–44 350019 CurvePDF
CDLK3-60/6CDLKF3-60/6 CDLK3660 1.1 1.5–5 27–51 350021 CurvePDF
CDLK3-70/7CDLKF3-70/7 CDLK3760 1.1 1.5–5 31–61 350022 CurvePDF
CDLK3-80/8CDLKF3-80/8 CDLK3860 1.1 1.5–5 35–70 350022 CurvePDF
CDLK3-90/9CDLKF3-90/9 CDLK3960 1.5 1.5–5 40–78 350027 CurvePDF
CDLK3-100/10CDLKF3-100/10 CDLK31060 1.5 1.5–5 44–87 350028 CurvePDF
CDLK3-110/11CDLKF3-110/11 CDLK31160 1.5 1.5–5 48–96 350028 CurvePDF
CDLK3-120/12CDLKF3-120/12 CDLK31260 2.2 1.5–5 52–104 350031 CurvePDF
CDLK3-130/13CDLKF3-130/13 CDLK31360 2.2 1.5–5 57–112 350031 CurvePDF
CDLK3-150/15CDLKF3-150/15 CDLK31560 2.2 1.5–5 65–129 350032 CurvePDF
CDLK3-170/17CDLKF3-170/17 CDLK31760 2.2 1.5–5 74–147 350032 CurvePDF
CDLK3-190/19CDLKF3-190/19 CDLK31960 3 1.5–5 82–165 350037 CurvePDF
CDLK3-210/21CDLKF3-210/21 CDLK32160 3 1.5–5 91–183 350038 CurvePDF
CDLK3-230/23CDLKF3-230/23 CDLK32360 3 1.5–5 98–200 350038 CurvePDF
CDLK3-250/25CDLKF3-250/25 CDLK32560 4 1.5–5 108–217 350044 CurvePDF
CDLK4-20/2CDLKF4-20/2 CDLK4260 0.75 2.5–8 14–26 350015 CurvePDF
CDLK4-30/3CDLKF4-30/3 CDLK4360 1.1 2.5–8 21–39 350018 CurvePDF
CDLK4-40/4CDLKF4-40/4 CDLK4460 1.5 2.5–8 31–52 350023 CurvePDF
CDLK4-50/5CDLKF4-50/5 CDLK4560 2.2 2.5–8 39–65 350027 CurvePDF
CDLK4-60/6CDLKF4-60/6 CDLK4660 2.2 2.5–8 47–78 350027 CurvePDF
CDLK4-70/7CDLKF4-70/7 CDLK4760 3 2.5–8 55–92 350033 CurvePDF
CDLK4-80/8CDLKF4-80/8 CDLK4860 3 2.5–8 63–104 350033 CurvePDF
CDLK4-100/10CDLKF4-100/10 CDLK41060 4 2.5–8 80–130 350038 CurvePDF
CDLK4-120/12CDLKF4-120/12 CDLK41260 4 2.5–8 96–156 350038 CurvePDF
CDLK4-140/14CDLKF4-140/14 CDLK41460 5.5 2.5–8 112–182 350063 CurvePDF
CDLK4-160/16CDLKF4-160/16 CDLK41660 5.5 2.5–8 128–207 350065 CurvePDF
CDLK8-20/2CDLKF8-20/2 CDLK8260 1.5 7–14 18–27 350032 CurvePDF
CDLK8-30/3CDLKF8-30/3 CDLK8360 2.2 7–14 28–41 350037 CurvePDF
CDLK8-40/4CDLKF8-40/4 CDLK8460 3 7–14 38–55 350045 CurvePDF
CDLK8-50/5CDLKF8-50/5 CDLK8560 3 7–14 47–70 350047 CurvePDF
CDLK8-60/6CDLKF8-60/6 CDLK8660 4 7–14 57–85 350052 CurvePDF
CDLK8-80/8CDLKF8-80/8 CDLK8860 5.5 7–14 75–115 350072 CurvePDF
CDLK8-100/10CDLKF8-100/10 CDLK81060 7.5 7–14 95–145 350078 CurvePDF
CDLK8-120/12CDLKF8-120/12 CDLK81260 7.5 7–14 115–173 350080 CurvePDF
CDLK8-140/14CDLKF8-140/14 CDLK81460 11 7–14 135–202 3500135 CurvePDF
CDLK15-20/2CDLKF15-20/2 CDLK15260 3 10–26 24–36.5 350043 CurvePDF
CDLK15-30/3CDLKF15-30/3 CDLK15360 4 10–26 37–56 350054 CurvePDF
CDLK15-40/4CDLKF15-40/4 CDLK15460 5.5 10–26 49–75 350067 CurvePDF
CDLK15-50/5CDLKF15-50/5 CDLK15560 7.5 10–26 62–94 350077 CurvePDF
CDLK15-60/6CDLKF15-60/6 CDLK15660 11 10–26 76–113 3500132 CurvePDF
CDLK15-70/7CDLKF15-70/7 CDLK15760 11 10–26 90–134 3500134 CurvePDF
CDLK15-80/8CDLKF15-80/8 CDLK15860 11 10–26 103–154 3500136 CurvePDF
CDLK15-90/9CDLKF15-90/9 CDLK15960 15 10–26 118–174 3500143 CurvePDF
CDLK15-100/10CDLKF15-100/10 CDLK151060 15 10–26 131–193 3500145 CurvePDF
CDLK15-120/12CDLKF15-120/12 CDLK151260 18.5 10–26 158–232 3500155 CurvePDF
CDLK20-20/2CDLKF20-20/2 CDLK20260 4 12–34 21–38 350050 CurvePDF
CDLK20-30/3CDLKF20-30/3 CDLK20360 5.5 12–34 33–58 350065 CurvePDF
CDLK20-40/4CDLKF20-40/4 CDLK20460 7.5 12–34 45–78 350075 CurvePDF
CDLK20-50/5CDLKF20-50/5 CDLK20560 11 12–34 57–98 3500130 CurvePDF
CDLK20-60/6CDLKF20-60/6 CDLK20660 11 12–34 70–118 3500132 CurvePDF
CDLK20-70/7CDLKF20-70/7 CDLK20760 15 12–34 83–138 3500140 CurvePDF
CDLK20-80/8CDLKF20-80/8 CDLK20860 15 12–34 96–158 3500140 CurvePDF
CDLK20-100/10CDLKF20-100/10 CDLK201060 18.5 12–34 122–198 3500150 CurvePDF
CDLK32-10/1-1CDLKF32-10/1-1 CDLK32160 3 20–48 7–20 350065 CurvePDF
CDLK32-10/1CDLKF32-10/1 CDLK32160 4 20–48 14–26 350075 CurvePDF
CDLK32-20/2-2CDLKF32-20/2-2 CDLK32260 5.5 20–48 17–41 350085 CurvePDF
CDLK32-20/2CDLKF32-20/2 CDLK32260 7.5 20–48 27–52 350095 CurvePDF
CDLK32-30/3-2CDLKF32-30/3-2 CDLK32360 7.5 20–48 31–67 3500100 CurvePDF
CDLK32-30/3CDLKF32-30/3 CDLK32360 11 20–48 40–78 3500150 CurvePDF
CDLK32-40/4-2CDLKF32-40/4-2 CDLK32460 11 20–48 45–94 3500155 CurvePDF
CDLK32-40/4CDLKF32-40/4 CDLK32460 15 20–48 55–104 3500185 CurvePDF
CDLK32-50/5-2CDLKF32-50/5-2 CDLK32560 15 20–48 59–119 3500195 CurvePDF
CDLK32-50/5CDLKF32-50/5 CDLK32560 18.5 20–48 69–130 3500215 CurvePDF
CDLK32-60/6-2CDLKF32-60/6-2 CDLK32660 18.5 20–48 74–145 3500225 CurvePDF
CDLK32-60/6CDLKF32-60/6 CDLK32660 18.5 20–48 81–155 3500225 CurvePDF
CDLK32-70/7-2CDLKF32-70/7-2 CDLK32760 22 20–48 86–172 3500260 CurvePDF
CDLK32-70/7CDLKF32-70/7 CDLK32760 22 20–48 97–182 3500260 CurvePDF
CDLK32-80/8-2CDLKF32-80/8-2 CDLK32860 22 20–48 102–196 3500265 CurvePDF
CDLK32-80/8CDLKF32-80/8 CDLK32860 30 20–48 111–208 3500305 CurvePDF
CDLK32-90/9-2CDLKF32-90/9-2 CDLK32960 30 20–48 117–223 3500315 CurvePDF
CDLK32-90/9CDLKF32-90/9 CDLK32960 30 20–48 127–234 3500315 CurvePDF
CDLK32-100/10-2CDLKF32-100/10-2 CDLK321060 30 20–48 133–248 3500325 CurvePDF
CDLK42-10/1-1CDLKF42-10/1-1 CDLK42160 5.5 30–65 16–29 350083 CurvePDF
CDLK42-10/1CDLKF42-10/1 CDLK42160 7.5 30–65 22–34 350088 CurvePDF
CDLK42-20/2-2CDLKF42-20/2-2 CDLK42260 11 30–65 33–57 3500129 CurvePDF
CDLK42-20/2CDLKF42-20/2 CDLK42260 15 30–65 44–69 3500162 CurvePDF
CDLK42-30/3-2CDLKF42-30/3-2 CDLK42360 18.5 30–65 55–90 3500175 CurvePDF
CDLK42-30/3CDLKF42-30/3 CDLK42360 18.5 30–65 68–102 3500175 CurvePDF
CDLK42-40/4-2CDLKF42-40/4-2 CDLK42460 22 30–65 78–125 3500232 CurvePDF
CDLK42-40/4CDLKF42-40/4 CDLK42460 30 30–65 89–136 3500310 CurvePDF
CDLK42-50/5-2CDLKF42-50/5-2 CDLK42560 30 30–65 99–159 3500315 CurvePDF
CDLK42-50/5CDLKF42-50/5 CDLK42560 30 30–65 112–171 3500315 CurvePDF
CDLK42-60/6-2CDLKF42-60/6-2 CDLK42660 37 30–65 122–194 3500338 CurvePDF
CDLK42-60/6CDLKF42-60/6 CDLK42660 37 30–65 134–205 3500338 CurvePDF
CDLK42-70/7-2CDLKF42-70/7-2 CDLK42760 45 30–65 144–227 3500408 CurvePDF
CDLK42-70/7CDLKF42-70/7 CDLK42760 45 30–65 157–239 3500408 CurvePDF

Performance range

Every model of the CDLK / CDLKF (immersion) range on one chart: each line is the performance curve of one model. Click a line or dot to open that model with its full data.

  • CDLK1
  • CDLK2
  • CDLK3
  • CDLK4
  • CDLK8
  • CDLK15
  • CDLK20
  • CDLK32
  • CDLK42
0.51251020505102050100200Flow (m³/h)Head (m)CDLK1-20/2 · 50 HzCDLK1-30/3 · 50 HzCDLK1-40/4 · 50 HzCDLK1-50/5 · 50 HzCDLK1-60/6 · 50 HzCDLK1-70/7 · 50 HzCDLK1-80/8 · 50 HzCDLK1-90/9 · 50 HzCDLK1-100/10 · 50 HzCDLK1-110/11 · 50 HzCDLK1-120/12 · 50 HzCDLK1-130/13 · 50 HzCDLK1-150/15 · 50 HzCDLK1-170/17 · 50 HzCDLK1-190/19 · 50 HzCDLK1-210/21 · 50 HzCDLK1-230/23 · 50 HzCDLK1-250/25 · 50 HzCDLK1-270/27 · 50 HzCDLK1-300/30 · 50 HzCDLK1-330/33 · 50 HzCDLK1-360/36 · 50 HzCDLK2-20/2 · 50 HzCDLK2-30/3 · 50 HzCDLK2-40/4 · 50 HzCDLK2-50/5 · 50 HzCDLK2-60/6 · 50 HzCDLK2-70/7 · 50 HzCDLK2-90/9 · 50 HzCDLK2-110/11 · 50 HzCDLK2-130/13 · 50 HzCDLK2-150/15 · 50 HzCDLK2-180/18 · 50 HzCDLK2-220/22 · 50 HzCDLK2-260/26 · 50 HzCDLK3-20/2 · 50 HzCDLK3-30/3 · 50 HzCDLK3-40/4 · 50 HzCDLK3-50/5 · 50 HzCDLK3-60/6 · 50 HzCDLK3-70/7 · 50 HzCDLK3-80/8 · 50 HzCDLK3-90/9 · 50 HzCDLK3-100/10 · 50 HzCDLK3-110/11 · 50 HzCDLK3-120/12 · 50 HzCDLK3-130/13 · 50 HzCDLK3-150/15 · 50 HzCDLK3-170/17 · 50 HzCDLK3-190/19 · 50 HzCDLK3-210/21 · 50 HzCDLK3-230/23 · 50 HzCDLK3-250/25 · 50 HzCDLK3-270/27 · 50 HzCDLK3-290/29 · 50 HzCDLK3-310/31 · 50 HzCDLK3-330/33 · 50 HzCDLK3-360/36 · 50 HzCDLK4-20/2 · 50 HzCDLK4-30/3 · 50 HzCDLK4-40/4 · 50 HzCDLK4-50/5 · 50 HzCDLK4-60/6 · 50 HzCDLK4-70/7 · 50 HzCDLK4-80/8 · 50 HzCDLK4-100/10 · 50 HzCDLK4-120/12 · 50 HzCDLK4-140/14 · 50 HzCDLK4-160/16 · 50 HzCDLK4-190/19 · 50 HzCDLK4-220/22 · 50 HzCDLK8-20/2 · 50 HzCDLK8-30/3 · 50 HzCDLK8-40/4 · 50 HzCDLK8-50/5 · 50 HzCDLK8-60/6 · 50 HzCDLK8-80/8 · 50 HzCDLK8-100/10 · 50 HzCDLK8-120/12 · 50 HzCDLK8-140/14 · 50 HzCDLK8-160/16 · 50 HzCDLK8-180/18 · 50 HzCDLK8-200/20 · 50 HzCDLK15-20/2 · 50 HzCDLK15-30/3 · 50 HzCDLK15-40/4 · 50 HzCDLK15-50/5 · 50 HzCDLK15-60/6 · 50 HzCDLK15-70/7 · 50 HzCDLK15-80/8 · 50 HzCDLK15-90/9 · 50 HzCDLK15-100/10 · 50 HzCDLK15-120/12 · 50 HzCDLK15-140/14 · 50 HzCDLK15-170/17 · 50 HzCDLK20-20/2 · 50 HzCDLK20-30/3 · 50 HzCDLK20-40/4 · 50 HzCDLK20-50/5 · 50 HzCDLK20-60/6 · 50 HzCDLK20-70/7 · 50 HzCDLK20-80/8 · 50 HzCDLK20-100/10 · 50 HzCDLK20-120/12 · 50 HzCDLK20-140/14 · 50 HzCDLK20-170/17 · 50 HzCDLK32-10/1-1 · 50 HzCDLK32-10/1 · 50 HzCDLK32-20/2-2 · 50 HzCDLK32-20/2 · 50 HzCDLK32-30/3-2 · 50 HzCDLK32-30/3 · 50 HzCDLK32-40/4-2 · 50 HzCDLK32-40/4 · 50 HzCDLK32-50/5-2 · 50 HzCDLK32-50/5 · 50 HzCDLK32-60/6-2 · 50 HzCDLK32-60/6 · 50 HzCDLK32-70/7-2 · 50 HzCDLK32-70/7 · 50 HzCDLK32-80/8-2 · 50 HzCDLK32-80/8 · 50 HzCDLK32-90/9-2 · 50 HzCDLK32-90/9 · 50 HzCDLK32-100/10-2 · 50 HzCDLK32-100/10 · 50 HzCDLK32-110/11-2 · 50 HzCDLK32-110/11 · 50 HzCDLK32-120/12-2 · 50 HzCDLK32-120/12 · 50 HzCDLK32-130/13-2 · 50 HzCDLK32-130/13 · 50 HzCDLK32-140/14-2 · 50 HzCDLK32-140/14 · 50 HzCDLK42-10/1-1 · 50 HzCDLK42-10/1 · 50 HzCDLK42-20/2-2 · 50 HzCDLK42-20/2 · 50 HzCDLK42-30/3-2 · 50 HzCDLK42-30/3 · 50 HzCDLK42-40/4-2 · 50 HzCDLK42-40/4 · 50 HzCDLK42-50/5-2 · 50 HzCDLK42-50/5 · 50 HzCDLK42-60/6-2 · 50 HzCDLK42-60/6 · 50 HzCDLK42-70/7-2 · 50 HzCDLK42-70/7 · 50 HzCDLK42-80/8-2 · 50 HzCDLK42-80/8 · 50 HzCDLK42-90/9-2 · 50 HzCDLK42-90/9 · 50 HzCDLK42-100/10-2 · 50 HzCDLK42-100/10 · 50 HzCDLK42-110/11-2 · 50 HzCDLK42-110/11 · 50 HzCDLK42-120/12-2 · 50 HzCDLK42-120/12 · 50 HzCDLK42-130/13-2 · 50 HzCDLK1-20/2 · 60 HzCDLK1-30/3 · 60 HzCDLK1-40/4 · 60 HzCDLK1-50/5 · 60 HzCDLK1-60/6 · 60 HzCDLK1-70/7 · 60 HzCDLK1-80/8 · 60 HzCDLK1-90/9 · 60 HzCDLK1-100/10 · 60 HzCDLK1-110/11 · 60 HzCDLK1-120/12 · 60 HzCDLK1-130/13 · 60 HzCDLK1-150/15 · 60 HzCDLK1-170/17 · 60 HzCDLK1-190/19 · 60 HzCDLK1-210/21 · 60 HzCDLK1-230/23 · 60 HzCDLK1-250/25 · 60 HzCDLK2-20/2 · 60 HzCDLK2-30/3 · 60 HzCDLK2-40/4 · 60 HzCDLK2-50/5 · 60 HzCDLK2-60/6 · 60 HzCDLK2-70/7 · 60 HzCDLK2-90/9 · 60 HzCDLK2-110/11 · 60 HzCDLK2-130/13 · 60 HzCDLK2-150/15 · 60 HzCDLK2-180/18 · 60 HzCDLK3-20/2 · 60 HzCDLK3-30/3 · 60 HzCDLK3-40/4 · 60 HzCDLK3-50/5 · 60 HzCDLK3-60/6 · 60 HzCDLK3-70/7 · 60 HzCDLK3-80/8 · 60 HzCDLK3-90/9 · 60 HzCDLK3-100/10 · 60 HzCDLK3-110/11 · 60 HzCDLK3-120/12 · 60 HzCDLK3-130/13 · 60 HzCDLK3-150/15 · 60 HzCDLK3-170/17 · 60 HzCDLK3-190/19 · 60 HzCDLK3-210/21 · 60 HzCDLK3-230/23 · 60 HzCDLK3-250/25 · 60 HzCDLK4-20/2 · 60 HzCDLK4-30/3 · 60 HzCDLK4-40/4 · 60 HzCDLK4-50/5 · 60 HzCDLK4-60/6 · 60 HzCDLK4-70/7 · 60 HzCDLK4-80/8 · 60 HzCDLK4-100/10 · 60 HzCDLK4-120/12 · 60 HzCDLK4-140/14 · 60 HzCDLK4-160/16 · 60 HzCDLK8-20/2 · 60 HzCDLK8-30/3 · 60 HzCDLK8-40/4 · 60 HzCDLK8-50/5 · 60 HzCDLK8-60/6 · 60 HzCDLK8-80/8 · 60 HzCDLK8-100/10 · 60 HzCDLK8-120/12 · 60 HzCDLK8-140/14 · 60 HzCDLK15-20/2 · 60 HzCDLK15-30/3 · 60 HzCDLK15-40/4 · 60 HzCDLK15-50/5 · 60 HzCDLK15-60/6 · 60 HzCDLK15-70/7 · 60 HzCDLK15-80/8 · 60 HzCDLK15-90/9 · 60 HzCDLK15-100/10 · 60 HzCDLK15-120/12 · 60 HzCDLK20-20/2 · 60 HzCDLK20-30/3 · 60 HzCDLK20-40/4 · 60 HzCDLK20-50/5 · 60 HzCDLK20-60/6 · 60 HzCDLK20-70/7 · 60 HzCDLK20-80/8 · 60 HzCDLK20-100/10 · 60 HzCDLK32-10/1-1 · 60 HzCDLK32-10/1 · 60 HzCDLK32-20/2-2 · 60 HzCDLK32-20/2 · 60 HzCDLK32-30/3-2 · 60 HzCDLK32-30/3 · 60 HzCDLK32-40/4-2 · 60 HzCDLK32-40/4 · 60 HzCDLK32-50/5-2 · 60 HzCDLK32-50/5 · 60 HzCDLK32-60/6-2 · 60 HzCDLK32-60/6 · 60 HzCDLK32-70/7-2 · 60 HzCDLK32-70/7 · 60 HzCDLK32-80/8-2 · 60 HzCDLK32-80/8 · 60 HzCDLK32-90/9-2 · 60 HzCDLK32-90/9 · 60 HzCDLK32-100/10-2 · 60 HzCDLK42-10/1-1 · 60 HzCDLK42-10/1 · 60 HzCDLK42-20/2-2 · 60 HzCDLK42-20/2 · 60 HzCDLK42-30/3-2 · 60 HzCDLK42-30/3 · 60 HzCDLK42-40/4-2 · 60 HzCDLK42-40/4 · 60 HzCDLK42-50/5-2 · 60 HzCDLK42-50/5 · 60 HzCDLK42-60/6-2 · 60 HzCDLK42-60/6 · 60 HzCDLK42-70/7-2 · 60 HzCDLK42-70/7 · 60 Hz

Logarithmic scales. Published catalogue data for clean water; the correct model for your duty is confirmed by our engineers.

Dimensions & weight

Net weight and the main dimensions of each model, in millimetres, from the catalogue. Open a model for the labelled dimension drawing.

ModelHzWeight (kg)ABCDD1
CDLK1-20/25015453123330117148
CDLK1-30/35015471141330117148
CDLK1-40/45016489159330117148
CDLK1-50/55016507177330117148
CDLK1-60/65017525195330117148
CDLK1-70/75017543213330117148
CDLK1-80/85018561231330117148
CDLK1-90/95018579249330117148
CDLK1-100/105019597267330117148
CDLK1-110/115019615285330117148
CDLK1-120/125020661303358142170
CDLK1-130/135020679321358142170
CDLK1-150/155021715357358142170
CDLK1-170/175024751393358142170
CDLK1-190/195025787429358142170
CDLK1-210/215025823465358142170
CDLK1-230/235026859501358142170
CDLK1-250/255029950537413155190
CDLK1-270/275030986573413155190
CDLK1-300/3050311040627413155190
CDLK1-330/3350341094681413155190
CDLK1-360/3650351148735413155190
CDLK2-20/25015453123330117148
CDLK2-30/35015471141330117148
CDLK2-40/45016489159330117148
CDLK2-50/55017507177330117148
CDLK2-60/65019553195358142170
CDLK2-70/75019571213358142170
CDLK2-90/95022607249358142170
CDLK2-110/115024643285358142170
CDLK2-130/135026734321413155190
CDLK2-150/155028770357413155190
CDLK2-180/185032824411413155190
CDLK2-220/225036896483413155190
CDLK2-260/2650411033555478165197
CDLK3-20/25015453123330117148
CDLK3-30/35015471141330117148
CDLK3-40/45016489159330117148
CDLK3-50/55016507177330117148
CDLK3-60/65018525195330117148
CDLK3-70/75018543213330117148
CDLK3-80/85020589231358142170
CDLK3-90/95020607249358142170
CDLK3-100/105021625267358142170
CDLK3-110/115023643285358142170
CDLK3-120/125023661303358142170
CDLK3-130/135024679321358142170
CDLK3-150/155025715357358142170
CDLK3-170/175027806393413155190
CDLK3-190/195029842429413155190
CDLK3-210/215032878465413155190
CDLK3-230/235034914501413155190
CDLK3-250/255036950537413155190
CDLK3-270/275038986573413155190
CDLK3-290/2950401022609413155190
CDLK3-310/3150441123645478165197
CDLK3-330/3350461159681478165197
CDLK3-360/3650491213735478165197
CDLK4-20/25016480150330117148
CDLK4-30/35018507177330117148
CDLK4-40/45020562204358142170
CDLK4-50/55022589231358142170
CDLK4-60/65023616258358142170
CDLK4-70/75025698285413155190
CDLK4-80/85026725312413155190
CDLK4-100/105032779366413155190
CDLK4-120/125034833420413155190
CDLK4-140/145038952474478165197
CDLK4-160/1650401006528478165197
CDLK4-190/1950461097609488185230
CDLK4-220/2250491178690488185230
CDLK8-20/25025507141366142170
CDLK8-30/35027537171366142170
CDLK8-40/45031620201419155190
CDLK8-50/55035650231419155190
CDLK8-60/65036680261419155190
CDLK8-80/85042805321484165197
CDLK8-100/105050875381494185230
CDLK8-120/125054935441494185230
CDLK8-140/1450641050501549210260
CDLK8-160/1650661110561549210260
CDLK8-180/1850791170621549210260
CDLK8-200/2050811230681549210260
CDLK15-20/25037590171419155190
CDLK15-30/35047700216484165197
CDLK15-40/45052755261494185230
CDLK15-50/55067800306494185230
CDLK15-60/65072900351549210260
CDLK15-70/75077945396549210260
CDLK15-80/85078990441549210260
CDLK15-90/950791035486549210260
CDLK15-100/10501351231531700255330
CDLK15-120/12501401321621700255330
CDLK15-140/14501451411711700255330
CDLK15-170/17501641546846700255330
CDLK20-20/25035590171419155190
CDLK20-30/35050710216494185230
CDLK20-40/45065810261549210260
CDLK20-50/55067855306549210260
CDLK20-60/65074900351549210260
CDLK20-70/75076945396549210260
CDLK20-80/8501301141441700255330
CDLK20-100/10501351231531700255330
CDLK20-120/12501501321621700255330
CDLK20-140/14501551411711700255330
CDLK20-170/17501801596846750255330
CDLK32-10/1-15045628193435155190
CDLK32-10/15047628193435155190
CDLK32-20/2-25054753263490165197
CDLK32-20/25060763263500185230
CDLK32-30/3-25070888333555210260
CDLK32-30/35070888333555210260
CDLK32-40/4-25078958403555210260
CDLK32-40/45078958403555210260
CDLK32-50/5-2501501191473718255330
CDLK32-50/5501501191473718255330
CDLK32-60/6-2501521261543718255330
CDLK32-60/6501521261543718255330
CDLK32-70/7-2501651331613718255330
CDLK32-70/7501651331613718255330
CDLK32-80/8-2501671401683718255330
CDLK32-80/8501671401683718255330
CDLK32-90/9-2501851521753768255330
CDLK32-90/9501851521753768255330
CDLK32-100/10-2501871591823768255330
CDLK32-100/10501871591823768255330
CDLK32-110/11-2502271686893793285360
CDLK32-110/11502271686893793285360
CDLK32-120/12-2502311756963793285360
CDLK32-120/12502311756963793285360
CDLK32-130/13-25029319011033868310400
CDLK32-130/135029319011033868310400
CDLK32-140/14-25029719711103868310400
CDLK32-140/145029719711103868310400
CDLK42-10/1-15055702198504165197
CDLK42-10/15061712198514185230
CDLK42-20/2-25074847278569210260
CDLK42-20/25080847278569210260
CDLK42-30/3-2501501090358732255330
CDLK42-30/3501501090358732255330
CDLK42-40/4-2501631170438732255330
CDLK42-40/4501631170438732255330
CDLK42-50/5-2501851300518782255330
CDLK42-50/5501851300518782255330
CDLK42-60/6-2502261405598807285360
CDLK42-60/6502261405598807285360
CDLK42-70/7-2502871560678882310400
CDLK42-70/7502871560678882310400
CDLK42-80/8-2502911640758882310400
CDLK42-80/8502911640758882310400
CDLK42-90/9-2502951720838882310400
CDLK42-90/9503161720838882310400
CDLK42-100/10-2503201800918882310400
CDLK42-100/10503201800918882310400
CDLK42-110/11-2503881915998917345450
CDLK42-110/11503881915998917345450
CDLK42-120/12-25039219951078917345450
CDLK42-120/125039219951078917345450
CDLK42-130/13-25039620751158917345450
CDLK1-20/26015453123330117148
CDLK1-30/36015471141330117148
CDLK1-40/46015489159330117148
CDLK1-50/56016507177330117148
CDLK1-60/66016525195330117148
CDLK1-70/76019571213358142170
CDLK1-80/86019589231358142170
CDLK1-90/96020607249358142170
CDLK1-100/106022625267358142170
CDLK1-110/116022643285358142170
CDLK1-120/126024661303358142170
CDLK1-130/136024679321358142170
CDLK1-150/156029770357413155190
CDLK1-170/176029806393413155190
CDLK1-190/196033842429413155190
CDLK1-210/216033878465413155190
CDLK1-230/236033914501413155190
CDLK1-250/2560401015537478165197
CDLK2-20/26015453123330117148
CDLK2-30/36018499141358142170
CDLK2-40/46020517159358142170
CDLK2-50/56020535177358142170
CDLK2-60/66022553195358142170
CDLK2-70/76027626213413155190
CDLK2-90/96031662249413155190
CDLK2-110/116031698285413155190
CDLK2-130/136037799321478165197
CDLK2-150/156037835357478165197
CDLK2-180/186042899411488185230
CDLK3-20/26015453123330117148
CDLK3-30/36015471141330117148
CDLK3-40/46015489159330117148
CDLK3-50/56019535177358142170
CDLK3-60/66021553195358142170
CDLK3-70/76022571213358142170
CDLK3-80/86022589231358142170
CDLK3-90/96027662249413155190
CDLK3-100/106028680267413155190
CDLK3-110/116028698285413155190
CDLK3-120/126031716303413155190
CDLK3-130/136031734321413155190
CDLK3-150/156032770357413155190
CDLK3-170/176032806393413155190
CDLK3-190/196037907429478165197
CDLK3-210/216038943465478165197
CDLK3-230/236038979501478165197
CDLK3-250/2560441025537488185230
CDLK4-20/26015508150358142170
CDLK4-30/36018535177358142170
CDLK4-40/46023617204413155190
CDLK4-50/56027644231413155190
CDLK4-60/66027671258413155190
CDLK4-70/76033763285478165197
CDLK4-80/86033790312478165197
CDLK4-100/106038854366488185230
CDLK4-120/126038908420488185230
CDLK4-140/1460631017474543210260
CDLK4-160/1660651071528543210260
CDLK8-20/26032560141419155190
CDLK8-30/36037590171419155190
CDLK8-40/46045685201484165197
CDLK8-50/56047715231484165197
CDLK8-60/66052755261494185230
CDLK8-80/86072870321549210260
CDLK8-100/106078930381549210260
CDLK8-120/126080990441549210260
CDLK8-140/14601351201501700255330
CDLK15-20/26043655171484165197
CDLK15-30/36054710216494185230
CDLK15-40/46067810261549210260
CDLK15-50/56077855306549210260
CDLK15-60/6601321051351700255330
CDLK15-70/7601341096396700255330
CDLK15-80/8601361141441700255330
CDLK15-90/9601431186486700255330
CDLK15-100/10601451231531700255330
CDLK15-120/12601551371621750255330
CDLK20-20/26050665171494185230
CDLK20-30/36065765216549210260
CDLK20-40/46075810261549210260
CDLK20-50/5601301006306700255330
CDLK20-60/6601321051351700255330
CDLK20-70/7601401096396700255330
CDLK20-80/8601401141441700255330
CDLK20-100/10601501281531750255330
CDLK32-10/1-16065683193490165197
CDLK32-10/16075693193500185230
CDLK32-20/2-26085818263555210260
CDLK32-20/26095818263555210260
CDLK32-30/3-260100888333555210260
CDLK32-30/3601501051333718255330
CDLK32-40/4-2601551121403718255330
CDLK32-40/4601851121403718255330
CDLK32-50/5-2601951191473718255330
CDLK32-50/5602151241473768255330
CDLK32-60/6-2602251311543768255330
CDLK32-60/6602251311543768255330
CDLK32-70/7-2602601406613793285360
CDLK32-70/7602601406613793285360
CDLK32-80/8-2602651476683793285360
CDLK32-80/8603051551683868310400
CDLK32-90/9-2603151621753868310400
CDLK32-90/9603151621753868310400
CDLK32-100/10-2603251691823868310400
CDLK42-10/1-16083767198569210260
CDLK42-10/16088767198569210260
CDLK42-20/2-2601291010278732255330
CDLK42-20/2601621010278732255330
CDLK42-30/3-2601751140358782255330
CDLK42-30/3601751140358782255330
CDLK42-40/4-2602321245438807285360
CDLK42-40/4603101320438882310400
CDLK42-50/5-2603151400518882310400
CDLK42-50/5603151400518882310400
CDLK42-60/6-2603381480598882310400
CDLK42-60/6603381480598882310400
CDLK42-70/7-2604081595678917345450
CDLK42-70/7604081595678917345450

Spare parts for CDLK / CDLKF (immersion)

Parts list of the series with the material of each part. To order, send the model code and the part you need.

Parts list (PDF) Request spare parts quote
No.PartMaterialStandardApplies to
1Motor—— All sizes
2CouplingCarbon steel— All sizes
3Pump head (CDLK)Cast ironASTM25B All sizes
3Pump head (CDLKF)Stainless steelAISI304 All sizes
4Coupling guardStainless steelAISI304 All sizes
5Mechanical seal—— All sizes
6StrapsStainless steelAISI304 All sizes
7ShaftStainless steelAISI316 CDLK1, CDLK2, CDLK3, CDLK4, CDLK8, CDLK15 +1
7ShaftStainless steelAISI316 / AISI304 / AISI431 CDLK32, CDLK42
8InducerStainless steelAISI304 All sizes
9Suction headStainless steelAISI304 All sizes
10ImpellerStainless steelAISI304 All sizes
11DiffuserStainless steelAISI304 All sizes
12Impeller sleeveStainless steelAISI304 CDLK1, CDLK2, CDLK3, CDLK4, CDLK8, CDLK15 +1
13BearingTungsten carbide— All sizes
14Support diffuserStainless steelAISI304 All sizes
15StrainerStainless steelAISI304 All sizes
16Crossover flangeCast ironASTM25B CDLK32, CDLK42
17Bottom bearingTungsten carbide— CDLK32, CDLK42

Technical data

Liquid temperature

  • -15 to +70 °C (normal type); warm-water type -15 to +105 °C

Ambient conditions

  • Up to 40 °C and 1000 m altitude without motor derating

Motor

  • Fully sealed, air-cooled standard 2-pole motor, IP55, insulation class F; single-phase motors 0.37–2.2 kW available

Supply voltage

  • 1 x 220-230 / 240 V
  • 3 x 200 / 346 V
  • 3 x 220-240 / 380-415 V
  • 3 x 220-255 / 380-440 V
  • 3 x 200-230 / 346-440 V
  • 3 x 220-277 / 380-480 V

Typical applications

  • Cooling liquid, lubricating liquid and condensate of machine tools
  • Industrial cleaning equipment
  • Lathes, grinding machines, processing centres, cooling devices
  • Filtering systems

Pumped liquid

  • Thin, clean, non-explosive liquid without solid grains or fibres: water, cooling-water solution, cutting and lubricating liquid

Data basis

  • 50 Hz, 2900 rpm, air-free water 20 °C, kinematic viscosity 1 mm²/s; curve tolerance ISO 9906:2012 Grade 3B
  • 60 Hz, 3500 rpm, air-free water 20 °C, kinematic viscosity 1 mm²/s; curve tolerance ISO 9906:2012 Grade 3B

Performance values are taken from the published CNP catalogue data. Our engineers confirm the final selection for your liquid, temperature, supply and site before quoting.

Other vertical multistage pumps

CDL / CDLF

Vertical multistage centrifugal pump

  • Flow 0.4–240 m³/h
  • Head up to 305 m
  • 0.37–110 kW
View series

CDM / CDMF

Vertical multistage centrifugal pump

  • Flow 0.5–240 m³/h
  • Head up to 312 m
  • 0.37–110 kW
View series

Need a pump or a spare part?

Send us the flow and head you need, or the model code and nameplate details of the pump you are repairing. Our team replies with a quotation.

Request a Quotation +92 345 9547419
