Hydraulic diaphragm

JMX series

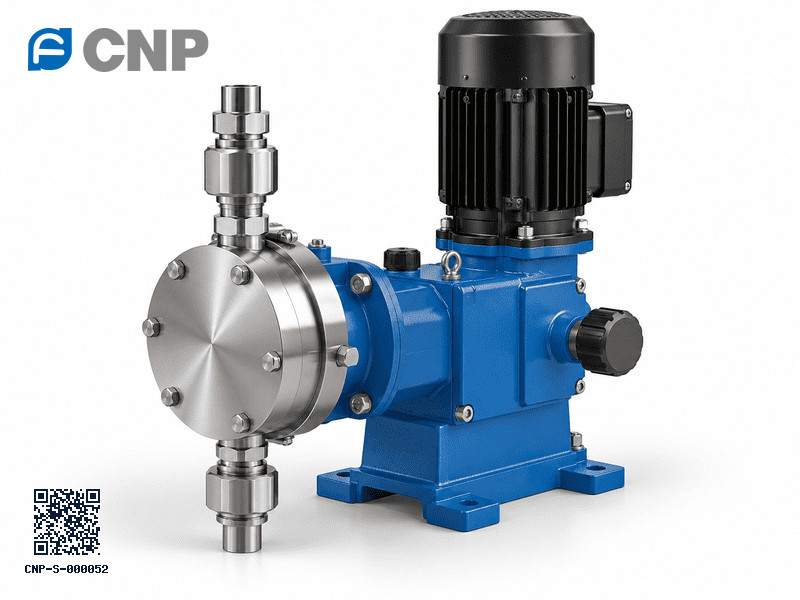

Hydraulic diaphragm metering pump, up to 1,600 L/h at up to 282 bar

JMX series: hydraulic diaphragm metering pumps for accurate, repeatable dosing of chemicals and additives. 74 models from 28 to 1600 L/h, with pressure up to 282 bar. Pump-head and diaphragm materials are chosen for your liquid; send us the chemical, concentration and temperature and we will confirm the right head.

  • Hard, compact design with better sealing than plunger-type pumps
  • Variable eccentric adjustment for smooth flow pulsation
  • Refill valve for balanced hydraulic oil replenishment; adjustable safety valve protects hydraulic parts from damage
  • Double diaphragm with rupture alarm recommended for corrosive, flammable or explosive media
  • Power 380 V three-phase, 220 V single-phase or three-phase, 50/60 Hz; variable-frequency control (4–20 mA) or on/off motor control
View 74 models
JMX seriesCNP-S-000052
Flow
28–1600 L/h
Pressure
up to 282 bar
Models
74

Sizes

The 74 models of the JMX series range grouped by motor size. Open the Models tab for every model with its performance data.

Motor sizeFlow rangePressureMotorModels
750 W motor 43–1100 L/h 2–95 bar 750 W 18
1100 W motor 40–1100 L/h 3–139 bar 1100 W 18
1500 W motor 28–1600 L/h 5–282 bar 1500 W 38

Models

Filter by duty point, mains frequency or size. Click a model for its performance curve and data.

Model table (PDF)
ModelSeriesFlow L/hPressure barStrokes/minMotor WPlunger mm
JMX1600/0.5JMX 16005 1841500100 Details
JMX1450/0.5JMX 14505 184150095 Details
JMX1300/0.5JMX 13005 184150090 Details
JMX1200/0.9JMX 12009 184150085 Details
JMX1100/0.5JMX 11005 1301500100 Details
JMX1100/0.3JMX 11003 1301100100 Details
JMX1100/0.2JMX 11002 130750100 Details
JMX1050/1.0JMX 105010 184150080 Details
JMX1000/0.7JMX 10007 130150095 Details
JMX1000/0.5JMX 10005 130110095 Details
JMX1000/0.3JMX 10003 13075095 Details
JMX950/1.1JMX 95011 184150075 Details
JMX940/0.9JMX 9409 130150090 Details
JMX940/0.7JMX 9407 130110090 Details
JMX940/0.5JMX 9405 13075090 Details
JMX840/1.1JMX 84011 130150085 Details
JMX840/0.7JMX 8407 130110085 Details
JMX840/0.5JMX 8405 13075085 Details
JMX830/1.3JMX 83013 184150070 Details
JMX740/1.2JMX 74012 130150080 Details
JMX740/0.9JMX 7409 130110080 Details
JMX740/0.6JMX 7406 13075080 Details
JMX720/1.5JMX 72015 184150065 Details
JMX650/1.4JMX 65014 130150075 Details
JMX650/1.0JMX 65010 130110075 Details
JMX650/0.7JMX 6507 13075075 Details
JMX610/1.7JMX 61017 184150060 Details
JMX570/1.6JMX 57016 130150070 Details
JMX570/1.1JMX 57011 130110070 Details
JMX570/0.8JMX 5708 13075070 Details
JMX530/2.0JMX 53020 184150056 Details
JMX490/1.8JMX 49018 130150065 Details
JMX490/1.3JMX 49013 130110065 Details
JMX490/0.9JMX 4909 13075065 Details
JMX420/2.5JMX 42025 184150050 Details
JMX410/2.1JMX 41021 130150060 Details
JMX410/1.6JMX 41016 130110060 Details
JMX410/1.1JMX 41011 13075060 Details
JMX360/2.4JMX 36024 130150056 Details
JMX360/1.8JMX 36018 130110056 Details
JMX360/1.2JMX 36012 13075056 Details
JMX340/3.1JMX 34031 184150045 Details
JMX280/3.1JMX 28031 130150050 Details
JMX280/2.2JMX 28022 130110050 Details
JMX280/1.5JMX 28015 13075050 Details
JMX270/4.0JMX 27040 184150040 Details
JMX230/3.8JMX 23038 130150045 Details
JMX230/2.8JMX 23028 130110045 Details
JMX230/1.9JMX 23019 13075045 Details
JMX200/5.1JMX 20051 184150035 Details
JMX180/4.8JMX 18048 130150040 Details
JMX180/3.5JMX 18035 130110040 Details
JMX180/2.4JMX 18024 13075040 Details
JMX145/7.0JMX 14570 184150030 Details
JMX140/6.2JMX 14062 130150035 Details
JMX140/4.6JMX 14046 130110035 Details
JMX140/3.1JMX 14031 13075035 Details
JMX100/10.1JMX 100101 184150025 Details
JMX100/8.5JMX 10085 130150030 Details
JMX100/6.2JMX 10062 130110030 Details
JMX100/4.2JMX 10042 13075030 Details
JMX70/13.1JMX 70131 184150022 Details
JMX70/12.0JMX 70120 130150025 Details
JMX70/8.8JMX 7088 130110025 Details
JMX70/6.0JMX 7060 13075025 Details
JMX55/15.9JMX 56159 184150020 Details
JMX55/8.0JMX 5580 13075022 Details
JMX55/11.7JMX 53117 130110022 Details
JMX55/15.8JMX 51158 130150022 Details
JMX45/19.6JMX 44196 184150018 Details
JMX45/9.5JMX 4395 13075020 Details
JMX45/13.9JMX 40139 130110020 Details
JMX45/19.0JMX 39190 130150020 Details
JMX30/28.2JMX 28282 184150015 Details

Performance range

Every model of the JMX series range by flow and pressure. Click a line or dot to open that model with its full data.

50100200500100025102050100200Flow (L/h)Pressure (bar)JMX1600/0.5JMX1450/0.5JMX1300/0.5JMX1200/0.9JMX1100/0.5JMX1100/0.3JMX1100/0.2JMX1050/1.0JMX1000/0.7JMX1000/0.5JMX1000/0.3JMX950/1.1JMX940/0.9JMX940/0.7JMX940/0.5JMX840/1.1JMX840/0.7JMX840/0.5JMX830/1.3JMX740/1.2JMX740/0.9JMX740/0.6JMX720/1.5JMX650/1.4JMX650/1.0JMX650/0.7JMX610/1.7JMX570/1.6JMX570/1.1JMX570/0.8JMX530/2.0JMX490/1.8JMX490/1.3JMX490/0.9JMX420/2.5JMX410/2.1JMX410/1.6JMX410/1.1JMX360/2.4JMX360/1.8JMX360/1.2JMX340/3.1JMX280/3.1JMX280/2.2JMX280/1.5JMX270/4.0JMX230/3.8JMX230/2.8JMX230/1.9JMX200/5.1JMX180/4.8JMX180/3.5JMX180/2.4JMX145/7.0JMX140/6.2JMX140/4.6JMX140/3.1JMX100/10.1JMX100/8.5JMX100/6.2JMX100/4.2JMX70/13.1JMX70/12.0JMX70/8.8JMX70/6.0JMX55/15.9JMX55/8.0JMX55/11.7JMX55/15.8JMX45/19.6JMX45/9.5JMX45/13.9JMX45/19.0JMX30/28.2

Logarithmic scales. Published catalogue data for clean water; the correct model for your duty is confirmed by our engineers.

Spare parts for JMX series

Typical wear and service parts for this type of pump. The exact part, material and part number depend on the model, so send us the model code (or a nameplate photo) and we confirm and quote the right one.

Request spare parts quote
PartWhat it does
DiaphragmThe flexing membrane that moves the liquid; replaced at the service interval
Check valves (suction and discharge)Valve balls, seats and springs that give one-way flow
Pump headLiquid end in the material suited to the chemical
Gaskets and O-ringsSeal the head, valves and connections
Hydraulic oil and relief / bleed valveHydraulic diaphragm types only: transmits the stroke and protects against over-pressure
Stroke adjuster and motorSets the flow rate and drives the pump

Generic list for this pump type; it is not a part-number catalogue for the series. Our team confirms the correct part for your model before quoting.

Specification & options

Key parameters

  • Max flow rate1600 L/h
  • Max pressure19 MPa (190 bar)
  • Accuracy±1 % (10–100 % of flow range)
  • Max suction lift2 m water column
  • Medium temperature−10 to +100 °C
  • Max ambient+40 °C, up to 1000 m

Fluid end and materials

Fluid endPump head / valve bodyValve seatValve ballDiaphragmPlungerTamping
304SS304SS316SS304SS / ZirconiaPTFE304 + CeramicFluororubber
316SS316SS316SS304SS / ZirconiaPTFE304 + CeramicFluororubber
PVCPVCPVDFZirconiaPTFE304 + CeramicFluororubber
PVDFPVDFPVDFZirconiaPTFE304 + CeramicFluororubber

Technical data

Typical applications

  • Environmental protection
  • petrochemical
  • chemical
  • oil refining
  • metallurgy
  • medicine
  • food
  • water treatment

Data basis

  • CNP metering pump selection manual, printed pp. 41–44

Performance values are taken from the published CNP catalogue data. Our engineers confirm the final selection for your liquid, temperature, supply and site before quoting.
