Plunger

JWL series

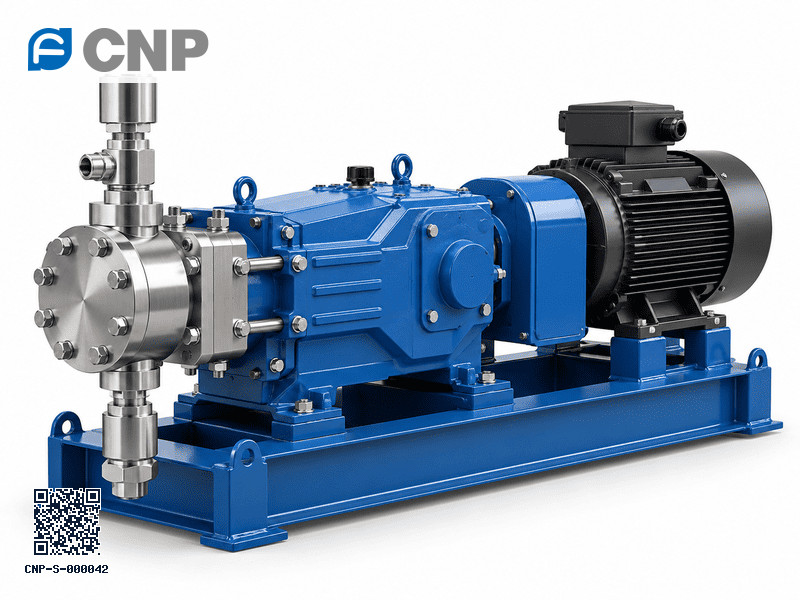

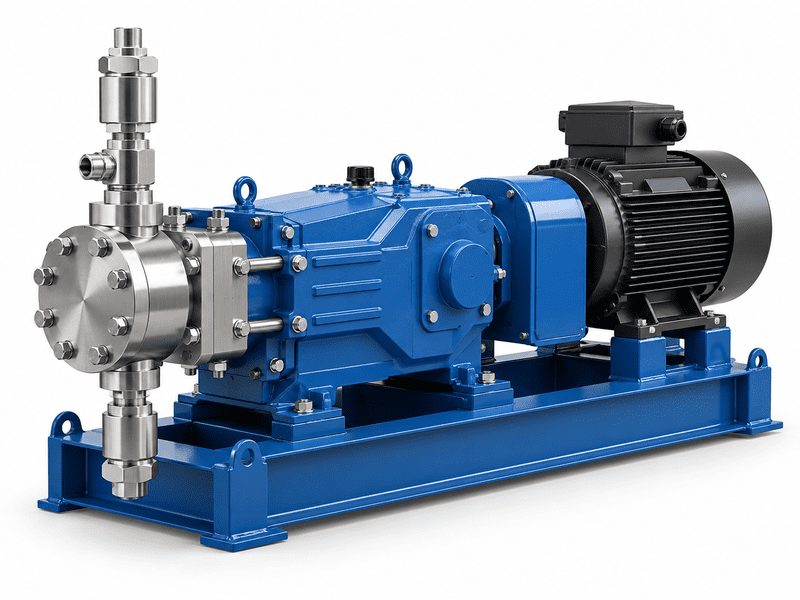

Plunger metering pump, up to 240 L/h at up to 130 bar

JWL series: plunger metering pumps for accurate, repeatable dosing of chemicals and additives. 24 models from 13 to 240 L/h, with pressure up to 130 bar. Pump-head and diaphragm materials are chosen for your liquid; send us the chemical, concentration and temperature and we will confirm the right head.

Hard, compact design with small pump head; plunger contacts the medium directly, with low transmission loss at high pressure
Variable eccentric adjustment for smooth flow pulsation
Multi-channel combination seal of graphite fibre + GSJ for wear and corrosion resistance and long packing life
Not for corrosive pulp or flammable, explosive, dangerous chemicals
Power 380 V three-phase, 220 V single-phase or three-phase, 50/60 Hz; variable-frequency control (4–20 mA), on/off motor control, or electric stroke controller

View 24 models

Flow: 13–240 L/h
Pressure: up to 130 bar
Models: 24

Sizes

The 24 models of the JWL series range grouped by type. Open the Models tab for every model with its performance data.

Type	Flow range	Pressure	Motor	Models
JWL	13–240 L/h	6–130 bar	—	24

Models

Filter by duty point, mains frequency or size. Click a model for its performance curve and data.

Model table (PDF)

Model	Series	Flow L/h	Pressure bar	Strokes/min	Motor W	Plunger mm
JWL240/0.8	JWL	240	8	144	—	60	Details
JWL240/0.6	JWL	240	6	144	—	60	Details
JWL210/0.9	JWL	210	9	144	—	56	Details
JWL210/0.7	JWL	210	7	144	—	56	Details
JWL160/1.1	JWL	160	11	144	—	50	Details
JWL160/0.9	JWL	160	9	144	—	50	Details
JWL130/1.4	JWL	130	14	144	—	45	Details
JWL130/1.2	JWL	130	12	144	—	45	Details
JWL100/1.8	JWL	100	18	144	—	40	Details
JWL100/1.5	JWL	100	15	144	—	40	Details
JWL80/2.4	JWL	80	24	144	—	35	Details
JWL80/2.0	JWL	80	20	144	—	35	Details
JWL60/3.0	JWL	60	30	144	—	30	Details
JWL60/2.8	JWL	60	28	144	—	30	Details
JWL40/4.5	JWL	40	45	144	—	25	Details
JWL40/4.0	JWL	40	40	144	—	25	Details
JWL30/6.0	JWL	30	60	144	—	22	Details
JWL30/5.0	JWL	30	50	144	—	22	Details
JWL25/7.0	JWL	25	70	144	—	20	Details
JWL25/6.0	JWL	25	60	144	—	20	Details
JWL20/9.0	JWL	20	90	144	—	18	Details
JWL20/7.5	JWL	20	75	144	—	18	Details
JWL13/13.0	JWL	13	130	144	—	15	Details
JWL13/11.0	JWL	13	110	144	—	15	Details

Spare parts for JWL series

Typical wear and service parts for this type of pump. The exact part, material and part number depend on the model, so send us the model code (or a nameplate photo) and we confirm and quote the right one.

Request spare parts quote

Part	What it does
Plunger	Displaces the liquid; wears with abrasive or crystallising liquids
Packing / seals	Seal the plunger; the most common service item
Check valves and seats	Suction and discharge valves that give one-way flow
Pump head	Liquid end in the material suited to the liquid
Oil seals and gearbox oil	Lubricate the crank and worm gear; change at the interval in the manual
Relief valve	Protects the pump and line against over-pressure

Generic list for this pump type; it is not a part-number catalogue for the series. Our team confirms the correct part for your model before quoting.

Specification & options

Key parameters

Max flow rate240 L/h
Max pressure13 MPa (130 bar)
Accuracy±1 % (10–100 % of flow range)
Max suction lift2.5 m water column
Medium temperature−10 to +100 °C
Max ambient+40 °C

Fluid end and materials

Fluid end	Pump head	Valve body / seat	Valve ball	Plunger	Tamping
304SS	304SS	304SS	304SS / Zirconia	304 + Ceramic	Graphite fibre + GSJ
316SS	316SS	316SS	304SS / Zirconia	316 + Ceramic	Graphite fibre + GSJ

Technical data

Typical applications

Chemical
petrochemical
electric power and metallurgy
especially high viscosity
high pressure and high temperature duties

Data basis

CNP metering pump selection manual, printed pp. 57–60

Performance values are taken from the published CNP catalogue data. Our engineers confirm the final selection for your liquid, temperature, supply and site before quoting.
