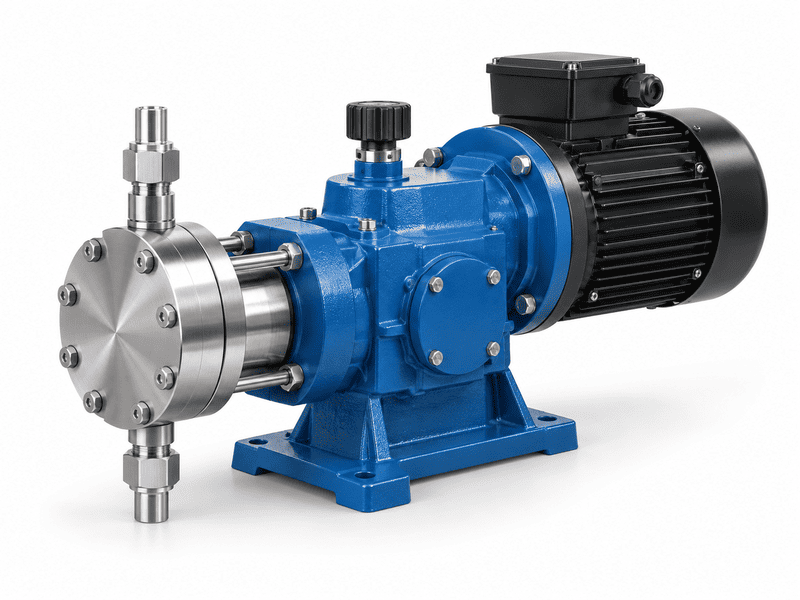

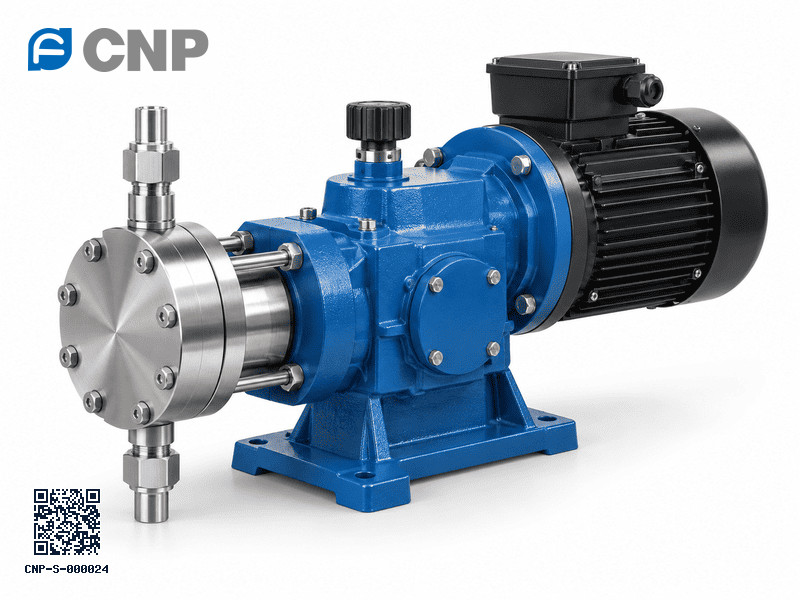

Hydraulic diaphragm

RZ series

Hydraulic diaphragm metering pump, up to 3,065 L/h at up to 90 bar

RZ series: hydraulic diaphragm metering pumps for accurate, repeatable dosing of chemicals and additives. 20 models from 272 to 3065 L/h, with pressure up to 90 bar. Pump-head and diaphragm materials are chosen for your liquid; send us the chemical, concentration and temperature and we will confirm the right head.

Worm-gear drive with eccentric parts; one-way valve structure with parallel connection, serviceable without removing the pipeline
Hydraulic drive diaphragm; built-in adjustable safety valve; clasp flange interface easy to install
Flow adjustment when stopped or running; pressure-type double diaphragm detection (local/remote) and alarm
Power 380 V three-phase, 220 V single-phase or three-phase, 50/60 Hz; variable-frequency control with 4–20 mA signal, or on/off motor control

View 20 models

Flow: 272–3065 L/h
Pressure: up to 90 bar
Models: 20

Sizes

The 20 models of the RZ series range grouped by motor size. Open the Models tab for every model with its performance data.

Motor size	Flow range	Pressure	Motor	Models
2200 W motor	280–3065 L/h	6–65 bar	2200 W	10
3000 W motor	272–3030 L/h	8–90 bar	3000 W	10

Models

Filter by duty point, mains frequency or size. Click a model for its performance curve and data.

Model table (PDF)

Model	Series	Flow L/h	Pressure bar	Strokes/min	Motor W	Plunger mm
RZ3000/3.0kW	RZ	3030	8	128	3000	—	Details
RZ3000/2.2kW	RZ	3065	6	128	2200	—	Details
RZ2700/3.0kW	RZ	2720	9	128	3000	—	Details
RZ2700/2.2kW	RZ	2770	7	128	2200	—	Details
RZ1800/3.0kW	RZ	1790	15	85	3000	—	Details
RZ1800/2.2kW	RZ	1810	11	85	2200	—	Details
RZ2100/3.0kW	RZ	2130	12	128	3000	—	Details
RZ2100/2.2kW	RZ	2170	9	128	2200	—	Details
RZ1400/3.0kW	RZ	1385	19	85	3000	—	Details
RZ1400/2.2kW	RZ	1405	14	85	2200	—	Details
RZ1100/3.0kW	RZ	1120	23	85	3000	—	Details
RZ1100/2.2kW	RZ	1135	17	85	2200	—	Details
RZ800/3.0kW	RZ	805	30	128	3000	—	Details
RZ800/2.2kW	RZ	815	23	128	2200	—	Details
RZ500/3.0kW	RZ	520	48	85	3000	—	Details
RZ500/2.2kW	RZ	527	35	85	2200	—	Details
RZ400/3.0kW	RZ	419	65	128	3000	—	Details
RZ400/2.2kW	RZ	425	45	128	2200	—	Details
RZ270/3.0kW	RZ	272	90	85	3000	—	Details
RZ270/2.2kW	RZ	280	65	85	2200	—	Details

Dimensions & weight

Net weight and the main dimensions of each model, in millimetres, from the catalogue. Open a model for the labelled dimension drawing.

Model	Weight (kg)	Plunger
RZ3000/3.0kW	—	95
RZ3000/2.2kW	—	95
RZ2700/3.0kW	—	90
RZ2700/2.2kW	—	90
RZ1800/3.0kW	—	90
RZ1800/2.2kW	—	90
RZ2100/3.0kW	—	80
RZ2100/2.2kW	—	80
RZ1400/3.0kW	—	80
RZ1400/2.2kW	—	80
RZ1100/3.0kW	—	72
RZ1100/2.2kW	—	72
RZ800/3.0kW	—	50
RZ800/2.2kW	—	50
RZ500/3.0kW	—	50
RZ500/2.2kW	—	50
RZ400/3.0kW	—	37
RZ400/2.2kW	—	37
RZ270/3.0kW	—	37
RZ270/2.2kW	—	37

Spare parts for RZ series

Typical wear and service parts for this type of pump. The exact part, material and part number depend on the model, so send us the model code (or a nameplate photo) and we confirm and quote the right one.

Request spare parts quote

Part	What it does
Diaphragm	The flexing membrane that moves the liquid; replaced at the service interval
Check valves (suction and discharge)	Valve balls, seats and springs that give one-way flow
Pump head	Liquid end in the material suited to the chemical
Gaskets and O-rings	Seal the head, valves and connections
Hydraulic oil and relief / bleed valve	Hydraulic diaphragm types only: transmits the stroke and protects against over-pressure
Stroke adjuster and motor	Sets the flow rate and drives the pump

Generic list for this pump type; it is not a part-number catalogue for the series. Our team confirms the correct part for your model before quoting.

Specification & options

Key parameters

Max flow rate3065 L/h
Max pressure90 bar
Accuracy±1 % (10–100 % of flow range)
Max suction lift1.5 m water column

Fluid end and materials

Fluid end	Pump head	Valve body	Valve seat	Valve ball	Diaphragm	Seal ring
PVC	PVC	PVC	PVDF	Zirconia	PTFE	FPM/EPDM
PVDF	PVDF	PVDF	PVDF	Zirconia	PTFE	FPM/EPDM
316SS	316SS	316SS	316SS	Zirconia	PTFE	FPM/4F

Technical data

Typical applications

Environmental protection
petrochemical
chemical
oil refining
electricity
metallurgy
medicine
food

Data basis

CNP metering pump selection manual, printed pp. 33–36

Performance values are taken from the published CNP catalogue data. Our engineers confirm the final selection for your liquid, temperature, supply and site before quoting.
